Product Overview

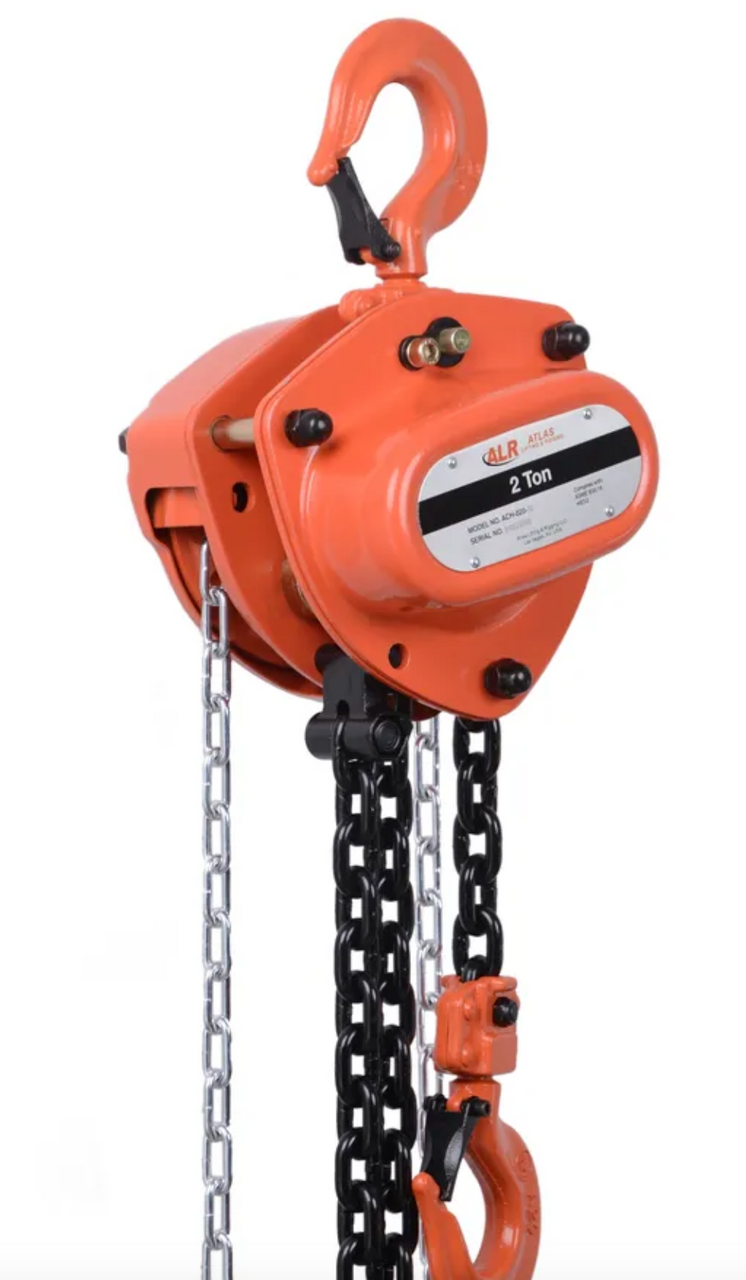

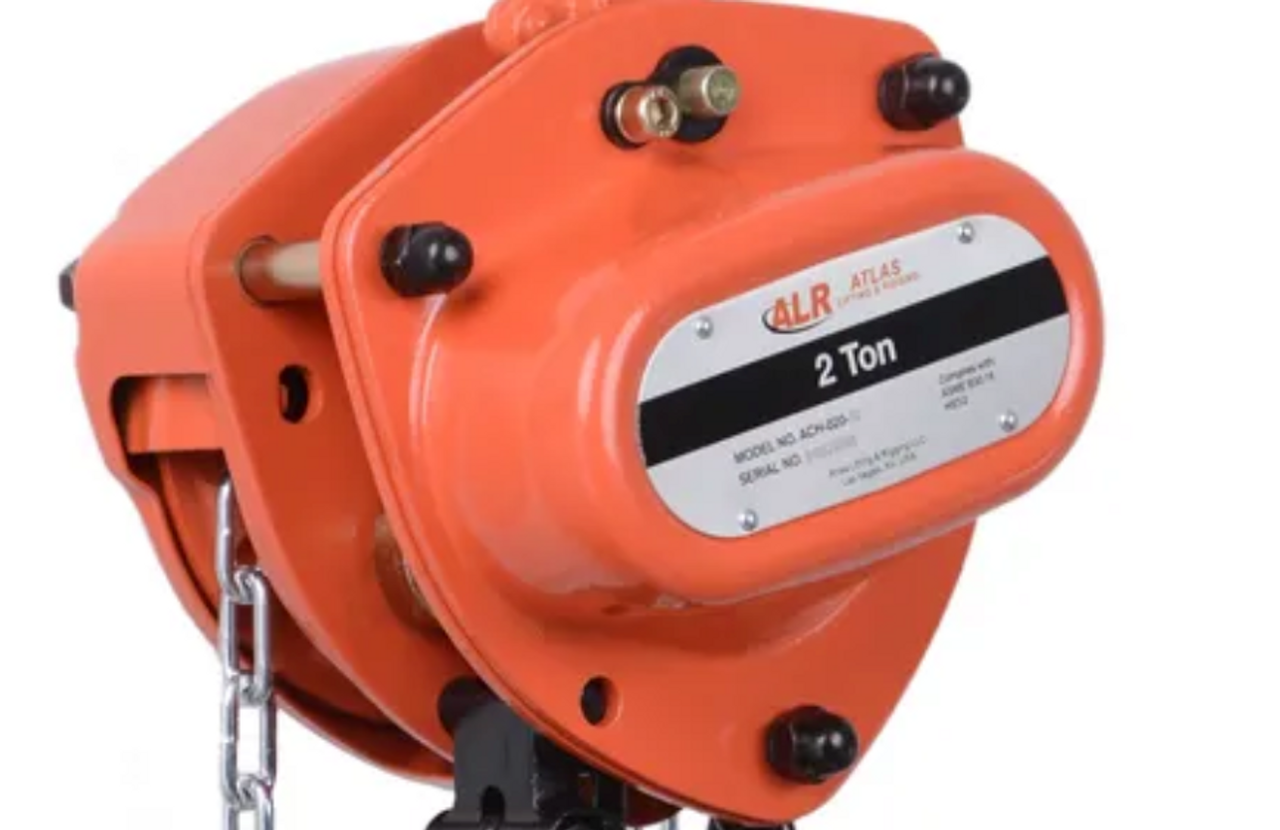

Atlas Lifting and Rigging ACH-020-10 Manual Chain Hoist
The ACH-020-10 Manual Chain Hoist from Atlas Lifting and Rigging offers high-capacity lifting performance in a compact, rugged design. With a 2-ton (4,000 lbs) load rating and a 10-foot lift height, this hoist is built to meet the requirements of heavy lifting applications across construction, manufacturing, and industrial maintenance.
Featuring a hardened steel frame, reliable Weston-style mechanical brake, and high-strength Grade 80 alloy chain, the ACH-020-10 delivers consistent lifting power, smooth operation, and enhanced durability. It's the ideal choice for professionals who need dependable performance under load.
Key Features:
- 2-Ton Lifting Capacity: Capable of lifting heavy equipment and materials with ease.
- 10-Foot Lift Height: Standard vertical reach for most general-purpose lifting jobs.
- Heavy-Duty Steel Construction: Withstands harsh working environments and high-stress use.
- Weston-Style Load Brake: Automatically holds the load securely in place at any height.
- Efficient Hand Chain Pull: Ergonomic design reduces strain during operation.
- Swivel Hooks with Safety Latches: Provide secure and flexible load attachment.
- Enclosed Gearing: Minimizes maintenance by protecting internal components from debris.
Specifications:
- Model: ACH-020-10
- Capacity: 2 Ton (4,000 lbs / 1,814 kg)
- Lift Height: 10 ft (3 m)
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 15–17 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 38–42 lbs
The Atlas ACH-020-10 delivers the power and control needed for demanding lifting tasks in a wide range of environments. Its balance of strength, safety, and reliability makes it a trusted tool on any job site.
