Product Overview

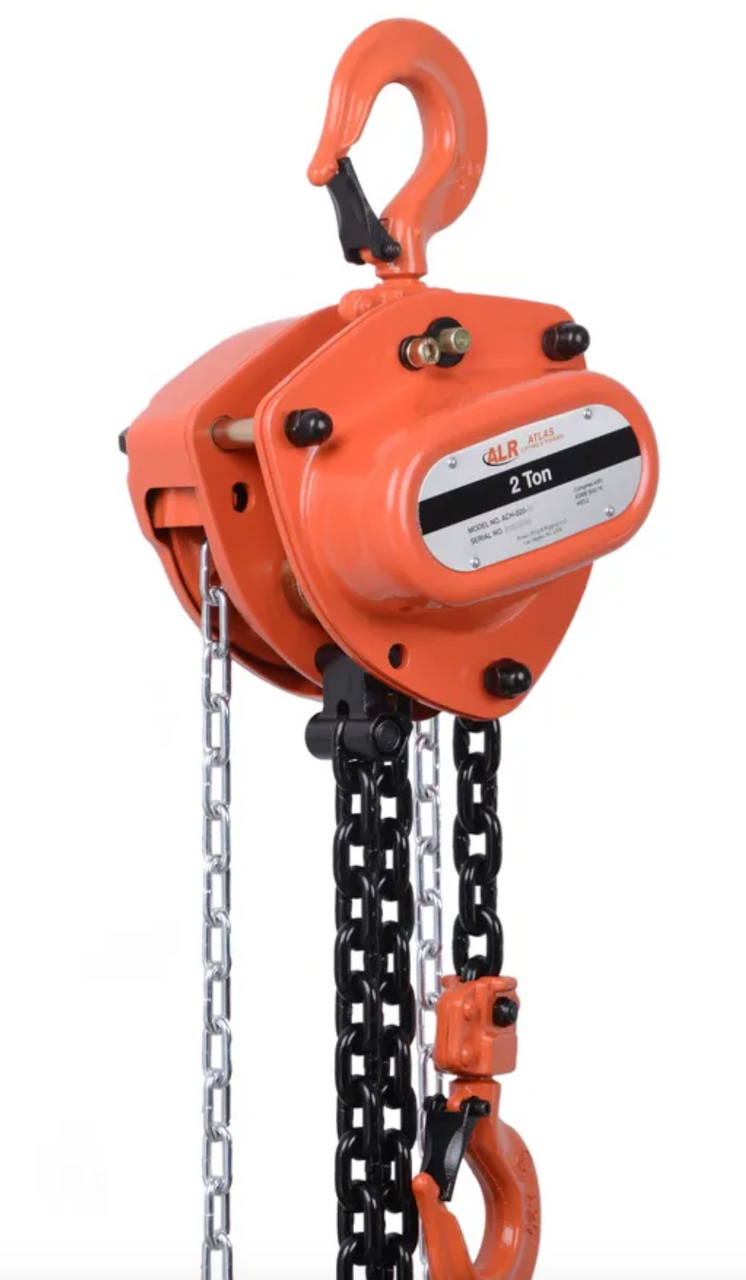

Atlas Lifting and Rigging ACH-020-30 Manual Chain Hoist
The ACH-020-30 Manual Chain Hoist offers extended vertical reach and robust lifting capacity for heavy-duty industrial and construction applications. Rated for 2 tons (4,000 lbs) and featuring a 30-foot lift height, this hoist is perfect for projects requiring significant elevation or deep-lift capability.
Built with a durable steel frame and precision Weston-style mechanical brake, the hoist provides secure, smooth, and controlled lifting. The high-strength Grade 80 alloy load chain and ergonomic hand chain ensure durability and ease of operation even in demanding environments.
Key Features:
- 2-Ton Load Capacity: Reliable lifting strength for heavy loads.
- 30-Foot Lift Height: Extended vertical reach for tall or deep lifting tasks.
- Rugged Steel Construction: Designed for long-lasting performance in tough conditions.
- Weston-Style Mechanical Brake: Provides dependable load holding and control.
- Ergonomic Hand Chain Operation: Minimizes operator fatigue during prolonged use.
- Swivel Hooks with Safety Latches: Ensure secure rigging and prevent chain twists.
- Sealed Internal Components: Protect gears and brake system from contaminants.
Specifications:
- Model: ACH-020-30
- Capacity: 2 Ton (4,000 lbs / 1,814 kg)
- Lift Height: 30 ft (9 m)
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 15–17 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 68–75 lbs
The Atlas ACH-020-30 is the trusted solution for professionals who require maximum lift height without compromising capacity or control. It is well-suited for overhead lifting, structural assembly, and other elevated rigging operations.
