Product Overview

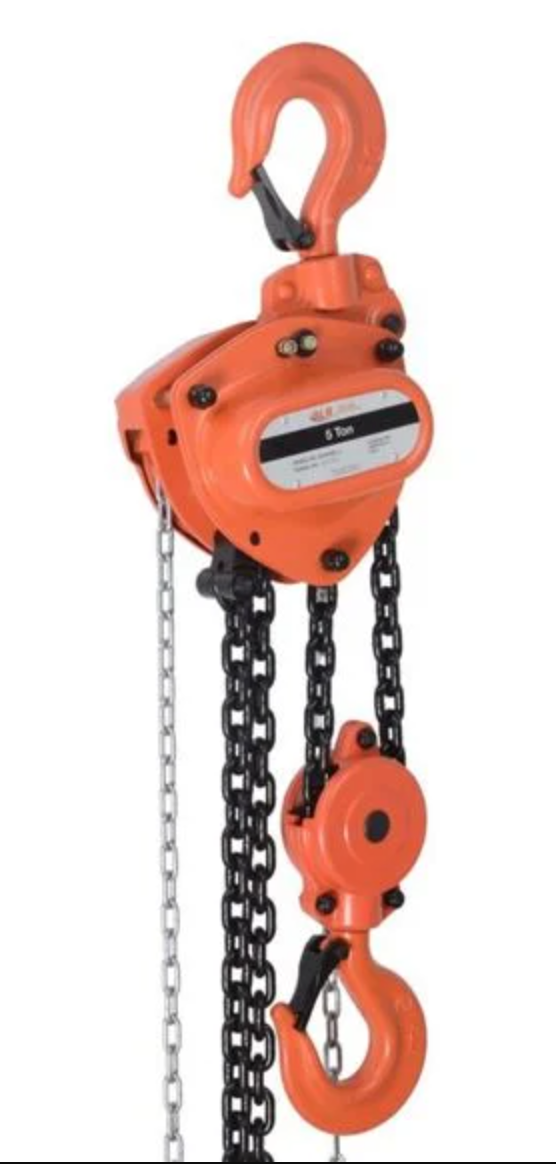

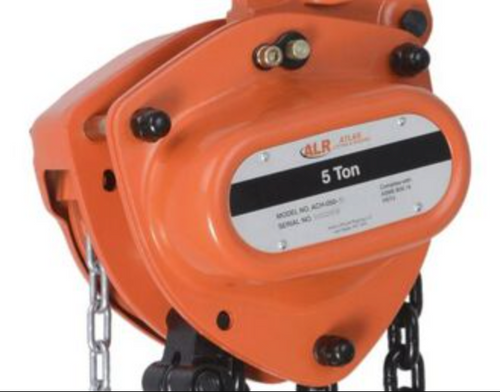

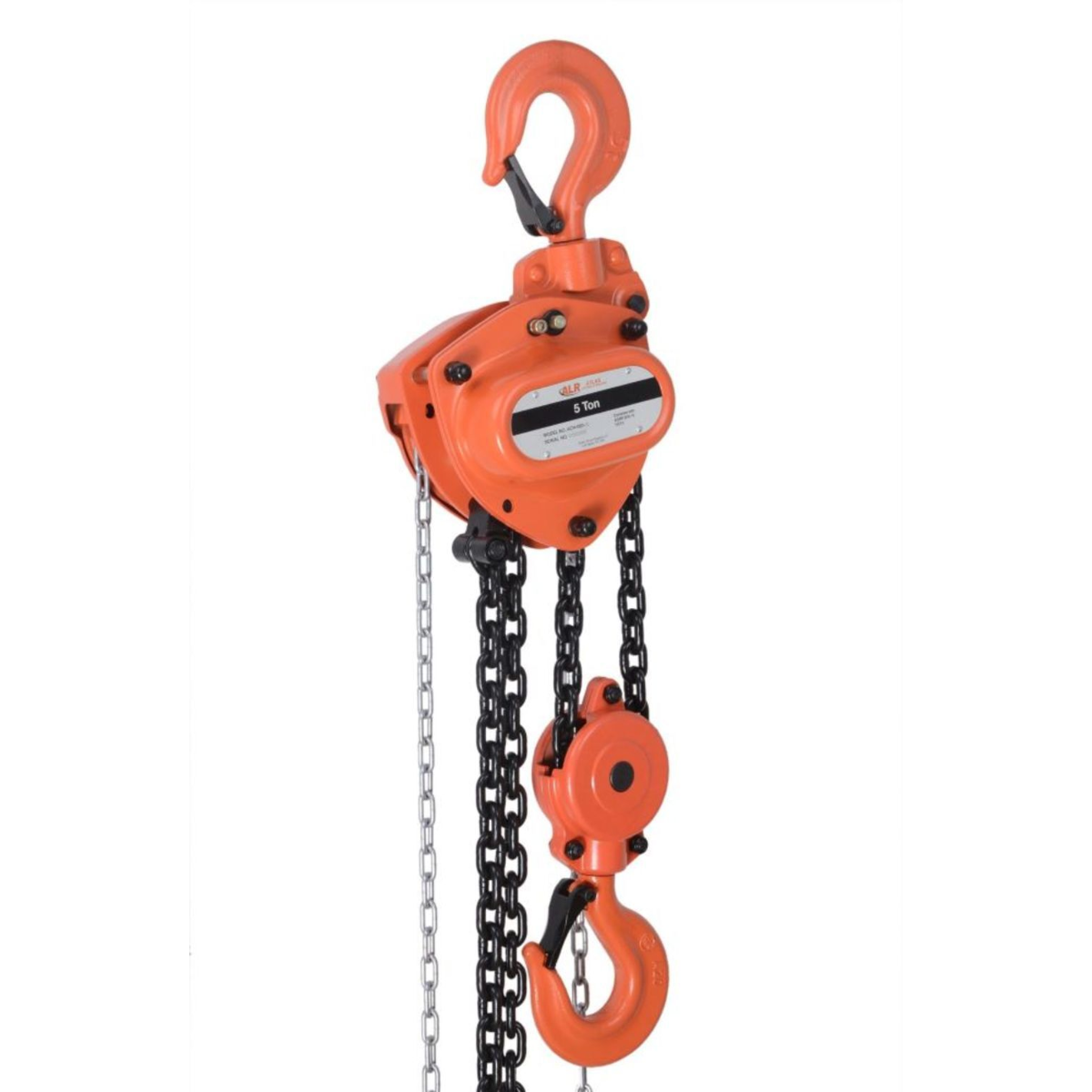

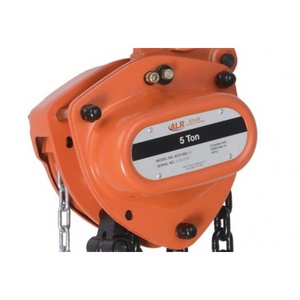

Atlas Lifting and Rigging ACH-050-30 Manual Chain Hoist
The ACH-050-30 manual chain hoist is designed for high-clearance lifting where long lift heights and dependable strength are essential. With a 5-ton (10,000 lbs) lifting capacity and a 30-foot lift height, this hoist provides powerful performance for demanding industrial, construction, and maintenance applications.
Rugged steel construction, a Weston-style mechanical brake, and a precision-machined load chain system ensure smooth operation and long-lasting reliability. Whether lifting heavy equipment or structural components at extended heights, the ACH-050-30 is built to perform.
Key Features:
- 5-Ton Lifting Capacity: Supports heavy-duty applications with confidence and control.
- 30-foot Lift Height: Ideal for tall structures, vertical shafts, and elevated load positioning.

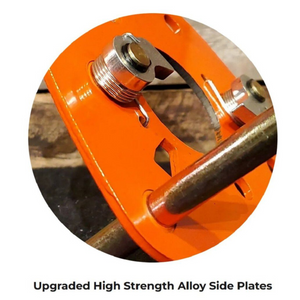

- Heavy-Gauge Steel Body: Resists impact, corrosion, and harsh work conditions.

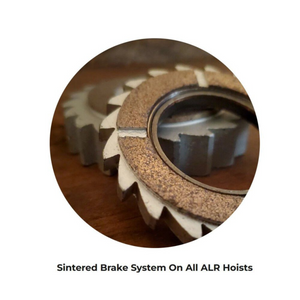

- Weston-Style Mechanical Brake: Automatically holds load securely in place.
- Grade 80 Alloy Load Chain: Engineered for strength, wear resistance, and long service life.

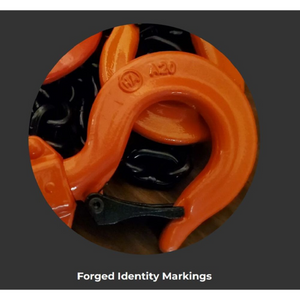

- Forged Swivel Hooks with Safety Latches: Allow full rotation and secure attachment for safe rigging.
- Smooth Manual Chain Operation: Reduces operator fatigue and enhances efficiency.
Specifications:
- Model: ACH-050-30
- Capacity: 5 Ton (10,000 lbs / 4,536 kg)
- Lift Height: 30 ft (9 m)
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel

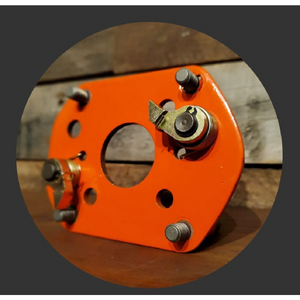

- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 22–24 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 180–190 lbs
The Atlas ACH-050-30 delivers extended lift height and industrial-grade strength for lifting operations where reach, control, and durability are non-negotiable.
