Product Overview

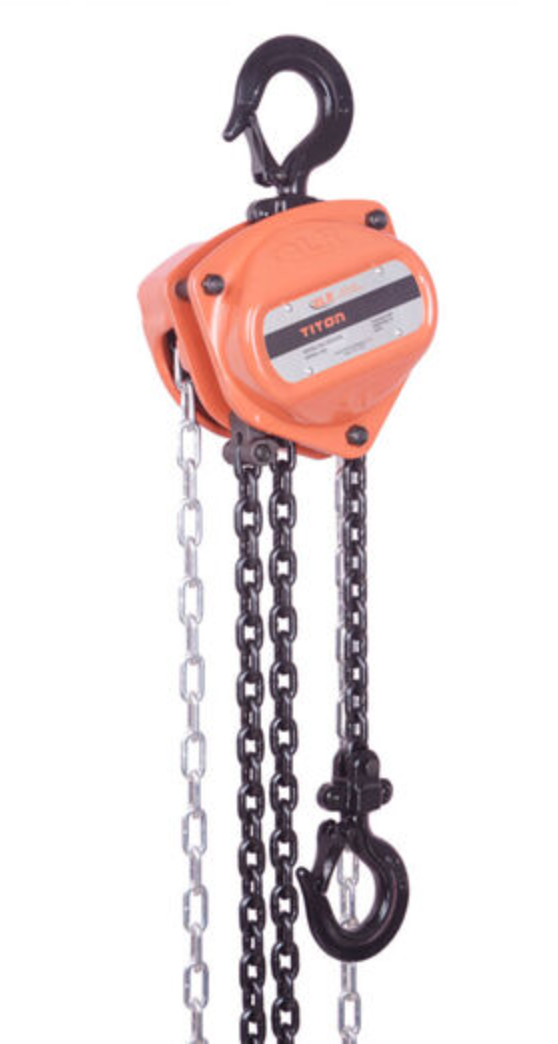

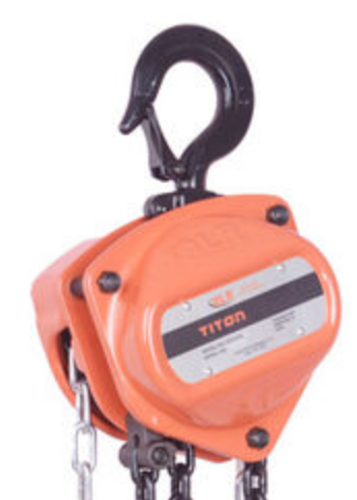

Atlas Lifting and Rigging Titon TCH-050-20 Manual Chain Hoist – 5 Ton Capacity, 20 ft Lift
Engineered for extended lifting range and uncompromising strength, the TCH-050-20 Manual Chain Hoist by Atlas Lifting and Rigging is a powerful solution for handling heavy loads in high-lift scenarios. With a 5-ton (10,000 lb) load capacity and a generous 20-foot lift height, it is ideally suited for use in shipyards, factories, steel fabrication, construction, and other demanding environments.
This hoist features a durable all-steel body, precision-machined gearing, and Grade 80 alloy steel chain for maximum reliability. The forged top and bottom swivel hooks, equipped with safety latches, provide secure load attachment and added rigging flexibility. Its smooth manual chain operation ensures precise control, even under full capacity.
Key Features:
- 5 Ton (10,000 lb) Capacity: Handles substantial loads with confidence and safety.
- 20 ft Lift Height: Ideal for tall workspaces, overhead structures, and high-lift tasks.
- Heavy-Duty Steel Construction: Built to perform in rugged, industrial settings.
- Dual-Fall Grade 80 Load Chain: Offers strength, longevity, and smooth operation.
- Ergonomic Manual Operation: Low hand chain pull effort with high mechanical efficiency.

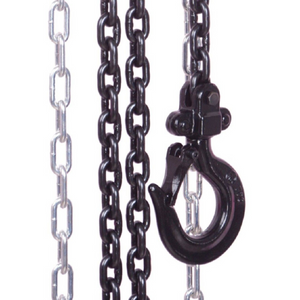

- Swivel Hooks with Safety Latches: Forged for strength and enhanced safety under load.
- Industrial Finish: Protects against wear, rust, and corrosion.
Specifications:
- Model: TCH-050-20
- Capacity: 5 Ton (10,000 lbs / 4,536 kg)
- Lift Height: 20 feet (6.10 meters)
- Load Chain: Grade 80 alloy steel
- Chain Diameter: Approx. 10 mm (dual fall)
- Hand Chain Pull (Full Load): Approx. 95–100 lbs
- Hooks: Forged swivel hooks with safety latches
- Finish: Corrosion-resistant industrial coating
- Net Weight: Approx. 112 lbs (50.8 kg)
The Atlas TCH-050-20 delivers extended reach and proven performance for high-demand lifting situations, ensuring durability, safety, and smooth operation across various industrial applications.
