Product Overview

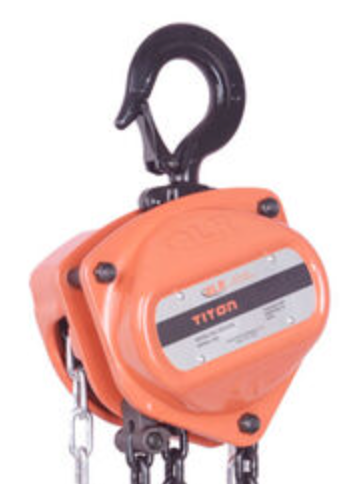

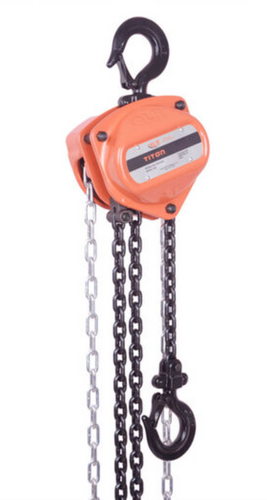

Atlas Lifting and Rigging Titon TCH-050-30 Manual Chain Hoist – 5 Ton Capacity, 30 ft Lift
The TCH-050-30 Manual Chain Hoist by Atlas Lifting and Rigging is designed for the most demanding high-lift applications. With a 5-ton (10,000 lb) lifting capacity and an extended 30-foot lift height, this hoist is ideal for environments requiring precision and performance at significant elevations—such as heavy construction, shipbuilding, utilities, and industrial maintenance.
Its strong steel body, dual-fall Grade 80 alloy steel load chain, and forged swivel hooks with safety latches deliver reliability, strength, and safety during every lift. The hoist's gearing system provides smooth operation, and the long lift height allows for flexible use in high-bay facilities and tall structures.
Key Features:
- 5 Ton (10,000 lb) Capacity: Heavy-duty lifting for substantial loads.
- 30 ft Lift Height: Extended range for overhead lifts and tall environments.
- Robust Steel Construction: Built to withstand heavy industrial use.
- Grade 80 Alloy Steel Chain: Corrosion-resistant, high-strength chain for smooth lifting.
- Efficient Manual Chain Operation: Requires minimal hand force even at full load.
- Forged Swivel Hooks with Safety Latches: Secure, safe, and easy to position.
- Protective Coating: Helps resist wear, impact, and harsh conditions.
Specifications:
- Model: TCH-050-30
- Capacity: 5 Ton (10,000 lbs / 4,536 kg)
- Lift Height: 30 feet (9.14 meters)

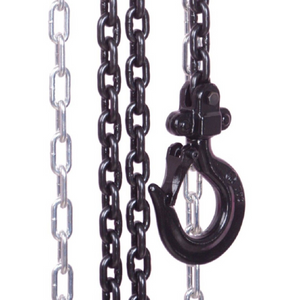

- Load Chain: Grade 80 alloy steel
- Chain Diameter: Approx. 10 mm (dual chain lines)
- Hand Chain Pull (Full Load): Approx. 95–100 lbs
- Hooks: Forged steel, swivel-type with safety latches
- Finish: Industrial-grade corrosion-resistant coating
- Net Weight: Approx. 147 lbs (66.7 kg)
The Atlas TCH-050-30 is built to perform in vertical-intensive applications where reliability, safety, and durability are paramount. It's the dependable choice for lifting professionals who need to reach without compromise.
