Product Overview

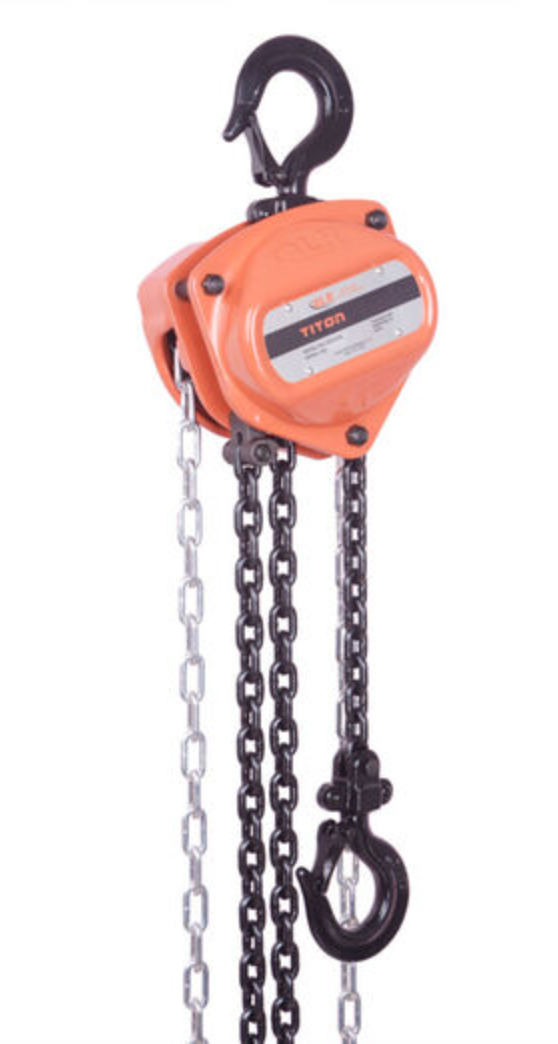

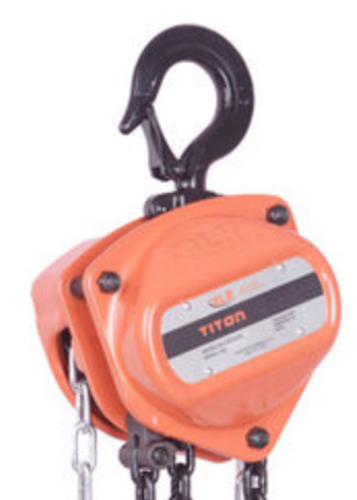

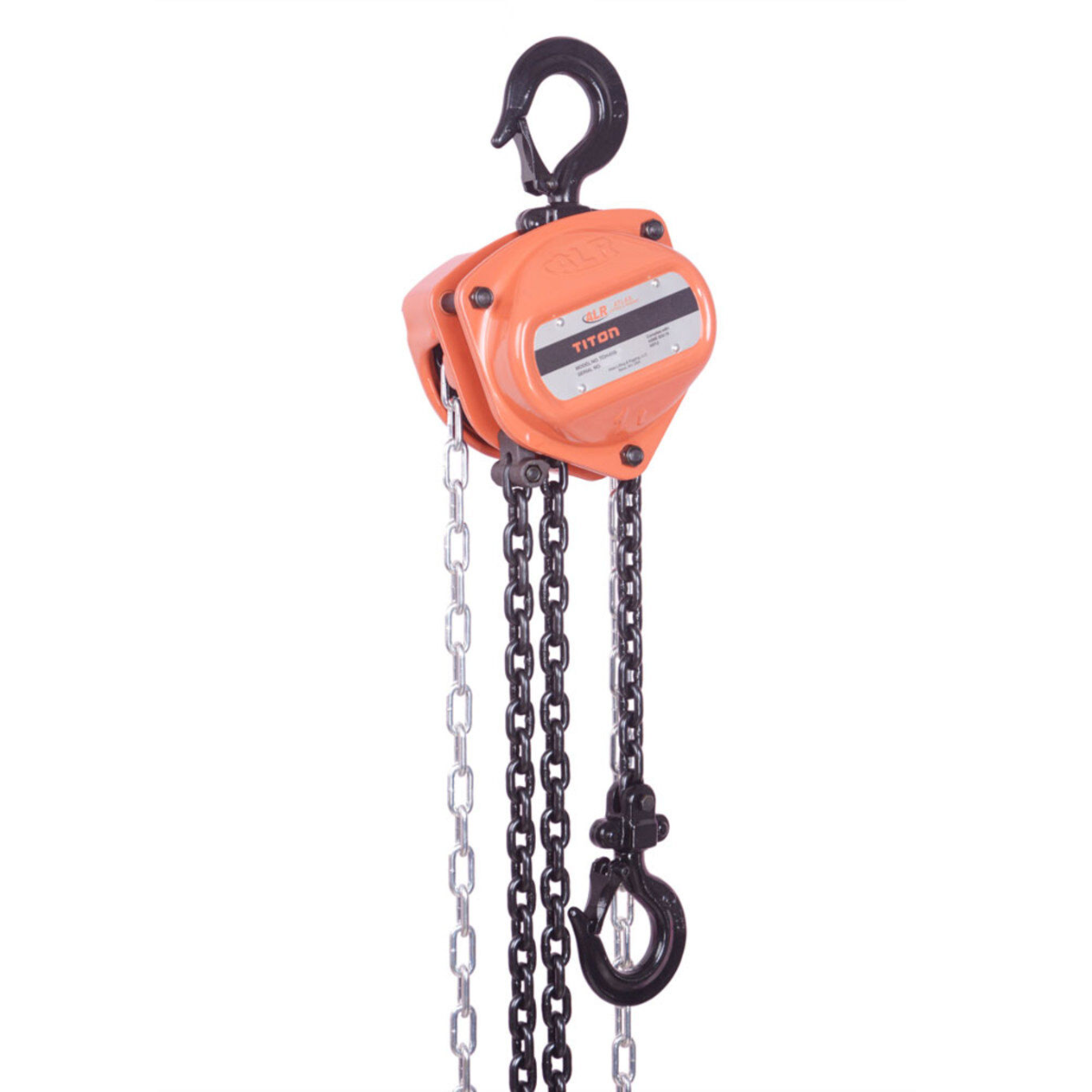

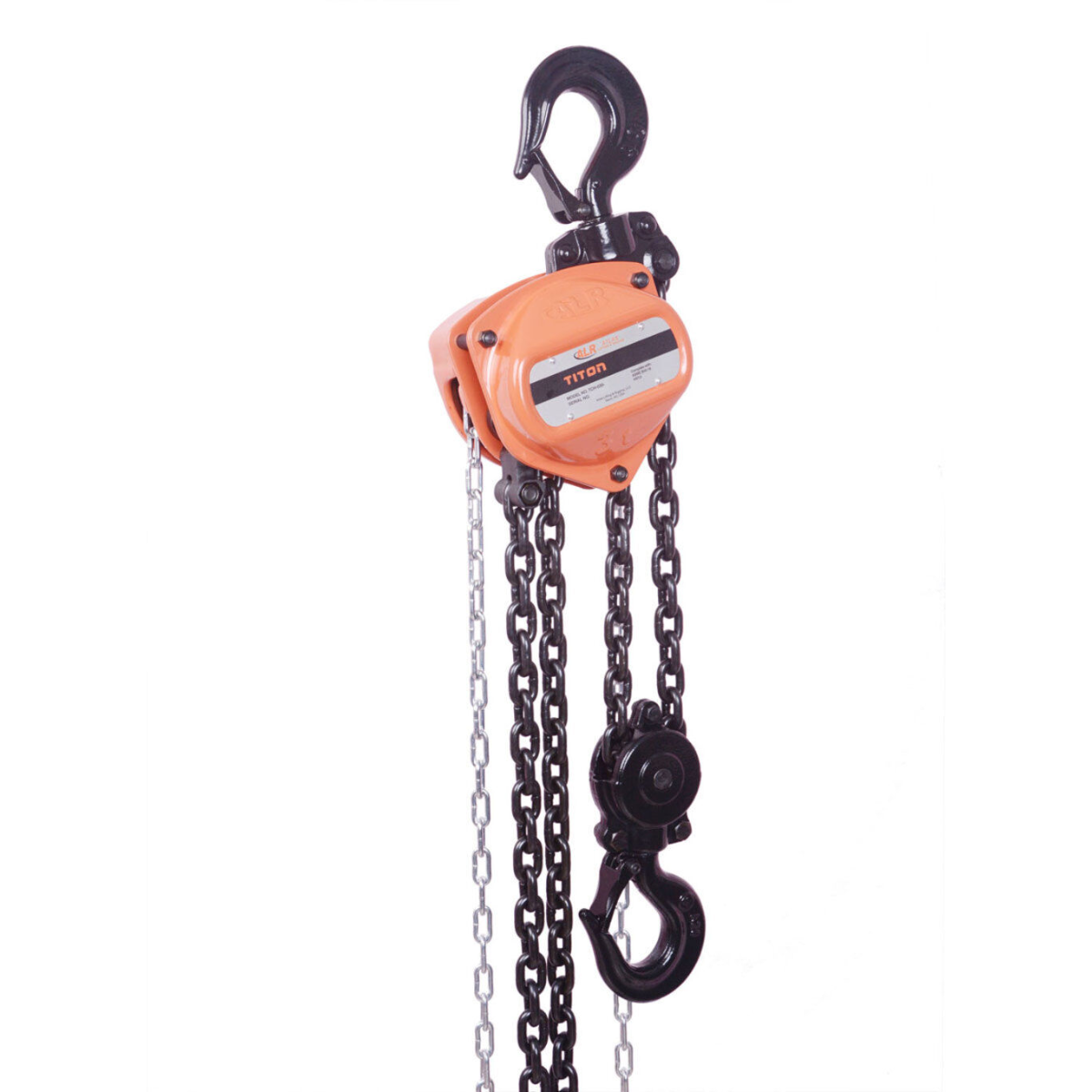

Atlas Lifting and Rigging Titon TCH-050-15 Manual Chain Hoist – 5 Ton Capacity, 15 ft Lift
The TCH-050-15 Manual Chain Hoist from Atlas Lifting and Rigging delivers robust performance and extended reach for lifting operations requiring extra height. With a 5-ton (10,000 lb) lifting capacity and a 15-foot lift height, this model is ideal for larger-scale industrial, construction, and warehouse applications where safety, reliability, and simplicity are critical.
Its industrial-grade steel housing, Grade 80 alloy steel load chain, and dual-fall lifting configuration offer uncompromising strength and stability under load. This hoist features forged steel swivel hooks with safety latches for secure and flexible load engagement, while its smooth-operating hand chain system minimizes operator effort and maximizes precision.
Key Features:
- 5 Ton (10,000 lb) Capacity: Heavy-duty lifting performance for demanding applications.
- 15 ft Lift Height: Added vertical range for taller setups or elevated work zones.
- Reinforced Steel Construction: Ensures long-term reliability in harsh environments.
- Premium Grade 80 Load Chain: High tensile strength and wear resistance.
- Efficient Manual Operation: Easy and smooth chain movement with minimal hand force.
- Swivel Hooks with Safety Latches: Secure and adaptable to various rigging scenarios.
- Corrosion-Resistant Finish: Built to endure outdoor and indoor industrial conditions.
Specifications:
- Model: TCH-050-15
- Capacity: 5 Ton (10,000 lbs / 4,536 kg)
- Lift Height: 15 feet (4.57 meters)
- Load Chain: Grade 80 alloy steel
- Chain Diameter: Approx. 10 mm (dual chain lines)
- Hand Chain Pull (Full Load): Approx. 95–100 lbs

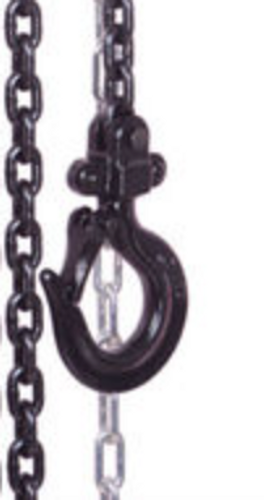

- Hooks: Forged steel, swivel type with safety latches
- Finish: Industrial protective coating
- Net Weight: Approx. 97 lbs (44 kg)
The Atlas TCH-050-15 is designed to handle significant weight with the added reach required for overhead or elevated lift tasks, making it a trusted choice for professionals seeking strength and dependability.
