Product Overview

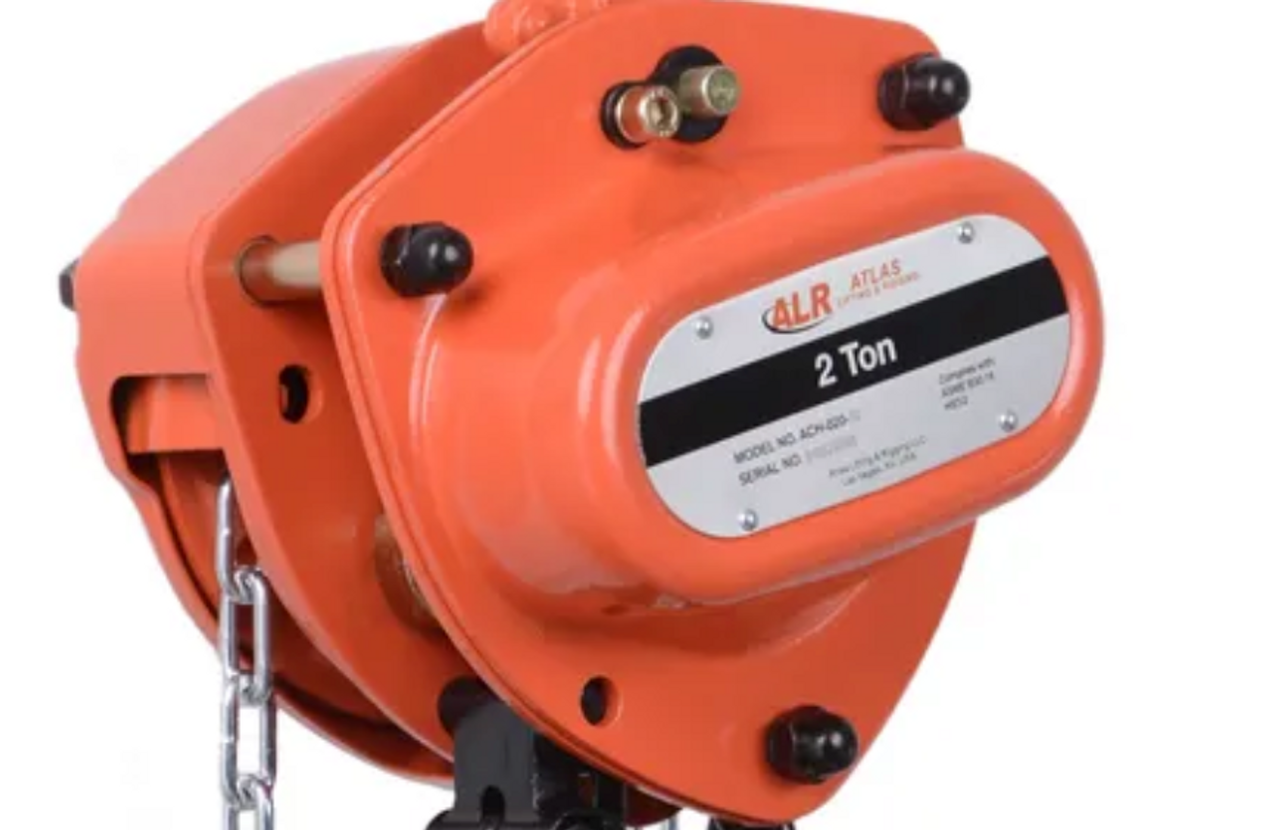

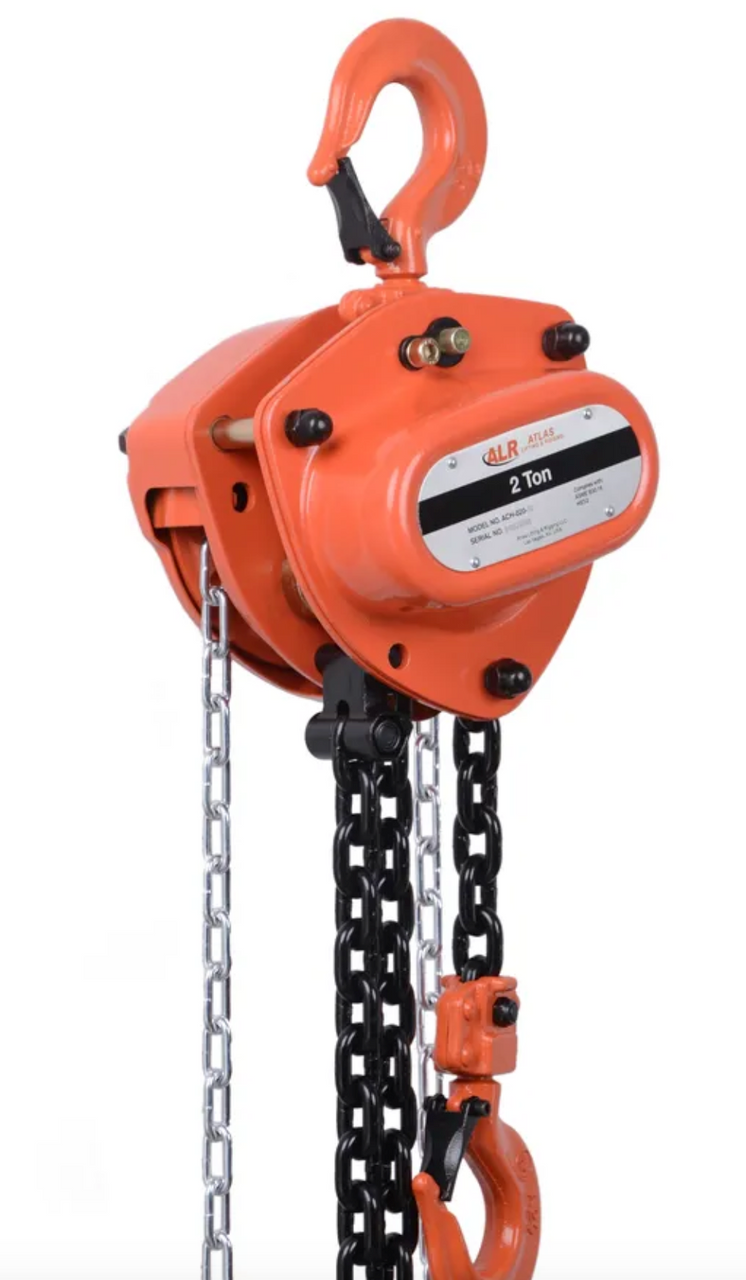

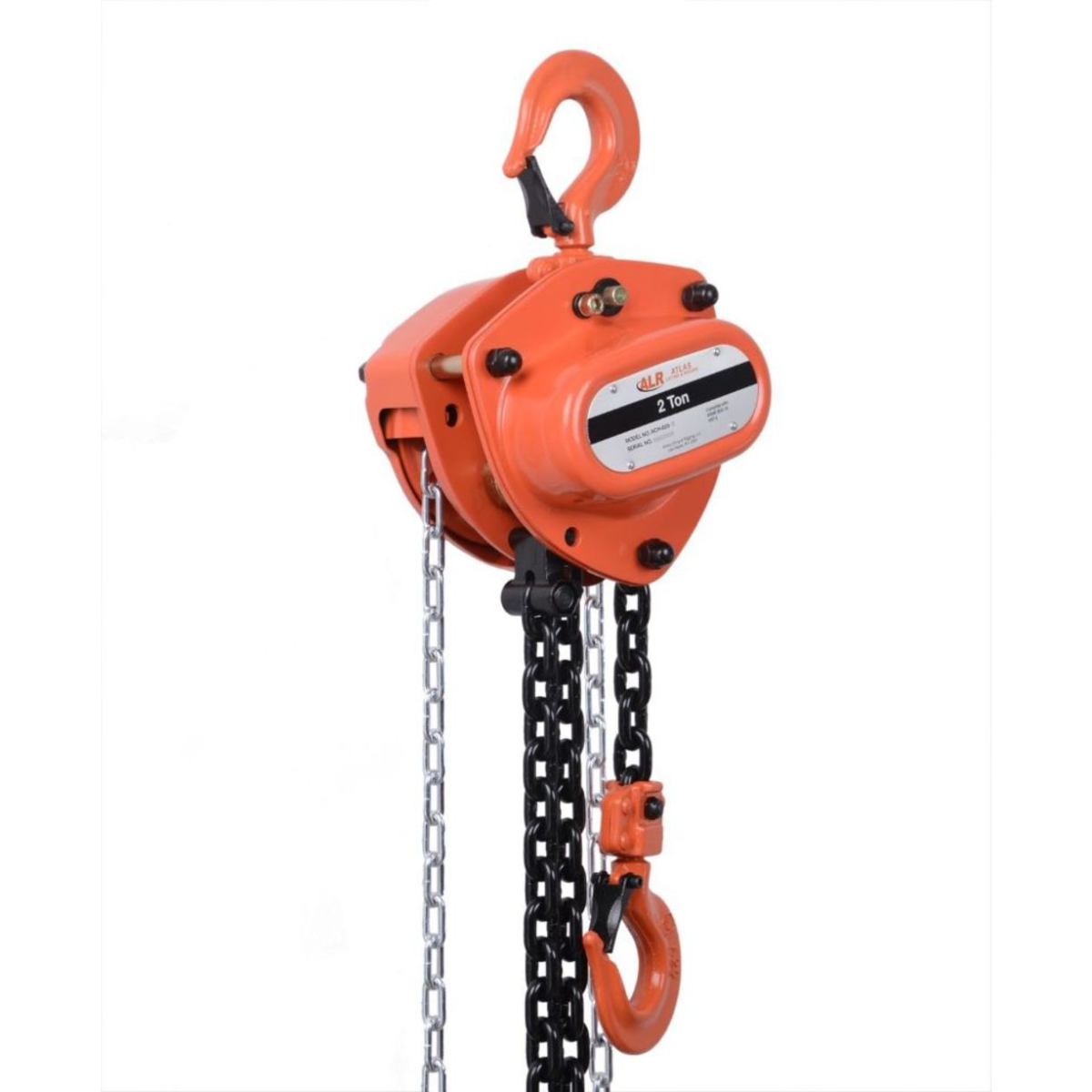

Atlas Lifting and Rigging ACH-020-15 Manual Chain Hoist
The ACH-020-15 Manual Chain Hoist from Atlas Lifting and Rigging is engineered for high-capacity lifting with extended reach. With a 2-ton (4,000 lbs) load capacity and a 15-foot lift height, this hoist is ideal for taller lifts, multi-level job sites, or applications requiring additional vertical clearance.
Built with a robust steel frame and internal gearing protected from dust and debris, this hoist provides reliable, consistent lifting in challenging environments. The high-grade alloy steel load chain and mechanical Weston-style brake ensure smooth operation and secure load control, even under frequent use.
Key Features:
- 2-Ton Load Capacity: Handles heavy equipment and materials with confidence.
- 15-Foot Lift Height: Greater vertical range for more demanding lifting applications.
- All-Steel Construction: Tough, impact-resistant housing designed for industrial durability.
- Weston-Style Load Brake: A reliable mechanical brake holds the load at any position.
- Ergonomic Hand Chain Operation: Smooth pulling action reduces operator effort.
- Swivel Hooks with Safety Latches: Allow for flexible rigging and prevent chain twisting.
- Sealed Gearing: Internal components are protected, reducing maintenance needs.
Specifications:
- Model: ACH-020-15
- Capacity: 2 Ton (4,000 lbs / 1,814 kg)
- Lift Height: 15 ft (4.5 m)
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 15–17 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 46–52 lbs
The Atlas ACH-020-15 delivers the strength and extended lifting range needed for demanding job sites. Whether used for equipment placement, rigging work, or structural assembly, it’s a dependable solution where performance and safety matter most.
