Atlas Lifting and Rigging Titon 10 Ton Chain Hoist 22000 lbs 10 Ft. Lift

Write a Review
$2,017.79
SKU: TCH-100-10
Availability: In stock
Weight: 168.52 LBS
Width: 18.90 (in)
Height: 7.87 (in)
Depth: 16.54 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Atlas Lifting and Rigging Titon 10 Ton Chain Hoist 22000 lbs 10 Ft. Lift

Atlas Lifting and Rigging Titon 10 Ton Chain Hoist 22000 lbs 10 Ft. Lift

$2,017.79

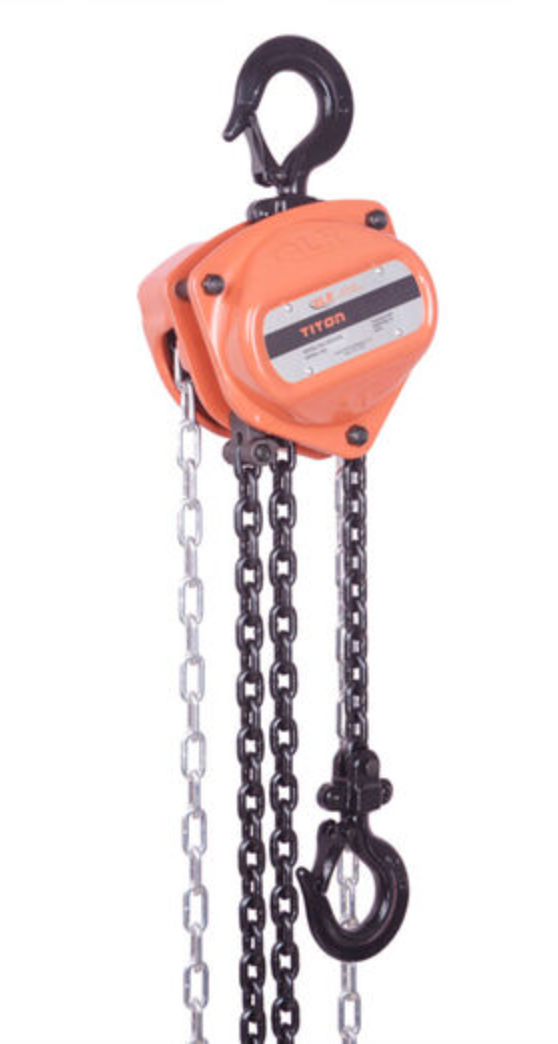

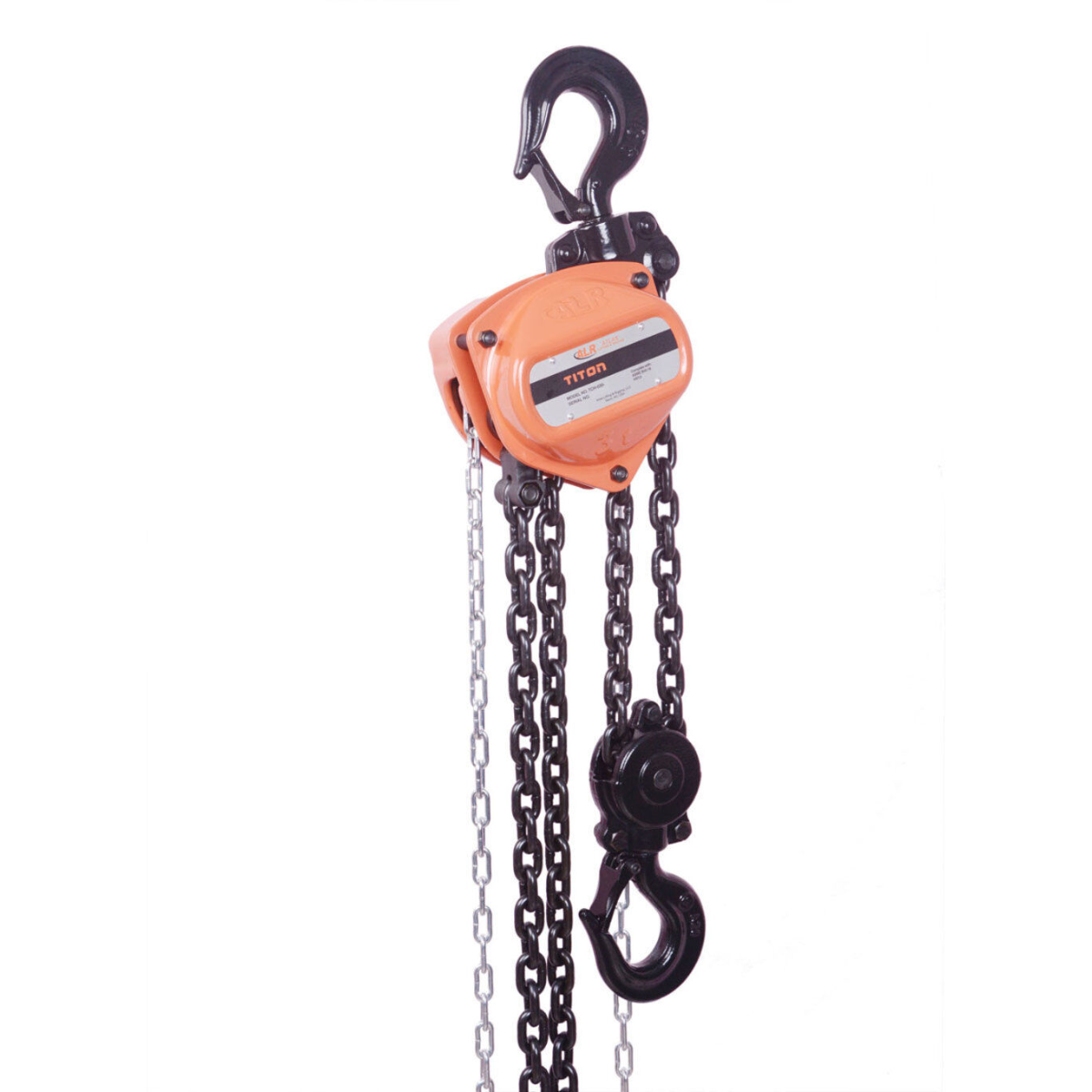

Atlas Lifting and Rigging Titon TCH-100-10 Manual Chain Hoist – 10 Ton Capacity, 10 ft Lift

The TCH-100-10 Manual Chain Hoist from Atlas Lifting and Rigging is built for maximum performance in the most demanding heavy-lift applications. With a 10-ton (20,000 lb) load capacity and a 10-foot standard lift height, this hoist delivers superior strength, durability, and precision for large-scale lifting tasks across industrial, construction, and rigging environments.

Constructed with a reinforced steel housing, quad-fall Grade 80 alloy load chain, and forged swivel hooks with safety latches, the TCH-100-10 provides robust lifting power with consistent, controlled operation. Its optimized gear system ensures smooth lifting action with minimal manual effort, even under full load.

Key Features:

  • 10 Ton (20,000 lb) Capacity: Engineered for high-load, high-demand lifting.
  • 10 ft Lift Height: Ideal for standard vertical lift requirements.
  • All-Steel Construction: Rugged and impact-resistant housing for extended service life.
  • Quad-Fall Grade 80 Chain: Heavy-duty chain built to resist wear and deformation.
  • Low Hand Chain Pull: Efficient manual operation with precise load control.

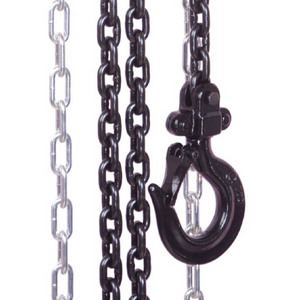

  • Swivel Top and Bottom Hooks: Forged with integrated safety latches for secure connections.
  • Durable Finish: Protects against corrosion and environmental wear.

Specifications:

  • Model: TCH-100-10
  • Capacity: 10 Ton (20,000 lbs / 9,072 kg)
  • Lift Height: 10 feet (3.05 meters)
  • Load Chain: Grade 80 alloy steel
  • Chain Configuration: Quad fall (4 load chains)
  • Chain Diameter: Approx. 10 mm
  • Hand Chain Pull at Full Load: Approx. 100–110 lbs
  • Hooks: Forged steel, swivel-type with safety latches
  • Finish: Industrial-grade protective coating
  • Net Weight: Approx. 187 lbs (84.8 kg)

The Atlas TCH-100-10 manual hoist offers exceptional load handling for professionals who demand strength, safety, and reliability when lifting the heaviest loads.
