Product Overview

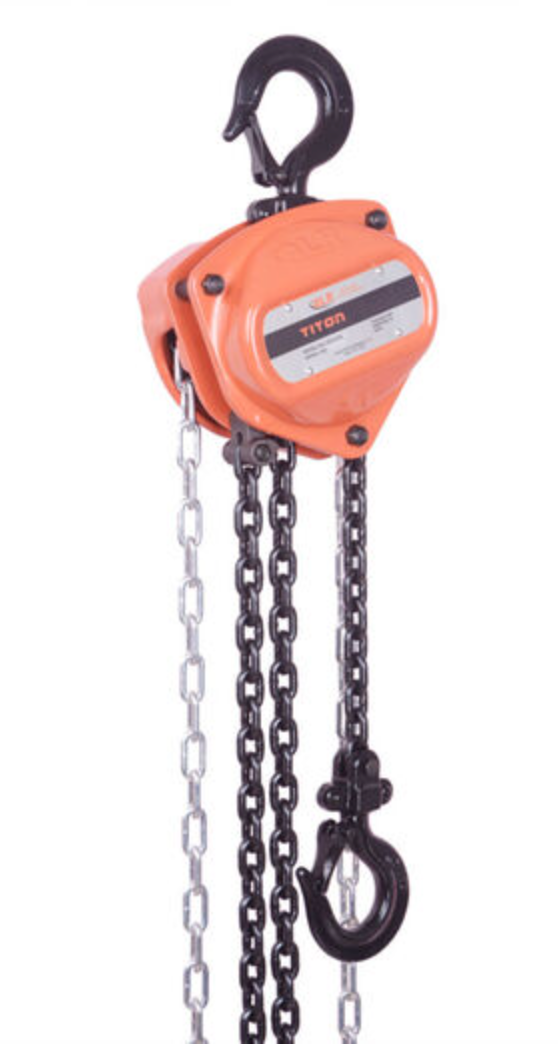

Atlas Lifting and Rigging Titon TCH-100-15 Manual Chain Hoist – 10 Ton Capacity, 15 ft Lift
The TCH-100-15 Manual Chain Hoist from Atlas Lifting and Rigging is designed for professionals who require maximum lifting power and extended reach. With a 10-ton (20,000 lb) capacity and a 15-foot lift height, this hoist is built to tackle the most demanding material handling challenges in industrial plants, fabrication yards, shipyards, and heavy construction sites.
Built for industry with a reinforced steel frame, quad-fall Grade 80 alloy steel chain, and precision-machined gears, this hoist ensures smooth operation, high load security, and long-lasting performance. The forged swivel hooks with safety latches provide secure and flexible attachment points for dynamic rigging setups.
Key Features:
- 10 Ton (20,000 lb) Capacity: Built for the toughest heavy-lift jobs.
- 15 ft Lift Height: Ideal for high-reach applications or tall rigging environments.

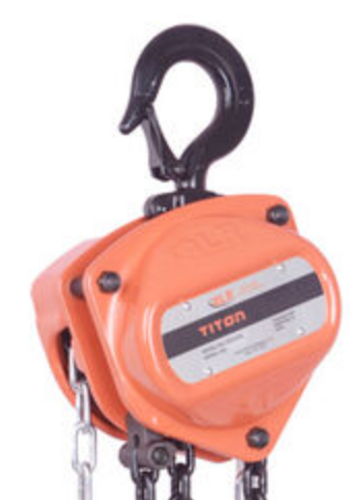

- All-Steel Housing: Designed for durability and resistance to impacts and wear.

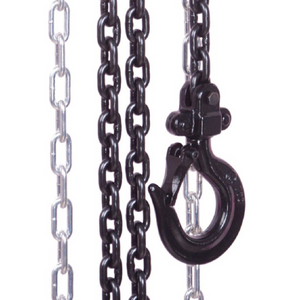

- Quad-Fall Load Chain: Grade 80 alloy steel provides exceptional strength and resistance to fatigue.
- Smooth Manual Chain Operation: Precision gearing allows for controlled lifting with minimal hand force.
- Swivel Hooks with Safety Latches: Forged steel construction ensures secure and flexible rigging.
- Protective Finish: Coated to withstand harsh environments and corrosion.
Specifications:
- Model: TCH-100-15
- Capacity: 10 Ton (20,000 lbs / 9,072 kg)
- Lift Height: 15 feet (4.57 meters)
- Load Chain: Grade 80 alloy steel
- Chain Configuration: Quad fall (4 load chains)
- Chain Diameter: Approx. 10 mm
- Hand Chain Pull at Full Load: Approx. 100–110 lbs
- Hooks: Forged swivel type with safety latches
- Finish: Industrial-grade corrosion-resistant coating
- Net Weight: Approx. 217 lbs (98.4 kg)
The Atlas TCH-100-15 provides the extended reach and brute strength required for weighty heavy lifting—reliable, rugged, and ready for the most demanding conditions.
