Product Overview

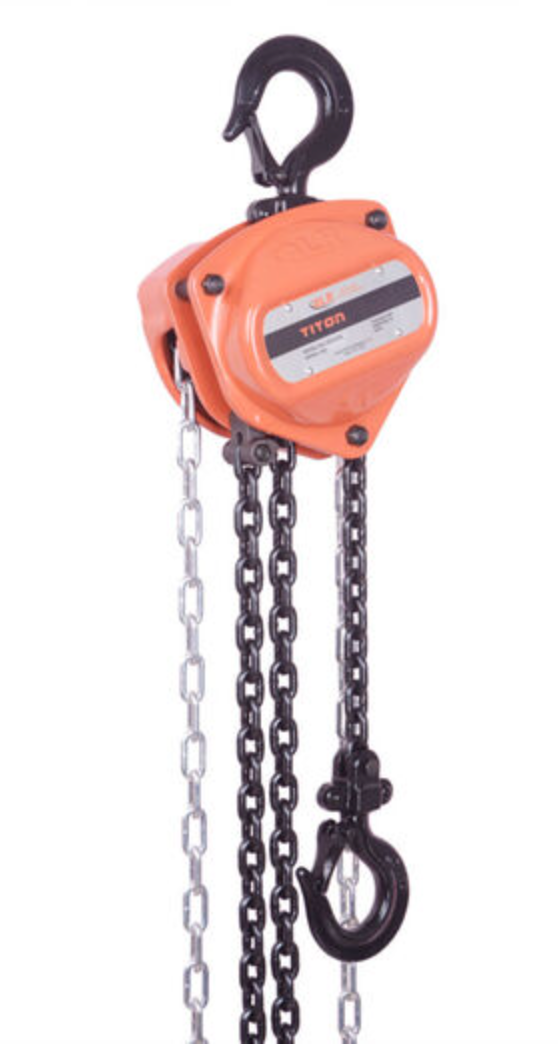

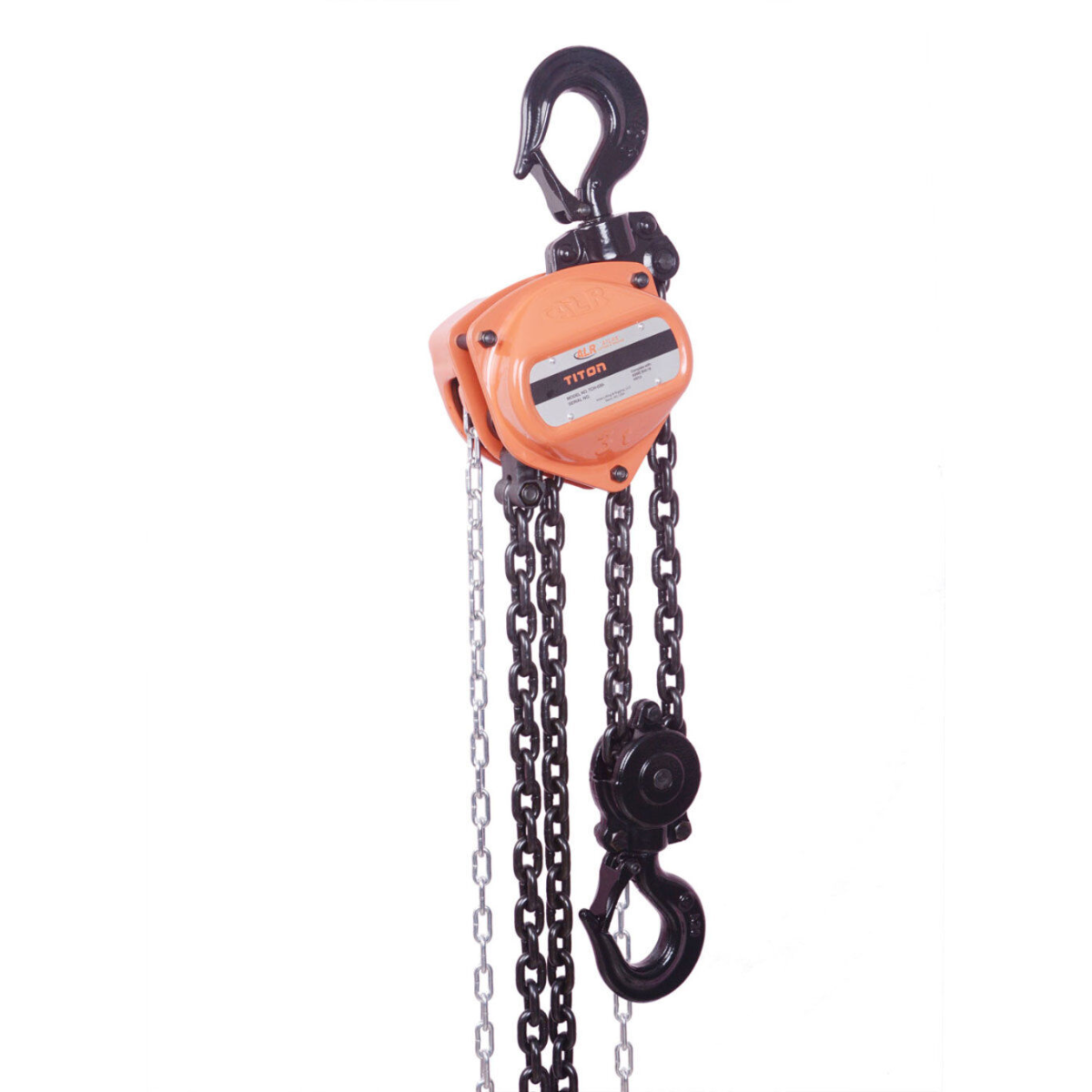

Atlas Lifting and Rigging Titon TCH-100-30 Manual Chain Hoist – 10 Ton Capacity, 30 ft Lift
The TCH-100-30 Manual Chain Hoist from Atlas Lifting and Rigging offers superior heavy-duty lifting performance with an extended 30-foot lift height. Rated for 10 tons (20,000 lbs), this hoist is engineered to handle large, heavy loads with ease and precision in demanding industrial, construction, and rigging applications.

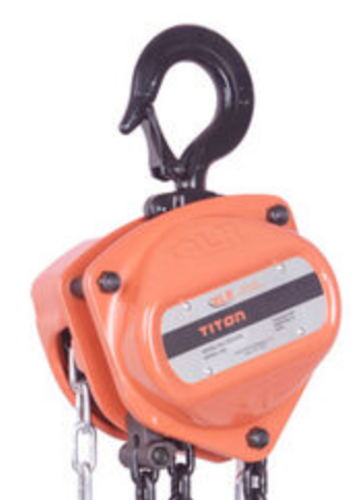

Built with a rugged all-steel housing, the hoist features a quad-fall Grade 80 alloy steel load chain for exceptional strength and durability. The forged swivel hooks with safety latches provide secure attachment points, while the optimized gear system enables smooth, controlled manual lifting with minimal effort, even at full load.
Key Features:
- 10 Ton (20,000 lb) Capacity: Heavy-duty lifting for demanding industrial tasks.
- 30 ft Lift Height: Extended vertical range for tall structures and elevated operations.
- Robust Steel Construction: Durable and impact-resistant housing for long service life.
- Quad-Fall Grade 80 Load Chain: High-strength alloy steel ensures safety and reliability.
- Low Effort Manual Operation: Precision gearing for smooth and efficient lifting.

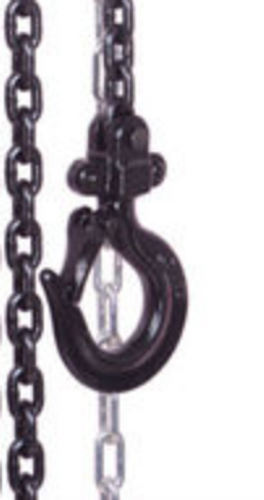

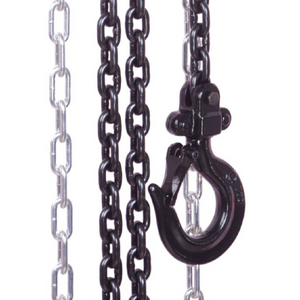

- Forged Swivel Hooks with Safety Latches: Secure and flexible rigging options.
- Corrosion-Resistant Finish: Protection against harsh environments and wear.
Specifications:
- Model: TCH-100-30
- Capacity: 10 Ton (20,000 lbs / 9,072 kg)
- Lift Height: 30 feet (9.14 meters)
- Load Chain: Grade 80 alloy steel
- Chain Configuration: Quad fall (4 load chains)
- Chain Diameter: Approx. 10 mm
- Hand Chain Pull at Full Load: Approx. 100–110 lbs
- Hooks: Forged steel swivel hooks with safety latches
- Finish: Industrial-grade corrosion-resistant coating
- Net Weight: Approx. 280 lbs (127 kg)
The Atlas TCH-100-30 manual chain hoist offers the strength, reliability, and extended reach required for the most demanding lifting operations, ensuring the safe and efficient handling of heavy loads at height.
