Product Overview

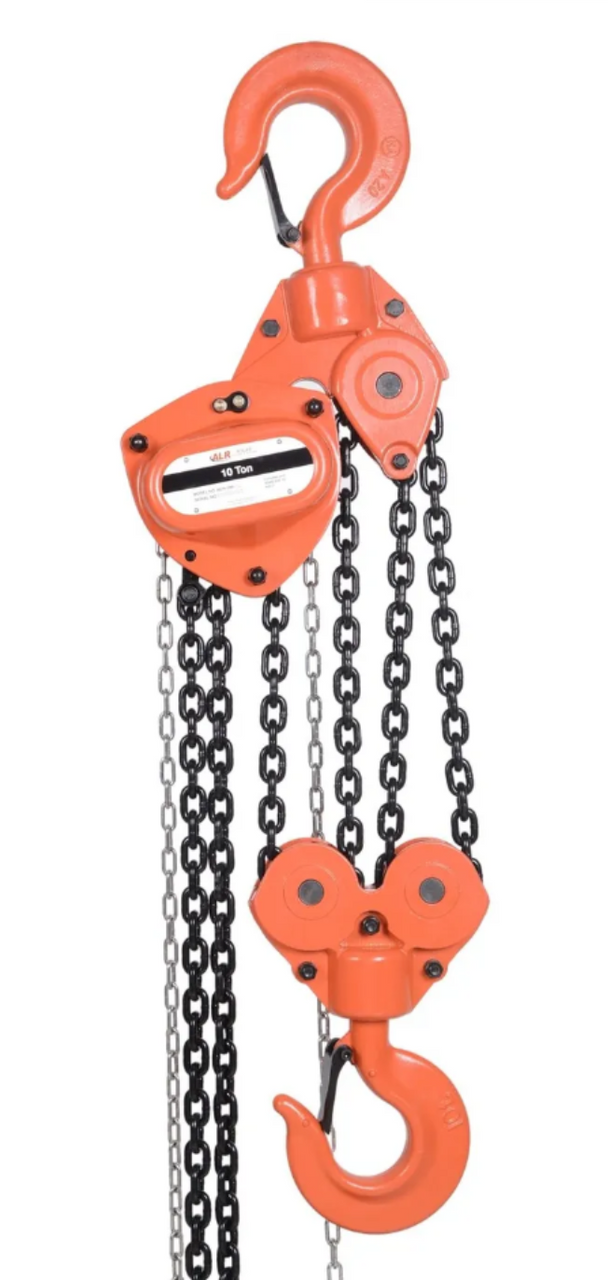

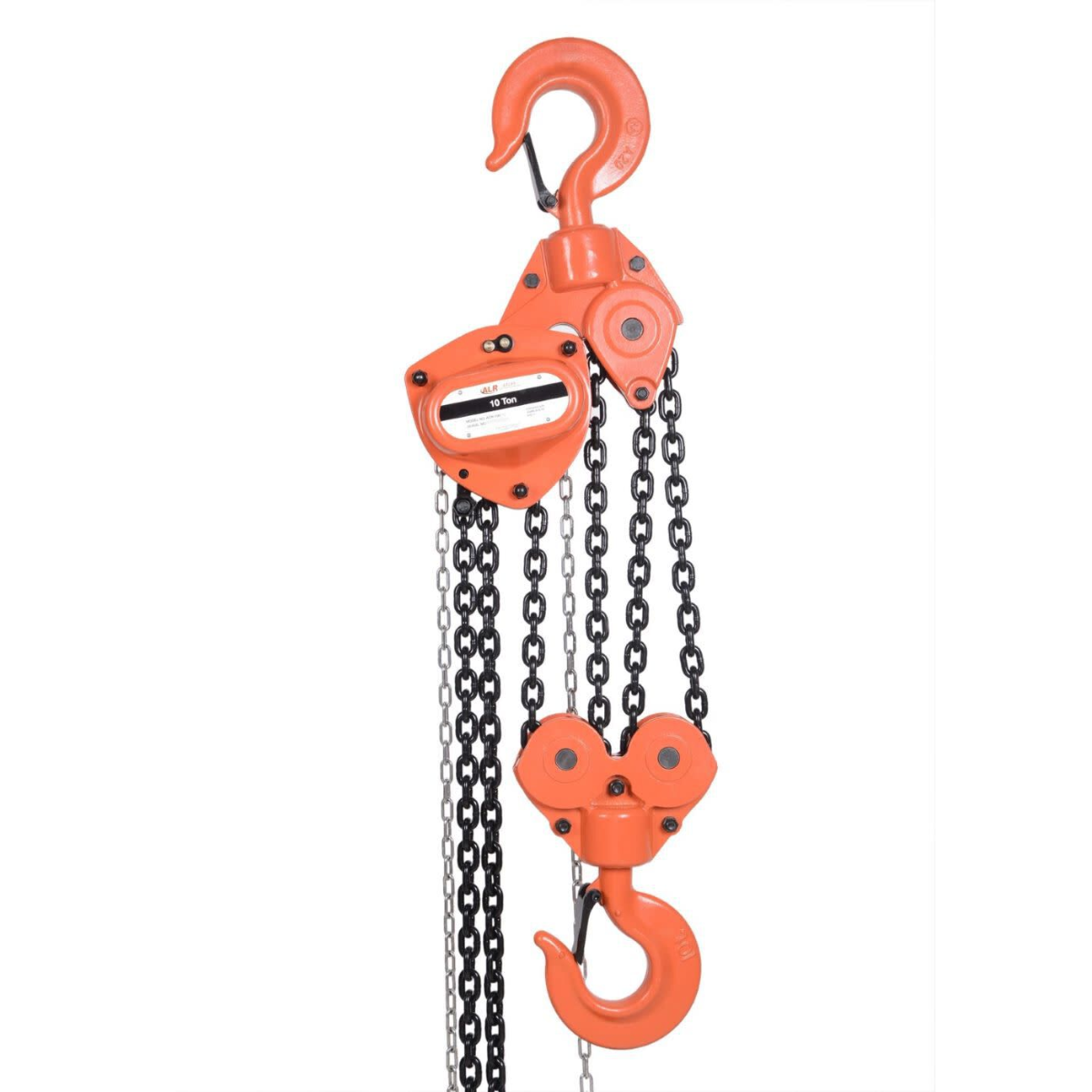

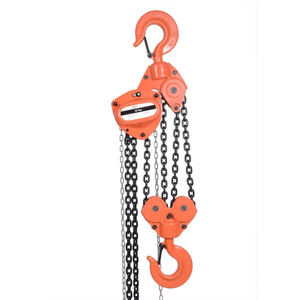

Atlas Lifting and Rigging ACH-100-15 Manual Chain Hoist
The ACH-100-15 is engineered to handle the most demanding heavy-lift applications with reliability and control. With a 10-ton (20,000 lbs) lifting capacity and a 15-foot lift height, this hoist is ideal for large-scale industrial operations that require extended reach and dependable performance.
Designed with high-strength components, including a rugged steel frame, precision-machined gearing, and a Weston-style load brake, the ACH-100-15 offers smooth manual operation even under maximum load. Grade 80 alloy load chain and forged swivel hooks deliver exceptional durability and safety on every lift.
Key Features:
- 10-Ton Lifting Capacity: Capable of handling heavy machinery, structural components, and large loads with ease.
- 15-Foot Lift Height: Extended reach for overhead applications or deep lift requirements.

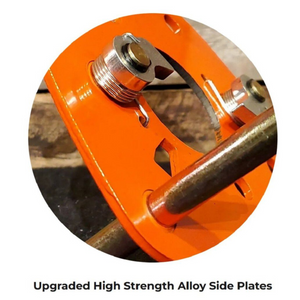

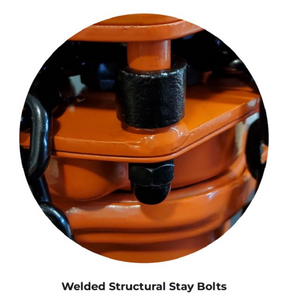

- Reinforced Steel Construction: Built to withstand extreme conditions and continuous industrial use.
- Weston-Style Mechanical Brake: Automatically engages to securely hold loads during and after lifting.
- Grade 80 Alloy Load Chain: High tensile strength and corrosion-resistant finish for long-term durability.
- Forged Swivel Hooks with Safety Latches: Provide secure, flexible attachment and load control.
- Efficient Chain Operation: Smooth hand chain pull for reduced operator fatigue.
Specifications:
- Model: ACH-100-15
- Capacity: 10 Ton (20,000 lbs / 9,072 kg)
- Lift Height: 15 ft (4.5 m)
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 30–34 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 285–300 lbs
The Atlas ACH-100-15 provides the heavy-duty performance and extended reach needed for demanding environments—making it a go-to choice for professional lifting operations.
