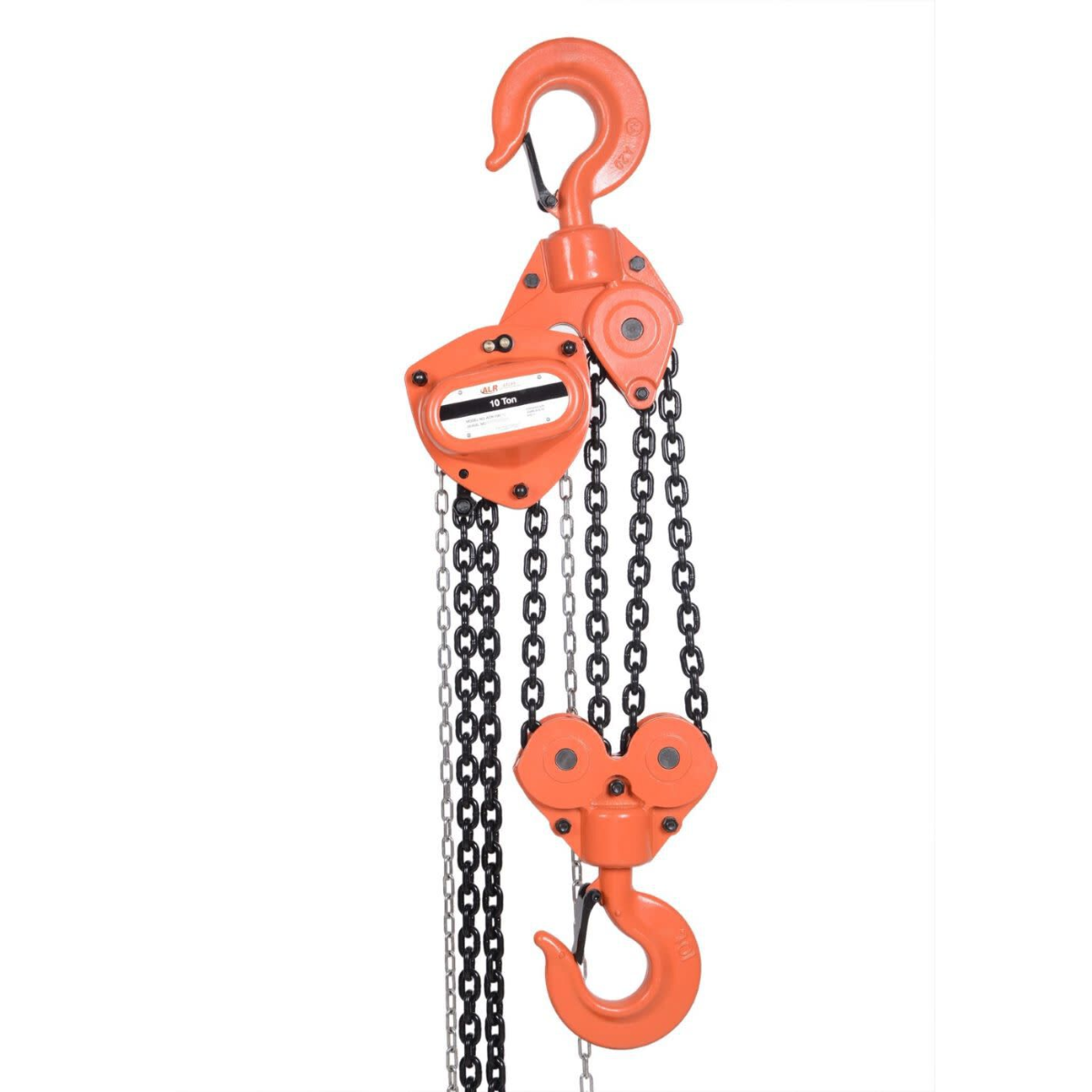

Atlas Lifting and Rigging ACH 10 Ton Chain Hoist 22000 lbs 20 Ft. Lift

Write a Review
$3,391.19
SKU: ACH-100-20
Availability: In stock
Weight: 248.16 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

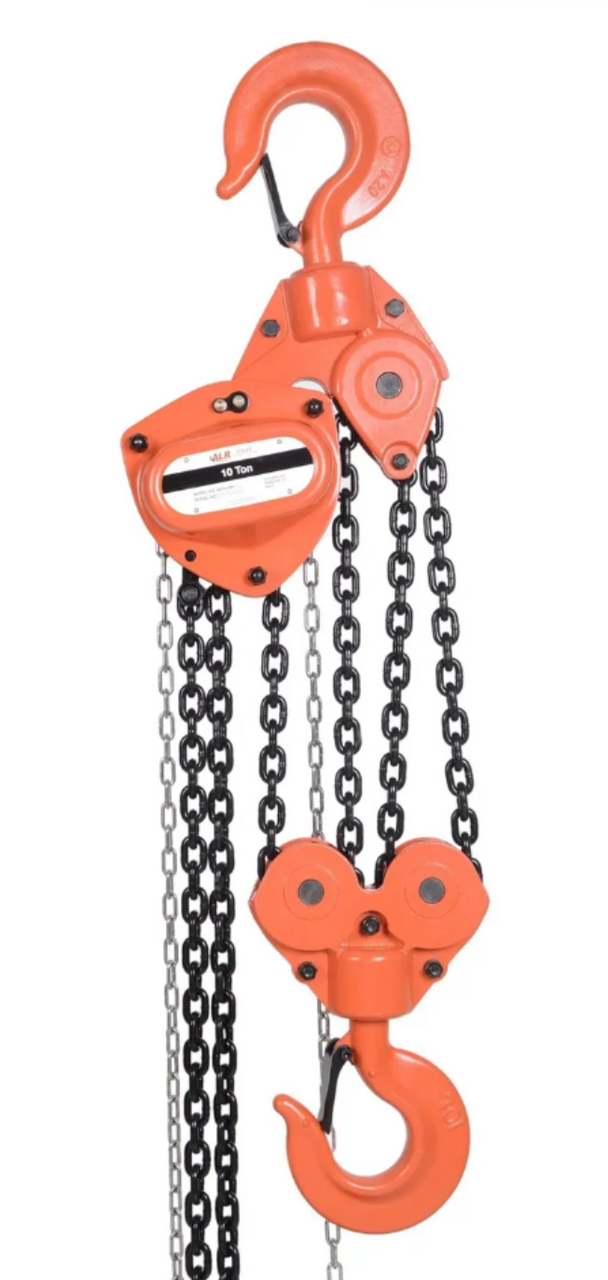

Atlas Lifting and Rigging ACH-100-20 Manual Chain Hoist

The ACH-100-20 delivers unmatched heavy-duty lifting performance for jobs that demand extended vertical reach and dependable power. Rated for 10 tons (20,000 lbs) and equipped with a 20-foot lift height, this manual chain hoist is built to meet the requirements of large-scale industrial, construction, and rigging operations.

Designed with safety and efficiency in mind, it features a rugged steel frame, a Weston-style mechanical brake, and a Grade 80 alloy steel chain for exceptional durability and control. The forged swivel hooks ensure secure and adaptable attachment, while the smooth manual chain operation makes it easy to handle even the most demanding loads.

Key Features:

  • 10-Ton Capacity: Handles the heaviest equipment and materials with confidence.
  • 20-Foot Lift Height: Ideal for tall structures, overhead lifting, and vertical shaft operations.

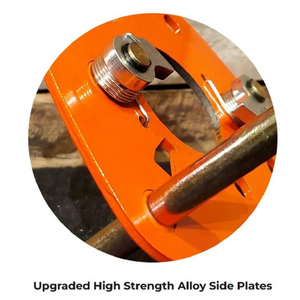

  • Heavy-Gauge Steel Construction: Built for industrial toughness and long-term reliability.
  • Weston-Style Load Brake: Provides smooth and secure control when raising or lowering heavy loads.
  • Grade 80 Alloy Load Chain: High-strength chain resists abrasion, wear, and corrosion.
  • Forged Swivel Hooks with Safety Latches: Full rotation and secure attachment for flexible rigging.
  • Smooth Manual Chain Operation: Engineered for reduced effort under full load.

Specifications:

  • Model: ACH-100-20
  • Capacity: 10 Ton (20,000 lbs / 9,072 kg)
  • Lift Height: 20 ft (6 m)
  • Load Chain: Grade 80 alloy steel, black oxide finish
  • Hand Chain: Zinc-plated steel
  • Brake Type: Weston-style mechanical load brake
  • Hook Type: Forged steel swivel hooks with safety latches
  • Headroom: Approx. 30–34 inches
  • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
  • Net Weight: Approx. 325–340 lbs

The Atlas ACH-100-20 is a rugged, extended-lift hoist built to handle large-scale lifting operations with consistent performance and lasting durability.
