ALR Titon Electric Chain Hoist - 1 Ton, Single Phase, 15Ft. Lift

Product Overview

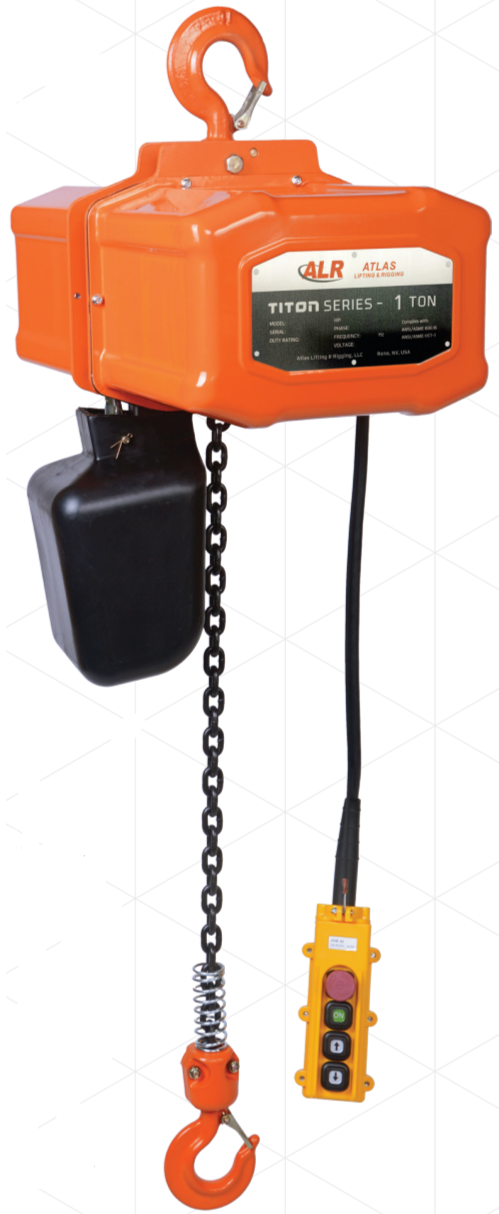

Atlas Titon Electric Chain Hoist – TEH-1-010-15

1 Ton Capacity | 15-Foot Lift | Single Speed

The Atlas TEH-1-010-15 Titon Electric Chain Hoist is engineered to provide dependable lifting performance and extended reach in industrial environments. With a rated capacity of 1 ton (2,200 lbs) and a 15-foot lift height, this hoist is designed for precision, durability, and operational safety. Ideal for manufacturing, maintenance, fabrication, and warehouse use, it combines a robust motor, high-grade components, and ergonomic control to support daily lifting tasks with confidence.

Features

• 1 Ton Load Capacity: Designed to lift up to 2,200 lbs with smooth, controlled movement for a wide range of industrial applications.
• Extended 15-Foot Lift: Offers greater vertical range for elevated or recessed lifting positions, enhancing flexibility on the job.
• Grade 80 Alloy Load Chain: A black oxide-treated steel chain that delivers high tensile strength and resistance to wear in demanding environments.
• Heavy-Duty Motor: Thermally protected electric motor supports reliable lifting over extended cycles with minimal maintenance.
• Electromagnetic Load Brake: Automatically engages to hold the load securely, even in the event of power interruption.
• Compact Protective HoA sealed Sealed aluminum enclosure resists dust, debris, and moisture, ensuring longevity in harsh, tough conditions.

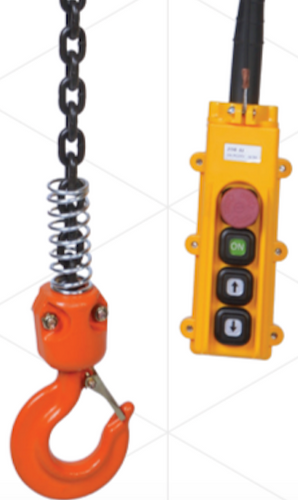

• Low-Voltage Pendant Control: Includes a 24V push-button pendant for user safety and straightforward control.
• Forged Suspension Hook: Heavy-duty top hook enables quick attachment to fixed supports or compatible trolleys.

Specifications

• Model: TEH-1-010-15
• Brand: Atlas Lifting & Rigging
• Rated Capacity: 1 Ton (2,200 lbs)
• Lift Height: 15 ft
• Lifting Speed: Single speed (~16 feet per minute; confirm per motor configuration)
• Load Chain: Grade 80 alloy steel, black oxide finish
• Brake Type: Electromagnetic load brake
• Motor Protection: Thermal overload protection
• Control Voltage: 24V pendant control
• Mounting Type: Hook suspension
• Enclosure Rating: IP54 (dust/splash resistant)
• Duty Cycle: 30% ED (intermittent use)
• Weight: Approx. 100–110 lbs (based on configuration)
• Power Supply: Standard voltage options available (specify upon ordering)
• Warranty: 3-Year Limited
• Country of Origin: China

The TEH-1-010-15 electric chain hoist provides powerful lifting performance with the added benefit of extended reach. Engineered for efficiency and durability, it is an ideal choice for professionals requiring reliable hoisting in dynamic industrial settings.
