ALR Titon Electric Chain Hoist – 1 Ton Capacity | 15-Foot Lift | Three-Phase

Product Overview

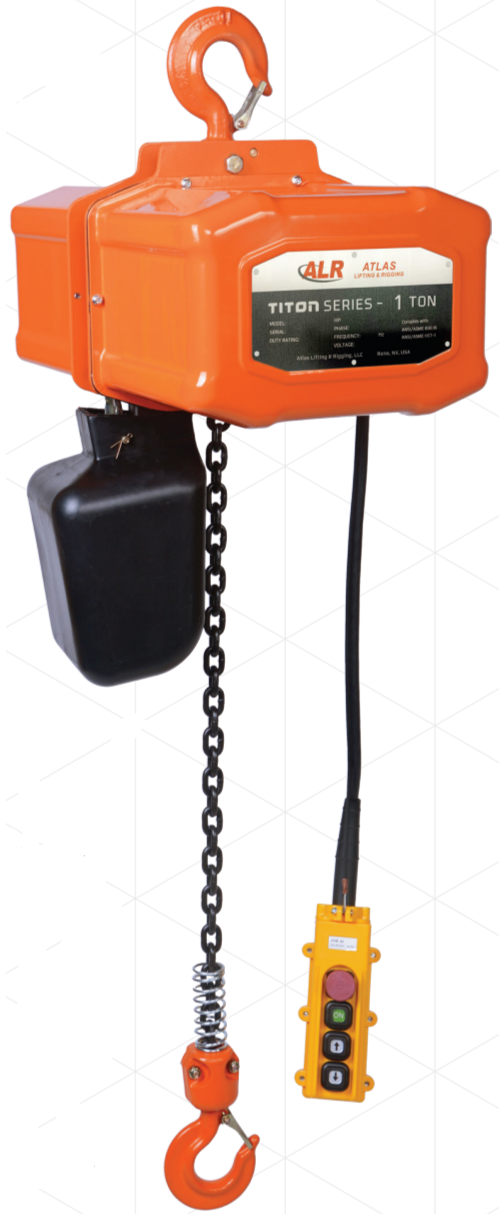

Atlas Titon Electric Chain Hoist – TEH-3-010-15

1 Ton Capacity | 15-Foot Lift | Three-Phase | Single Speed

The Atlas TEH-3-010-15 Titon Electric Chain Hoist delivers dependable performance and extended reach for moderate to heavy lifting tasks in many industrial and commercial environments. Hoist has a 1-ton (2,200 lbs) rated capacity and a 15-foot lift height, this hoist is well-suited for operations requiring safe, vertical movement of heavy loads. Its rugged build, precision controls, and integrated safety systems ensure both operator protection and equipment longevity.

Features

• 1 Ton Lifting Capacity: Built to lift loads up to 2,200 lbs with controlled precision.
• Extended 15-Foot Lift Height: Accommodates higher ceilings or elevated pick-and-place applications.
• Grade 80 Alloy Steel Chain: Black oxide-coated chain for high strength and resistance to wear and corrosion.
• Three-Phase Power: Designed for consistent performance in continuous-duty environments.
• Electromagnetic Load Brake: Automatically engages for secure load holding, even during power loss.
• 24V Low-Voltage Pendant Control: Enhances operator safety with responsive, ergonomic controls.
• Forged Hook Suspension: Heavy-duty top hook for secure, easy mounting to beams or trolley systems.
• Sealed Housing (IP54): Protects motor and electronics from dust and water spray.

Specifications

• Model: TEH-3-010-15
• Rated Capacity: 1 Ton (2,200 lbs)
• Lift Height: 15 feet
• Lifting Speed: Approx. 13–16 feet per minute (single speed)
• Load Chain: Grade 80 alloy steel, black oxide finish
• Brake System: Electromagnetic load brake
• Motor Protection: Thermal overload protection
• Pendant Control: 24V low-voltage, push-button pendant
• Suspension Type: Top hook
• Enclosure Rating: IP54 (dust and splash resistant)
• Duty Cycle: 30% ED (intermittent duty)
• Power Supply: Three-phase (voltage specified upon order)
• Approximate Weight: 120–140 lbs
• Warranty: 3-Year Limited
• Country of Origin: China

The TEH-3-010-15 offers a balance of lifting power, reach, and reliability—making it a trusted choice for overhead material handling in workshops, factories, and warehouse settings.
