ALR Titon Electric Chain Hoist – 1 Ton Capacity | 30-Foot Lift | Three-Phase

Product Overview

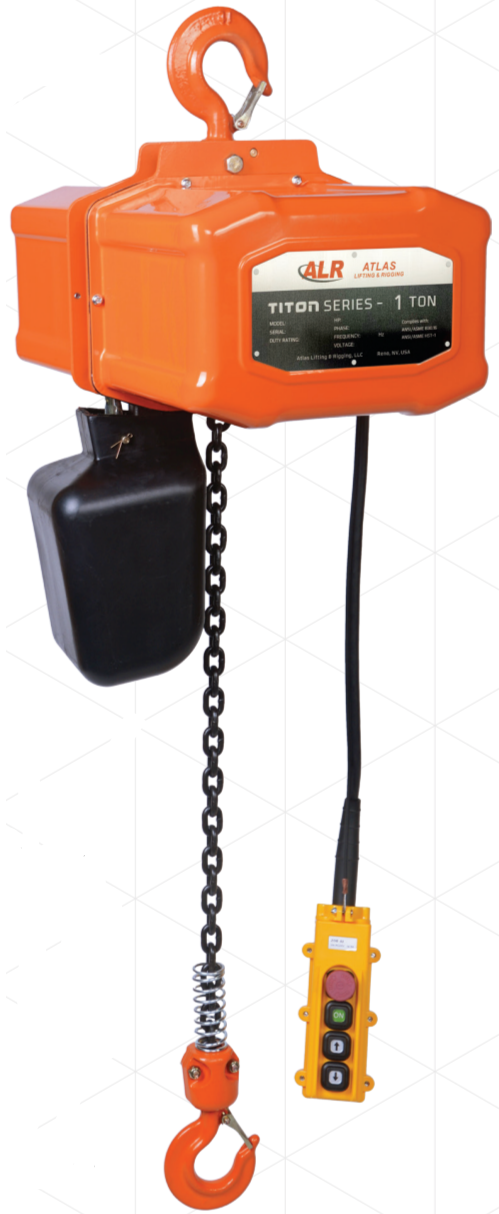

Atlas Titon Electric Chain Hoist – TEH-3-010-30

1 Ton Capacity | 30-Foot Lift | Three-Phase | Single Speed

The Atlas TEH-3-010-30 Titon Electric Chain Hoist is built for industrial-grade lifting applications that require extended vertical reach and reliable performance. Hoist has a 1-ton (2,200 lbs) lifting capacity and a 30-foot lift height. This hoist is perfect for overhead lifting tasks in tall workspaces such as warehouses, maintenance bays, and fabrication facilities. Built for industry with a robust motor, safety-focused braking system, and high-strength chain, this unit ensures dependable operation in demanding conditions.

Features

• 1 Ton Rated Capacity: Lifts loads up to 2,200 lbs safely and efficiently.
• Extended 30-Foot Lift Height: Provides extra reach for tall structures and elevated work areas.
• Grade 80 Alloy Load Chain: Black oxide finish offers enhanced strength, durability, and corrosion resistance.
• Heavy-Duty Three-Phase Motor: Designed for industrial use with thermal overload protection for longevity and safety.
• Electromagnetic Load Brake: Automatically engages to hold the load during lifting or power interruption securely.

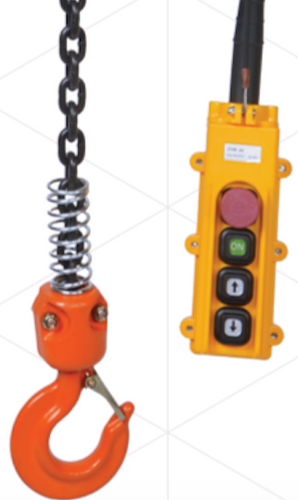

• Ergonomic Pendant Control: 24V low-voltage push-button pendant ensures safe and responsive control.
• Forged Steel Suspension Hook: Allows easy and secure mounting to a fixed beam clamp or trolley.
• IP54-Rated Enclosure: Sealed housing protects components from dust and moisture in industrial environments.

Specifications

• Model: TEH-3-010-30
• Rated Capacity: 1 Ton (2,200 lbs)
• Lift Height: 30 feet
• Lifting Speed: Approx. 13–16 feet per minute (single speed)
• Load Chain: Grade 80 alloy steel, black oxide coated
• Brake System: Electromagnetic
• Motor Protection: Thermal overload protection
• Pendant Control: 24V low-voltage, push-button control
• Suspension Type: Top hook
• Enclosure Rating: IP54 (dust and splash resistant)
• Duty Cycle: 30% ED (intermittent duty)
• Power Supply: Three-phase (voltage to be specified at order)
• Approximate Weight: 140–160 lbs
• Warranty: 3-Year Limited
• Country of Origin: China

The TEH-3-010-30 offers a powerful and extended-lift solution for industrial users who need long reach, operational safety, and consistent lifting performance in overhead applications.
