ALR Titon Electric Chain Hoist – 1/2 Ton Capacity | 30-Foot Lift | Three-Phase

Product Overview

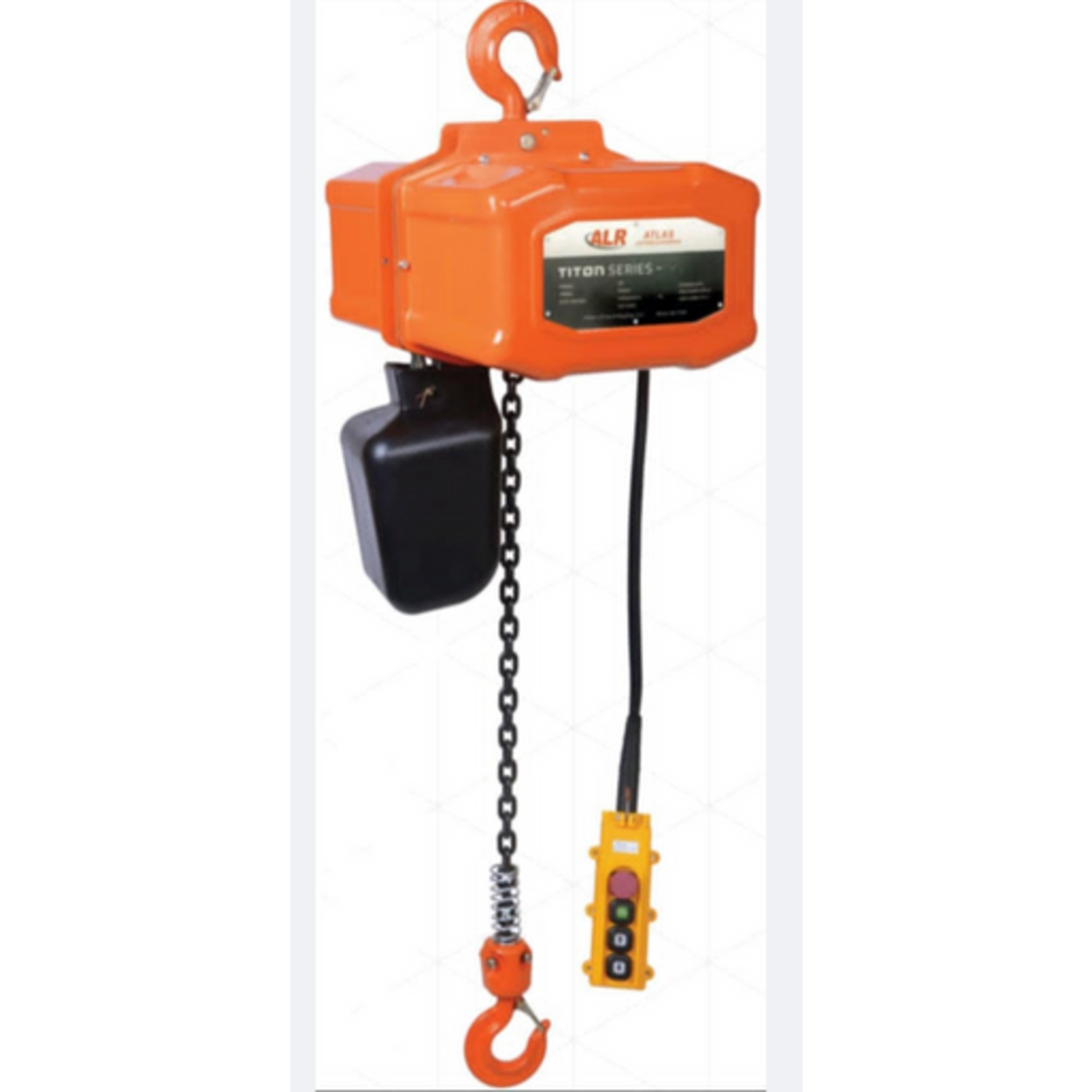

Atlas Titon Electric Chain Hoist – TEH-3-005-30

1/2 Ton Capacity | 30-Foot Lift | Three-Phase

The Atlas TEH-3-005-30 Titon Electric Chain Hoist is built to deliver extended vertical reach and dependable lifting performance for light-duty industrial applications. With a rated capacity of 1/2 ton (1,100 lbs) and a 30-foot lift, this model is ideal for operations in facilities with high ceilings or deep work zones. Designed with industrial-grade materials and safety in mind, the TEH-3-005-30 ensures precise control, operator protection, and long-term reliability.

Features

• 1/2 Ton Load Capacity: Rated for safe and efficient lifting of up to 1,100 lbs.
• Extended 30-foot Lift Height: Suitable for elevated work areas and taller lifting requirements.
• Durable Load Chain: Grade 80 alloy steel with a black oxide finish for added strength and corrosion resistance.
• Three-Phase Motor: Heavy-duty electric motor with thermal overload protection for safe, continuous operation.
• Electromagnetic Load Brake: Provides secure load holding during lifting and automatically engages during power loss.

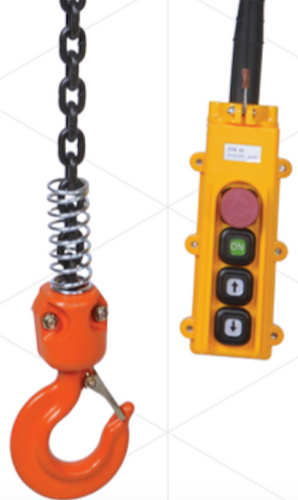

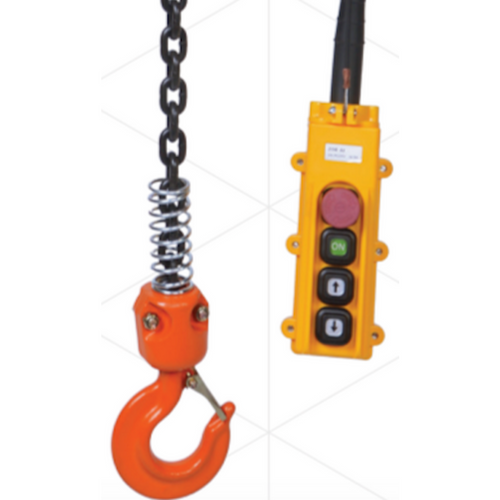

• Ergonomic Pendant Control: 24V low-voltage push-button pendant for safe and responsive operation.
• Forged Hook Suspension: Heavy-duty top hook ensures secure attachment to beam clamps or trolley systems.
• IP54-Rated Housing: Protects internal components from dust and moisture in industrial environments.

Specifications

• Model: TEH-3-005-30
• Rated Capacity: 1/2 Ton (1,100 lbs)
• Lift Height: 30 feet
• Lifting Speed: Approx. 16 feet per minute (single speed)
• Load Chain: Grade 80 alloy steel, black oxide coated
• Brake System: Electromagnetic load brake
• Motor Protection: Thermal overload protection
• Pendant Control: 24V low-voltage, push-button pendant
• Suspension: Top hook
• Enclosure Rating: IP54 (dust and splash resistant)
• Duty Cycle: 30% ED (intermittent duty)
• Power Supply: Three-phase (voltage to be specified upon order)
• Approximate Weight: 130–150 lbs
• Warranty: 3-Year Limited
• Country of Origin: China

The TEH-3-005-30 is ideal for users who require a long-lift, low-capacity hoist that operates reliably under consistent use. Its combination of reach, durability, and safety makes it a practical choice for elevated material handling applications across various industries.
