ALR Titon Electric Chain Hoist – 1/2 Ton Capacity | 15-Foot Lift | Three-Phase

Product Overview

Atlas Titon Electric Chain Hoist – TEH-3-005-15

1/2 Ton Capacity | 15-Foot Lift | Three-Phase | Single Speed

The Atlas TEH-3-005-15 Titon Electric Chain Hoist offers reliable and efficient lifting for lighter industrial tasks that require extended reach. With a 1/2 ton (1,100 lbs) load capacity and a 15-foot lift height, this unit is ideal for maintenance facilities, small production environments, and general material handling. The hoist is equipped with a rugged three-phase motor and safety-focused components for dependable operation in continuous-use settings.

Features

• 1/2 Ton Load Capacity: Designed to lift up to 1,100 lbs with consistent and secure performance.
• Extended 15-foot Lift Height: Ideal for applications needing additional vertical clearance.
• Industrial Load Chain: Grade 80 alloy steel chain with black oxide finish for long-term durability and corrosion resistance.
• Three-Phase Motor: Heavy-duty motor with thermal overload protection for reliable operation during frequent use.
• Electromagnetic Load Brake: Automatically engages for secure load holding during lifting or in case of power loss.

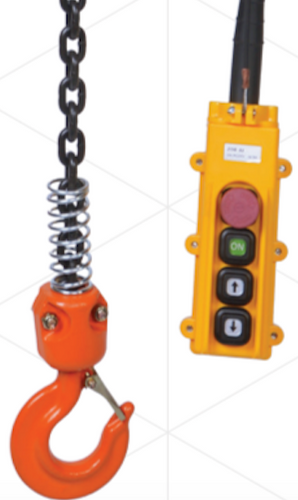

• 24V Pendant Control: Ergonomic low-voltage control pendant enhances safety and ease of operation.
• Forged Hook Suspension: Allows quick and secure mounting to a fixed beam clamp or compatible trolley.
• Enclosed IP54 Housing: Protects internal components from dust and water spray in industrial environments.

Specifications

• Model: TEH-3-005-15
• Rated Capacity: 1/2 Ton (1,100 lbs)
• Lift Height: 15 feet
• Lifting Speed: Approx. 16 FPM (single speed; may vary slightly by configuration)
• Load Chain: Grade 80 alloy steel, black oxide coated
• Brake Type: Electromagnetic
• Motor Protection: Thermal overload protection included
• Pendant Control: 24V low-voltage, push-button pendant
• Mounting: Hook suspension
• Enclosure Rating: IP54 (dust- and splash-resistant)
• Duty Cycle: 30% ED (intermittent duty)
• Power Supply: Three-phase (voltage specified upon order)
• Approximate Weight: 100–120 lbs
• Warranty: 3-Year Limited
• Country of Origin: China

The TEH-3-005-15 is engineered to deliver dependable, long-reach lifting in environments where space, control, and safety are key. Its extended lift and compact form factor make it a reliable asset in a wide range of industrial lifting applications.
