Product Overview

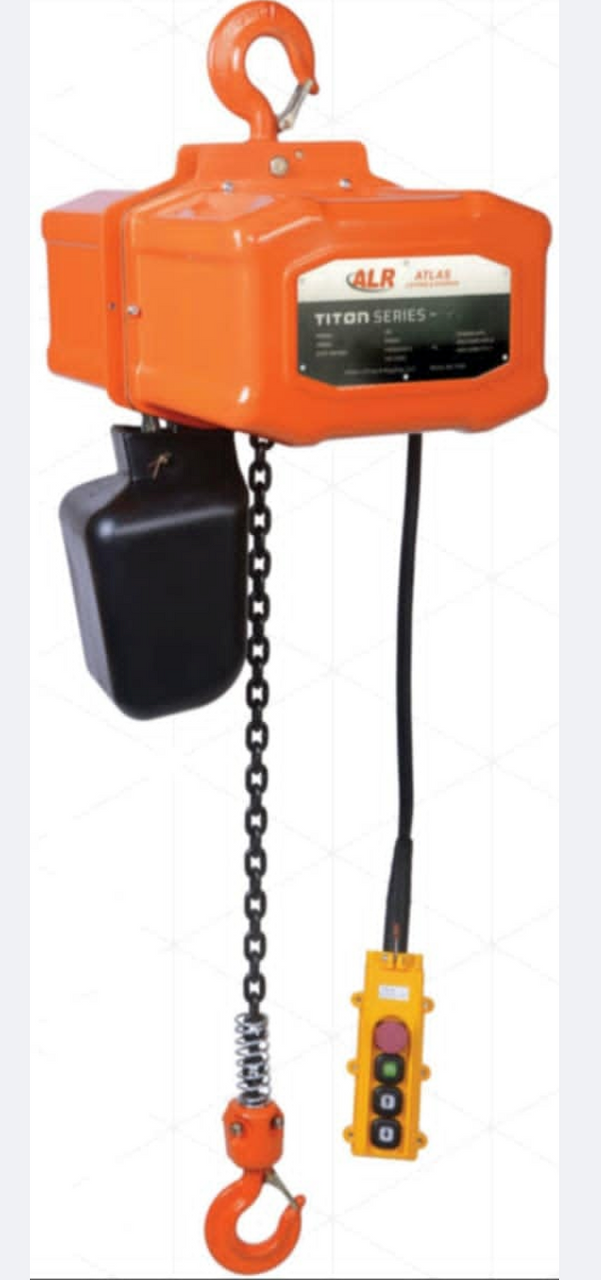

Atlas Titon Electric Chain Hoist – TEH-3-005-20
1/2 Ton Capacity | 20-Foot Lift | Three-Phase | Single Speed
The Atlas TEH-3-005-20 Titon Electric Chain Hoist is engineered for precision, safety, and reliability in light-duty industrial lifting applications requiring extended vertical reach. With a rated capacity of 1/2 ton (1,100 lbs) and a 20-foot lift height, this hoist is ideal for overhead lifting in maintenance shops, warehouses, light manufacturing, and assembly areas. Its durable components, thermal-protected motor, and user-safe controls make it a dependable solution for consistent daily use.
Features
- 1/2 Ton Rated Capacity: Capable of safely lifting up to 1,100 lbs, ideal for lighter material handling applications.
- 20-Foot Lift Height: Accommodates greater vertical clearance requirements in high-ceiling environments.
- Grade 80 Load Chain: High-strength alloy steel with a black oxide finish for superior wear and corrosion resistance.
- Three-Phase Electric Motor: Built for continuous duty, featuring thermal overload protection to prevent overheating.
- Electromagnetic Load Brake: Automatically engages to hold loads during lifting and power interruption securely.
- Low-Voltage Pendant Control: 24V ergonomic push-button pendant ensures operator safety and responsive control.
- Forged Steel Hook Suspension: A sturdy top hook provides secure mounting to beam clamps or compatible trolleys.
- Enclosed IP54 Housing: Offers resistance to dust and water spray, ensuring performance in industrial settings.
Specifications
- Model: TEH-3-005-20
- Rated Capacity: 1/2 Ton (1,100 lbs)
- Lift Height: 20 feet
- Lifting Speed: Approx. 16 feet per minute (single speed; may vary slightly)
- Load Chain: Grade 80 alloy steel, black oxide coated
- Brake System: Electromagnetic
- Motor Protection: Thermal overload protection
- Control Voltage: 24V low-voltage pendant control
- Suspension Type: Top hook
- Enclosure Rating: IP54 (dust and splash resistant)
- Duty Cycle: 30% ED (intermittent duty)
- Power Supply: Three-phase (voltage specified upon ordering)
- Approximate Weight: 110–130 lbs
- Warranty: 3-Year Limited
- Country of Origin: China
The TEH-3-005-20 combines extended lifting height, industrial-grade durability, and operator-focused safety features in a compact electric hoist that performs reliably in various light-duty overhead lifting scenarios.
