Product Overview
Atlas Titon Electric Chain Hoist – TEH-3-030-30
3 Ton Capacity | 30-Foot Lift | Three-Phase | Single Speed
The Atlas TEH-3-030-30 Titon Electric Chain Hoist is a robust, high-capacity lifting solution designed for applications that require significant vertical reach and consistent performance. Hoist has a 3-ton (6,600 lbs) load capacity and an extended 30-foot lift height, this hoist is designed for heavy industrial use in environments such as construction yards, assembly plants, and steel fabrication shops. Built to deliver dependable operation, it combines precision lifting, rugged construction, and essential safety features.
Features
- 3 Ton Load Capacity: Handles up to 6,600 lbs with confidence, suitable for demanding overhead lifting operations.
- Extended 30-Foot Lift Height: Accommodates taller structures and deeper lifting zones with ease.
- Durable Load Chain: Grade 80 alloy steel with a black oxide finish for premimum strength and corrosion resistance.
- Three-Phase Industrial Motor: Designed for reliability in continuous-use applications, protected by thermal overload sensors.
- Electromagnetic Load Brake: Ensures secure load holding during lifting and power interruptions.

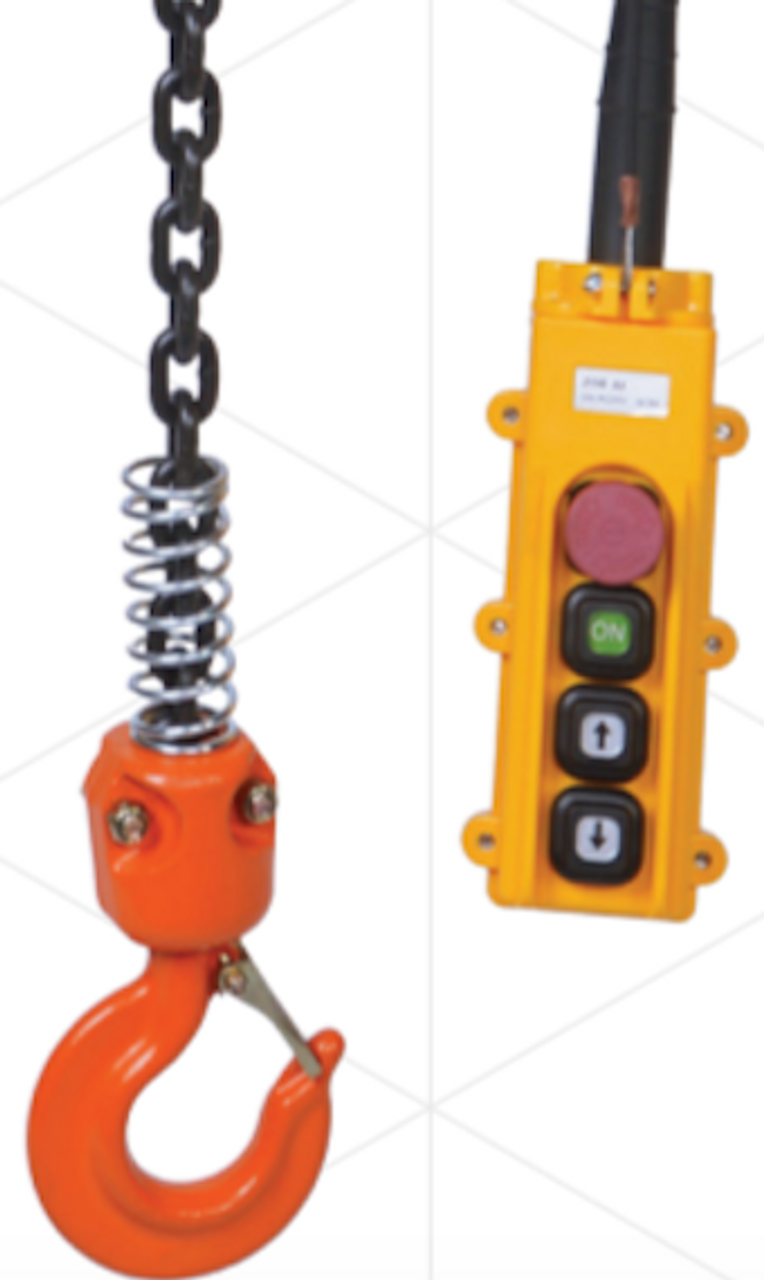

- Ergonomic 24V Pendant Control: Low-voltage push-button pendant for safe and responsive operator control.
- Forged Top Hook Suspension: Compatible with fixed installations and trolley-mounted systems.
- IP54 Rated Housing: Shields internal components from dust and water spray for improved longevity.
Specifications
- Model: TEH-3-030-30
- Rated Capacity: 3 Ton (6,600 lbs)
- Lift Height: 30 feet
- Lifting Speed: Approx. 6–8 feet per minute (single speed)
- Load Chain: Grade 80 alloy steel, black oxide coated
- Brake Type: Electromagnetic
- Motor Protection: Thermal overload
- Pendant Control: 24V low-voltage, push-button
- Suspension: Top hook
- Enclosure Rating: IP54 (dust and splash resistant)
- Duty Cycle: 30% ED (intermittent use)
- Power Supply: Three-phase (voltage specified at order)
- Approximate Weight: 270–290 lbs
- Warranty: 3-Year Limited
- Country of Origin: China
The TEH-3-030-30 is built for extended vertical lifting in high-clearance settings, delivering industrial-grade strength, operational control, and safety for the most challenging hoisting tasks.
