ALR Titon Electric Chain Hoist ‚ 1 Ton Capacity | 20-Foot Lift | Three-Phase

Write a Review
$2,766.59
SKU: TEH-3-010-20
Availability: In stock
Weight: 134.64 LBS
Width: 18.90 (in)
Height: 16.10 (in)
Depth: 22.00 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
ALR Titon Electric Chain Hoist ‚ 1 Ton Capacity | 20-Foot Lift | Three-Phase

ALR Titon Electric Chain Hoist ‚ 1 Ton Capacity | 20-Foot Lift | Three-Phase

$2,766.59

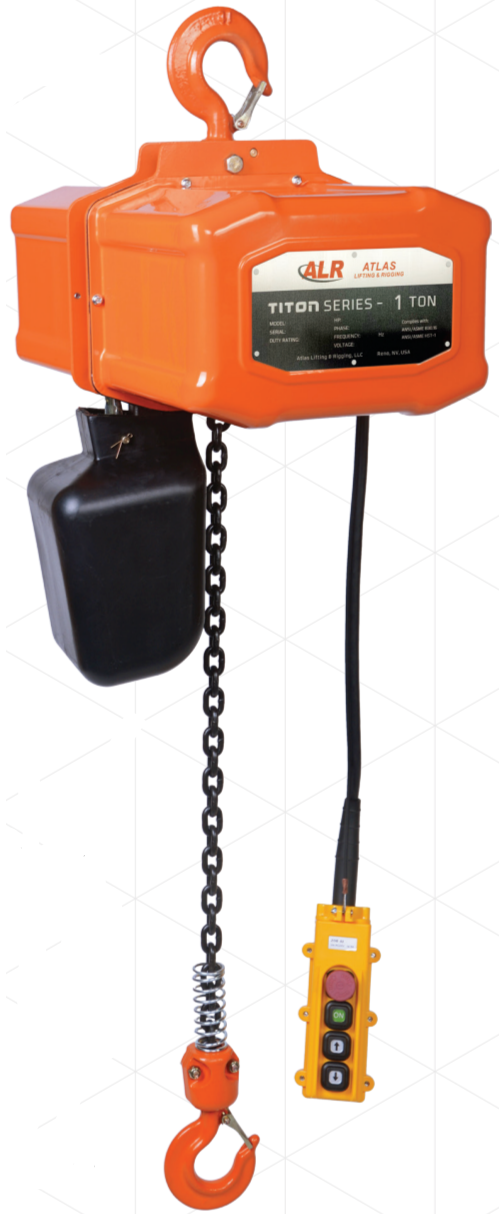

Atlas Titon Electric Chain Hoist – TEH-3-010-20

1 Ton Capacity | 20-Foot Lift | Three-Phase | Single Speed

The Atlas TEH-3-010-20 Titon Electric Chain Hoist is engineered to meet the demands of extended-reach lifting in industrial and commercial applications. With a 1-ton (2,200 lbs) rated capacity and a 20-foot lift height, this hoist combines strength, safety, and efficiency to support elevated or hard-to-reach lifting operations. Designed with heavy-duty components and built-in safeguards, it delivers consistent performance in rigorous work environments.

Features

  • 1 Ton Lifting Capacity: Supports safe and efficient lifting of up to 2,200 lbs for various material handling needs.
  • 20-Foot Lift Height: Ideal for facilities with high ceilings, pits, or mezzanine-level equipment handling.
  • Industrial-Grade Load Chain: Grade 80 alloy steel with black oxide finish for maximum strength and corrosion resistance.
  • Robust Three-Phase Motor: Provides smooth, continuous operation; includes thermal overload protection.
  • Electromagnetic Load Brake: Automatically engages for reliable load holding, even in the event of power failure.

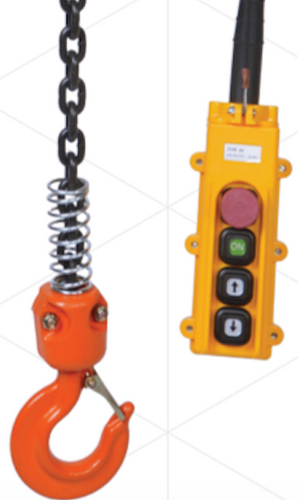

  • Ergonomic Pendant Control: 24V low-voltage push-button pendant for safe, user-friendly operation.
  • Heavy-Duty Hook Suspension: Forged steel top hook for secure mounting to fixed points or trolley systems.
  • IP54-Rated Enclosure: Offers protection against dust, debris, and moisture in demanding workspaces.

Specifications

  • Model: TEH-3-010-20
  • Rated Capacity: 1 Ton (2,200 lbs)
  • Lift Height: 20 feet
  • Lifting Speed: Approx. 13–16 feet per minute (single speed)
  • Load Chain: Grade 80 alloy steel, black oxide coated
  • Brake System: Electromagnetic
  • Motor Protection: Integrated thermal overload protection
  • Pendant Control: 24V low-voltage, push-button control
  • Suspension Type: Top hook
  • Enclosure Rating: IP54 (dust and splash resistant)
  • Duty Cycle: 30% ED (intermittent use)
  • Power Supply: Three-phase (voltage specified at time of order)
  • Approximate Weight: 130–150 lbs
  • Warranty: 3-Year Limited
  • Country of Origin: China

The TEH-3-010-20 is a reliable choice for users requiring higher vertical reach while maintaining lifting power, precision, and safety in demanding environments such as fabrication shops, industrial plants, and warehouse operations.
