ALR Titon Electric Chain Hoist – 1/2 Ton Capacity | 30-Foot Lift | Single Phase

Product Overview

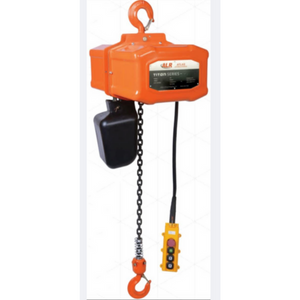

Atlas Titon Electric Chain Hoist – TEH-1-005-30

1/2 Ton Capacity | 30-Foot Lift | Single Phase | Single Speed

The Atlas TEH-1-005-30 Titon Electric Chain Hoist is a compact, high-reach lifting solution designed for single-phase power environments. Hoist has a lifting capacity of 1/2 ton (1,100 lbs) and a 30-foot vertical lift height, this hoist is well-suited for workshops, warehouses, and maintenance operations that require reliable overhead lifting across extended heights. Built with precision gearing, a durable load chain, and user-safe controls, it delivers efficient lifting performance with minimal maintenance.

Features

• 1/2 Ton Lifting Capacity: Suitable for lifting loads up to 1,100 lbs for a wide range of light- to medium-duty applications.
• 30-Foot Lift Height: Extended reach allows for overhead work in high-clearance areas or with taller equipment.
• Single Phase Power: Operates on standard 115V or 230V current (specify at time of order), ideal for facilities without three-phase power.
• Grade 80 Alloy Load Chain: Black oxide-coated chain resists wear and corrosion under heavy use.
• Electromagnetic Load Brake: Automatically engages to hold the load in position safely.
• 24V Push-Button Pendant Control: Provides safe, responsive control with ergonomic design.
• Top Hook Suspension: Easily mounts to fixed points or beam trolley systems.
• IP54-Rated Enclosure: Offers protection against dust and water spray for improved equipment life.
• Compact, Low Headroom Design: Ideal for limited-clearance areas.

Specifications

• Model: TEH-1-005-30
• Rated Capacity: 1/2 Ton (1,100 lbs)
• Lift Height: 30 feet
• Lifting Speed: Approx. 13–16 FPM (single speed)
• Load Chain: Grade 80 alloy steel, black oxide coated
• Brake Type: Electromagnetic
• Motor Protection: Built-in thermal overload
• Pendant Control: 24V low-voltage, push-button
• Suspension Type: Top hook
• Enclosure Rating: IP54
• Duty Cycle: 30% ED
• Power Supply: Single-phase (115V or 230V)
• Approximate Weight: 110–125 lbs
• Warranty: 3-Year Limited
• Country of Origin: China

The TEH-1-005-30 offers a durable and practical hoisting solution that meets the requirements of extended vertical lift and single-phase power compatibility. It’s a dependable choice for service operations, facility maintenance, and overhead lifting in light industrial settings.
