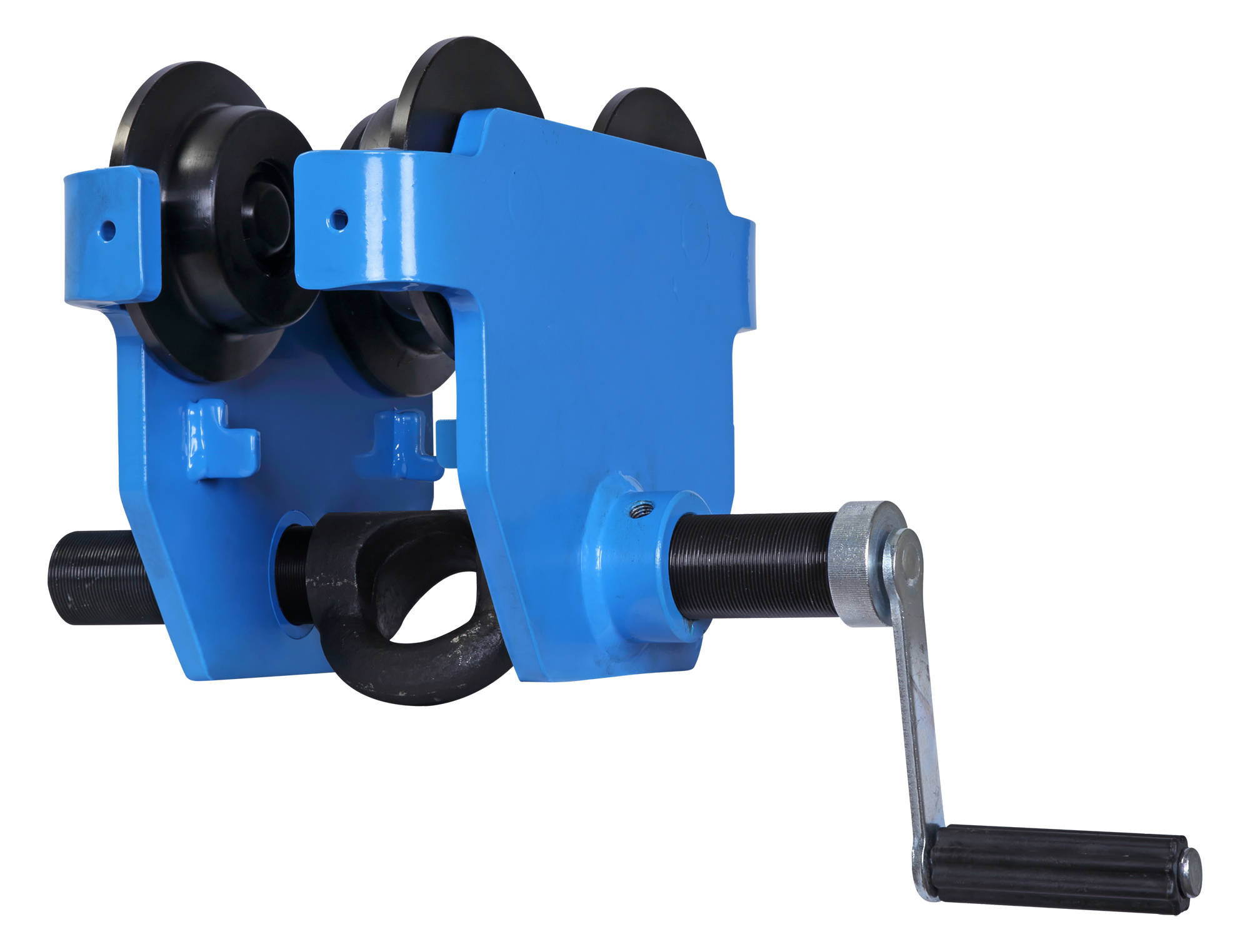

Tractel Corso Overhead Push Trolley – 5 Ton Capacity with Crank Flange Adjustment & Extended Hanging Bar

The Tractel Corso 5 Ton Overhead Push Trolley with extended hanging bar is built to handle the most demanding lifting applications where precision and reliability are essential. Designed for heavy loads up to 10,000 lbs. (5 tons), this heavy-duty trolley ensures smooth, stable travel across overhead beams while providing additional clearance between the hoist and beam flange. The extended hanging bar makes it ideal for use in facilities where headroom or load positioning flexibility is a concern.

The Corso 5 Ton trolley features a convenient crank handle for quick flange adjustments that make it easy to fit onto beams without needing to take the unit off. Its dual-threaded traverse bar allows for precise adjustments, ensuring perfect alignment even when loaded. This simple adjustment saves time during setup and helps keep everything safe and stable.

The trolley is built with machined steel rollers and sealed ball bearings for smooth movement and lasting durability. Built with steel and coated to resist corrosion, it’s ready for tough conditions in manufacturing plants, construction sites, or maintenance areas.

With Tractel's solid engineering and safety standards, the Corso 5 Ton Push Trolley includes an extended hanging bar for the strength and control you need during overhead lifting.

Key Features and Benefits

• High Load Capacity: Rated for 5 Ton (10,000 lbs.)
• Extended Hanging Bar: Increases hook clearance for improved hoist positioning
• Crank Handle Flange Adjustment: Fast, precise beam fitting without dismantling
• Even Load Distribution: Dual-threaded traverse bar for balanced alignment
• Smooth Operation: Machined steel rollers with sealed bearings for consistent travel
• Rugged Construction: Heavy-duty steel frame with durable corrosion-resistant coating
• Low Headroom Design: Maximizes lift height in confined areas
• Safety Focused: Includes locking nut and end stops to prevent derailment
• Maintenance Friendly: Simple design for easy inspection and service

Technical Specifications

• Model: Corso Overhead Push Trolley with Extended Hanging Bar
• Part No.: 23389K
• Working Load Limit (WLL): 5 Ton / 10,000 lbs.
• Flange Width Range: 3.9" – 8.7" (100 – 220 mm)
• Adjustment Type: Crank handle with dual-threaded traverse bar
• Rollers: Machined steel with sealed ball bearings
• Hanging Bar: Extended design for increased clearance
• Material: High-strength painted steel
• Operation: Manual push trolley
• Headroom: Low-profile construction
• Safety Components: End stops and safety locking nut
• Compliance: Meets ASME B30.20 standards
