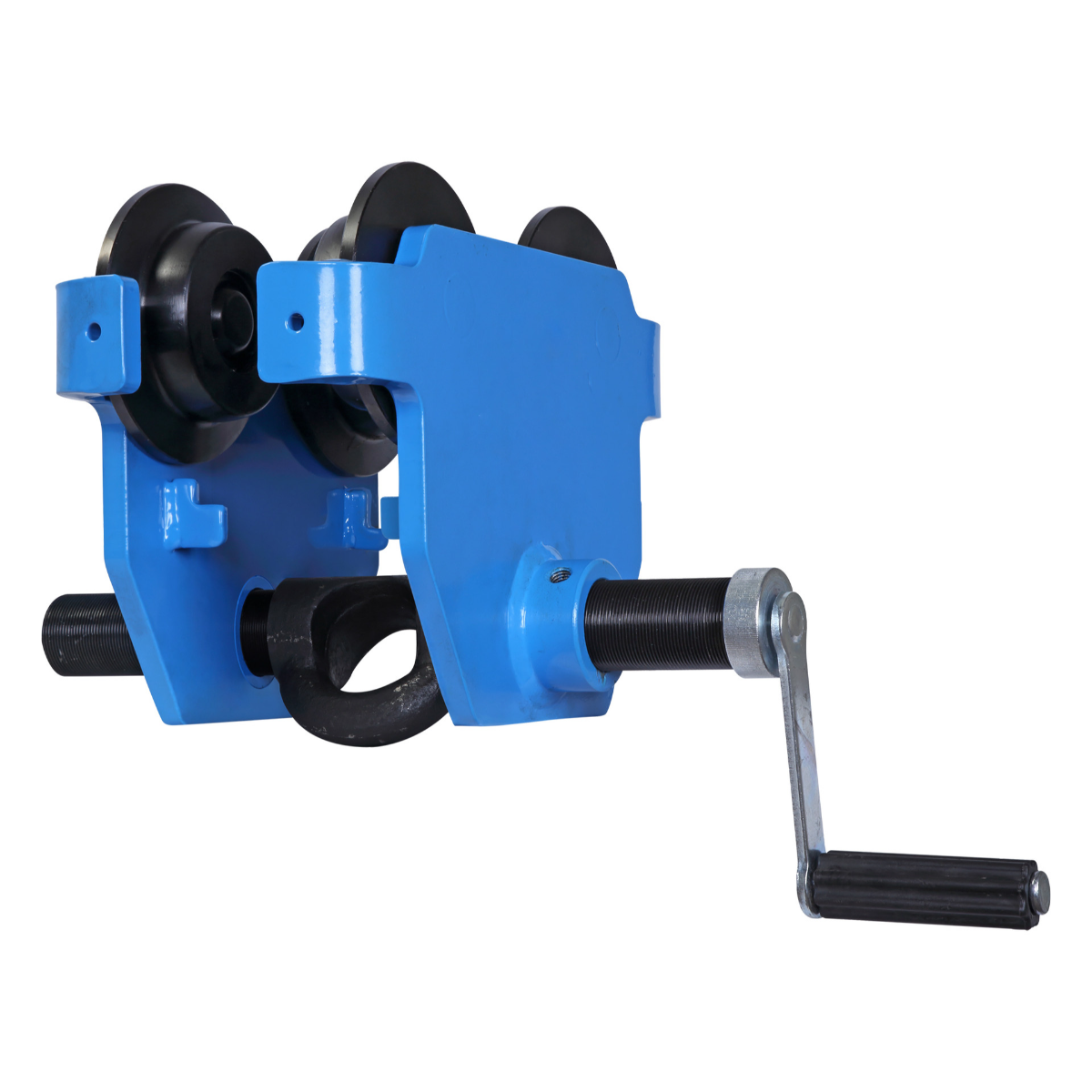

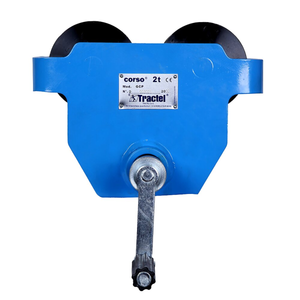

Tractel Corso Overhead Push Trolley – 2 Ton Capacity, Flange Adjustment with Crank

The Tractel Corso 2 Ton Overhead Push Trolley delivers solid performance and dependable control for lifting and material handling applications. Built for professional use, this trolley makes it easy to move heavy loads smoothly along an overhead beam while maintaining maximum stability and safety.

Its crank handle flange adjustment system allows users to have fast and precise fitting to various I-beam sizes. The double-threaded traverse bar ensures equal tightening on both sides that keeps the trolley centered and secure during use. The heavy-duty steel rollers, supported by precision bearings, provide effortless rolling motion and consistent travel under full load.

With a compact frame and design, the Corso 2 Ton trolley is ideal for pairing with manual or powered hoists in workshops, plants, or construction environments. It’s engineered to handle demanding work conditions while offering the reliability and safety that Tractel equipment is known for.

Key Features and Benefits

• High Capacity Performance – Supports up to 2 Tons (4,000 lbs.) for heavy-duty lifting tasks.
• Crank Handle Flange Adjustment – Quick, precise, and safe beam width adjustment for easy installation.
• Smooth, Stable Travel – Steel rollers on sealed bearings ensure consistent motion under load.
• Balanced, Secure Fit – Dual-threaded bar keeps the trolley centered and prevents uneven adjustment.
• Safety Focused Design – Built-in end stops and locking nut help prevent accidental derailment.
• Durable Steel Frame – Painted finish resists wear, corrosion, and harsh environments.
• Compact and Efficient – Low headroom construction maintains maximum lifting height.

Technical Specifications

• Model: Corso Overhead Push Trolley
• Part No.: 23329
• Working Load Limit (WLL): 2 Ton / 4,000 lbs.
• Flange Width Range: 2.9" – 8.7" (74 – 220 mm)
• Adjustment Type: Crank handle with double-threaded traverse bar
• Rollers: Machined steel rollers on ball bearings
• Construction: Painted steel with reinforced side plates
• Headroom: Low profile design
• Safety Features: End stops and safety locking nut
• Operation Type: Manual push trolley
• Compliance: ASME B30.20
