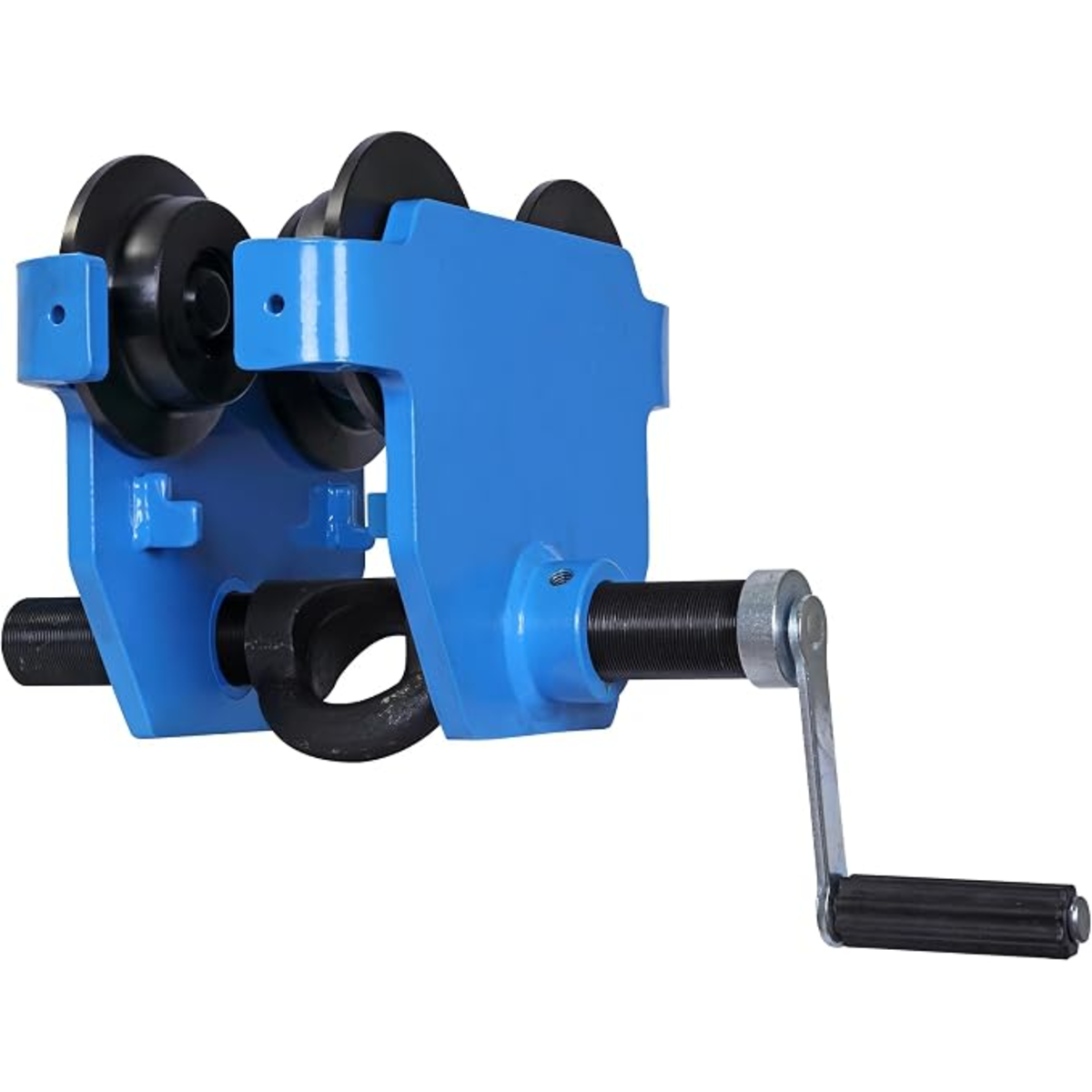

Tractel Corso Overhead Push Trolley – 2 Ton Capacity with Crank Flange Adjustment & Extended Hanging Bar

The Tractel Corso 2 Ton Overhead Push Trolley with an extended hanging bar delivers the strength, adjustability, and dependability professionals need for everyday material handling. Built for loads up to 4,000 lbs. (2 tons), this rugged trolley provides smooth, precise travel along an overhead I-beam while offering additional clearance for hoists and lifting devices.

Equipped with a crank handle flange adjustment system, the Corso trolley makes beam fitting simple and precise—without the need for disassembly. The double-threaded traverse bar ensures that both sides of the trolley adjust evenly, maintaining proper alignment and stability under load. The extended hanging bar gives extra spacing below the beam, ideal for operations that require a lower hook position or additional working height.

Heavy-duty steel rollers with sealed bearings allow for smooth, quiet travel, even under full load. The low-headroom design helps maximize available lifting height, while the painted steel frame provides lasting resistance to wear, impact, and corrosion.

With its durable build and thoughtful engineering, the Corso 2 Ton Push Trolley is perfectly suited for industrial facilities, workshops, maintenance operations, and construction applications that demand reliable overhead load handling.

Key Features and Benefits

• Load Capacity: 2 Ton (4,000 lbs.) for medium to heavy lifting applications
• Crank Handle Flange Adjustment: Enables quick and accurate fitting to different beam widths
• Extended Hanging Bar: Provides added clearance for hoists and lifting attachments
• Balanced and Secure: Dual-threaded traverse bar maintains even alignment on both sides
• Smooth Travel: Steel rollers with sealed bearings ensure quiet, consistent motion
• Durable Construction: Heavy-gauge painted steel body built for industrial use
• Low Headroom Design: Preserves vertical lifting height in restricted areas
• Enhanced Safety: End stops and locking nut prevent derailment during operation

Technical Specifications

• Model: Corso Overhead Push Trolley with Extended Hanging Bar
• Part No.: 23329K
• Working Load Limit (WLL): 2 Ton / 4,000 lbs.
• Flange Width Range: 2.6" – 8.7" (66 – 220 mm)
• Adjustment Type: Crank handle with double-threaded traverse bar
• Rollers: Machined steel with sealed ball bearings
• Hanging Bar: Extended type for hoist clearance
• Frame Material: Painted steel
• Operation Type: Manual push
• Headroom: Low profile
• Safety Features: End stops and safety locking nut
• Compliance: ASME B30.20
