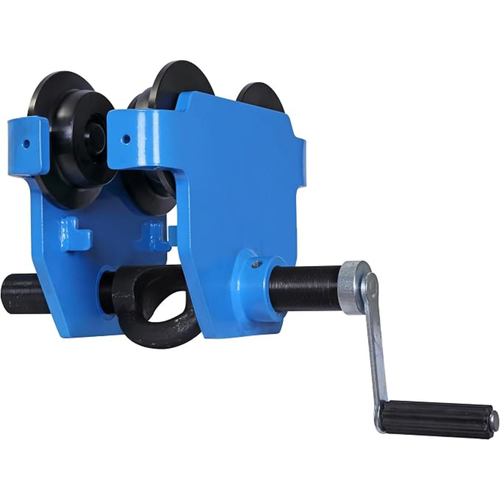

Tractel Corso Overhead Push Trolley – 1 Ton Capacity with Crank Flange Adjustment & Extended Hanging Bar

The Tractel Corso 1 Ton Overhead Push Trolley with an extended hanging bar is built for reliability, and versatility in everyday lifting applications. Designed to move suspended loads smoothly along an overhead I-beam, this trolley combines Tractel's trusted engineering with user-friendly adjustment and a durable, long-lasting design.

With a 2,000 lb. (1 ton) capacity, the Corso trolley handles a wide range of lifting needs—from small industrial setups to maintenance and fabrication environments. The crank handle flange adjustment system gives users precise fitting to various beam widths without having to disassemble the trolley. Its threaded traverse bar ensures that both sides adjust evenly, maintaining stability under load.

The extended hanging bar offers added clearance for applications that require additional headroom or separation between the beam and the lifting hook. Heavy-duty steel rollers with sealed bearings ensure smooth travel, reduced friction, and quiet operation, while the low headroom design maximizes available lift height.

Built from rugged steel, the Corso 1 Ton Trolley provides the reliability and strength that professionals demand for consistent performance in demanding work environments.

Key Features and Benefits

• Load Capacity: 1 Ton (2,000 lbs.) for versatile industrial and maintenance use
• Crank Handle Flange Adjustment: Enables fast, accurate fitting to multiple beam widths
• Extended Hanging Bar: Provides additional clearance for hoists and lifting gear
• Balanced Design: Dual-threaded traverse bar ensures even, stable alignment
• Smooth Rolling Motion: Steel rollers with sealed bearings deliver effortless movement
• Low Headroom Profile: Maximizes lifting space in tight areas
• Durable Construction: Heavy-duty painted steel resists corrosion and impact
• Enhanced Safety: Built-in end stops and locking nut prevent accidental derailment

Technical Specifications

• Model: Corso Overhead Push Trolley with Extended Hanging Bar
• Part No.: 23319K
• Working Load Limit (WLL): 1 Ton / 2,000 lbs.
• Flange Width Range: 2.3" – 8.7" (58 – 220 mm)
• Adjustment Type: Crank handle with double-threaded traverse bar
• Rollers: Machined steel with sealed ball bearings
• Hanging Bar: Extended design for added hoist clearance
• Frame Material: Painted steel
• Operation Type: Manual push
• Headroom: Low profile
• Safety Features: End stops and safety locking nut
• Compliance: ASME B30.20
