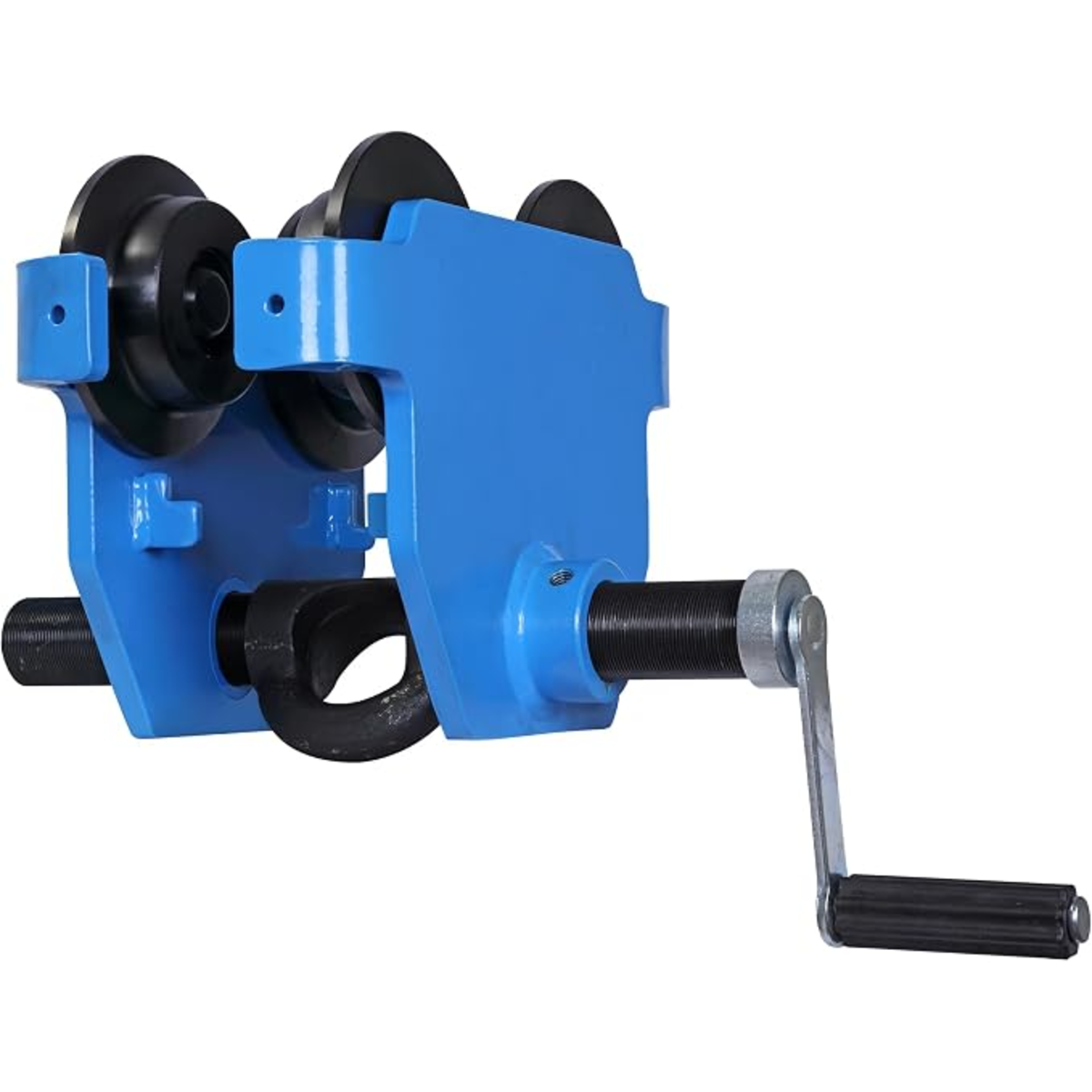

Tractel Corso Overhead Push Trolley – 3 Ton Capacity with Crank Flange Adjustment & Extended Hanging Bar

The Tractel Corso 3 Ton Overhead Push Trolley with extended hanging bar is built for industrial lifting applications where strength, precision, and safety matter most. Engineered to handle up to 6,000 lbs. (3 tons), this trolley provides effortless travel along overhead beams and offers increased clearance for hoists and lifting attachments thanks to its extended hanging bar design.

Featuring a crank handle flange adjustment, this model allows for fast and accurate beam fitting without dismantling the unit. Its double-threaded traverse bar adjusts both sides evenly for perfect alignment and balance under load. The extended hanging bar is ideal for setups requiring additional headroom or lower hook positioning that can provide flexibility in various lifting environments.

Built for long-term use, the Corso trolley includes high-strength steel rollers with sealed bearings for smooth and consistent movement. The steel frame is coated for durability and corrosion resistance, and gives reliable performance in workshops, warehouses, maintenance facilities, and construction settings.

When precision and dependability are important, the Corso 3 Ton Push Trolley stands out as the best operator-friendly solution for safe overhead material handling.

Key Features and Benefits

• Heavy-Duty Capacity: Rated for 3 Ton (6,000 lbs.) loads
• Extended Hanging Bar: Provides additional space between the beam and hoist for better clearance
• Crank Handle Adjustment: Simple, tool-free flange width adjustment for quick installation
• Even Alignment: Dual-threaded traverse bar keeps trolley balanced under load
• Smooth Travel: Machined steel rollers with sealed bearings for quiet, fluid operation
• Built for Longevity: Heavy-duty steel construction with durable protective coating
• Low Headroom Profile: Maximizes vertical lifting height in restricted spaces
• Enhanced Safety: Includes end stops and safety locking nut to prevent derailment

Technical Specifications

• Model: Corso Overhead Push Trolley with Extended Hanging Bar
• Part No.: 23379K
• Working Load Limit (WLL): 3 Ton / 6,000 lbs.
• Flange Width Range: 3.2" – 8.7" (82 – 220 mm)
• Adjustment Type: Crank handle with dual-threaded traverse bar
• Rollers: Precision-machined steel with sealed ball bearings
• Hanging Bar: Extended clearance design
• Material: Painted steel frame
• Operation Type: Manual push
• Headroom: Low-profile configuration
• Safety Components: End stops and locking nut
• Standards: Conforms to ASME B30.20
