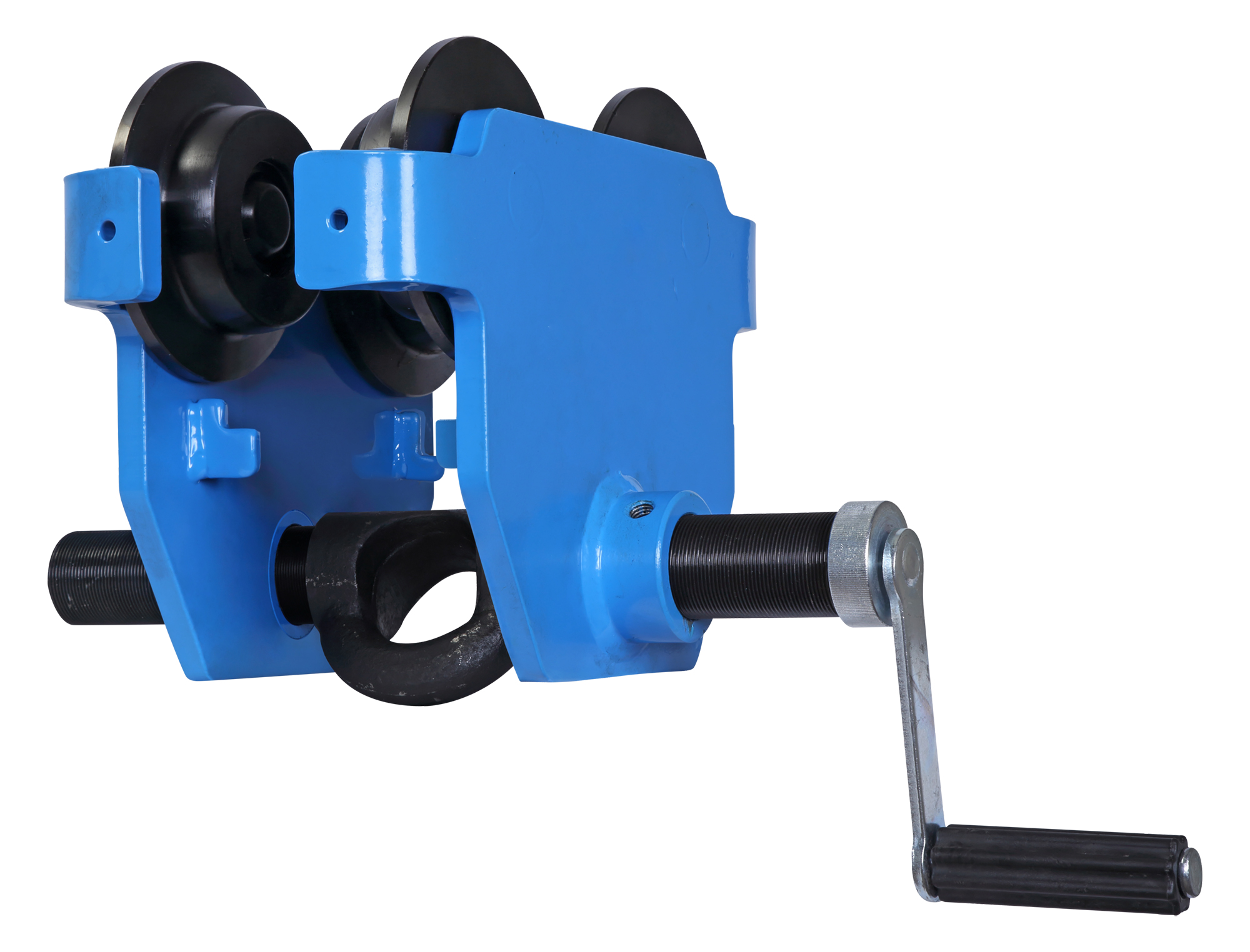

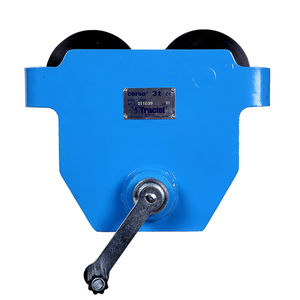

Tractel Corso Overhead Push Trolley – 3 Ton Capacity, Flange Adjustment with Crank

The Tractel Corso 3 Ton Overhead Push Trolley was built for strength, and reliability in lifting and material handling operations. Built with Tractel's commitment to quality, this trolley ensures safe and smooth travel of suspended loads along an overhead beam, making it an excellent choice for workshops, warehouses, and industrial maintenance environments.

Equipped with a crank handle flange adjustment system, the Corso trolley allows quick and accurate fitting to a wide range of I-beam sizes without disassembly. The double-threaded adjustment bar ensures even tightening on both sides, maintaining the trolley's perfect alignment and balance during operation. Its machined steel rollers with sealed bearings deliver effortless, consistent movement—even when operating at full load.

This model combines durable steel construction, a compact profile, and dependable performance. It's built to handle applications where safety and control are key. Whether used with manual or powered hoists, the Corso 3 Ton trolley provides the reliability and ease of use professionals expect from Tractel equipment.

Key Features and Benefits

• Heavy-Duty Load Handling – Rated for up to 3 Tons (6,000 lbs.) for demanding industrial lifting tasks.
• Crank Handle Flange Adjustment – Allows precise beam width setting without removing the trolley from the beam.
• Even, Balanced Adjustment – Dual-thread design ensures equal alignment on both sides.
• Smooth Rolling Motion – Machined steel rollers on sealed bearings provide stable, quiet travel.
• Durable Steel Frame – Built for longevity with a corrosion-resistant painted finish.
• Safety Focused Design – Includes end stops and a safety locking nut to prevent derailment.
• Low Headroom Profile – Maximizes available lifting height and fits tight spaces.

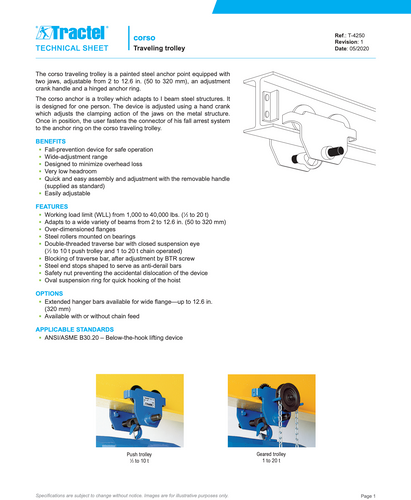

Technical Specifications

• Model: Corso Overhead Push Trolley
• Part No.: 23379
• Working Load Limit (WLL): 3 Ton / 6,000 lbs.
• Flange Width Range: 2.9" – 8.7" (74 – 220 mm)
• Adjustment Type: Crank handle with double-threaded traverse bar
• Rollers: Machined steel with sealed ball bearings
• Frame Material: Heavy-duty painted steel
• Operation Type: Manual push
• Headroom: Low-profile design
• Safety Features: End stops and safety locking nut
• Compliance: ASME B30.20
