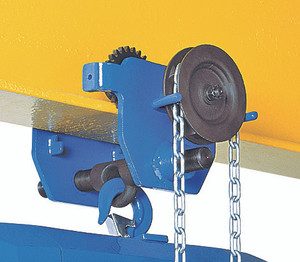

Tractel Corso Overhead Geared Trolley – 5 Ton with 8 ft. Hand Chain and Crank Flange Adjustment

Write a Review
$1,682.99
SKU: 23369
Weight: 121.00 LBS
Width: 14.70 (in)
Height: 15.80 (in)
Depth: 7.60 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel Corso Overhead Geared Trolley – 5 Ton with 8 ft. Hand Chain and Crank Flange Adjustment

Tractel Corso Overhead Geared Trolley – 5 Ton with 8 ft. Hand Chain and Crank Flange Adjustment

$1,682.99

Tractel Corso Overhead Geared Trolley – 5 Ton with 8 ft. Hand Chain and Crank Flange Adjustment

The Tractel Corso 5 Ton Overhead Geared Trolley is made for heavy-duty lifting and precise load positioning in industrial, maintenance, and construction environments. Supporting loads up to 10,000 lbs. (5 tons), this trolley features an 8-foot hand chain for smooth, controlled movement and a crank-style flange adjustment for quick, accurate installation on a variety of beam sizes.

Built for industry with high-strength steel and a corrosion-resistant finish, the trolley provides durability for frequent use in demanding conditions. Machined steel rollers with sealed bearings ensure smooth travel along the beam, while the dual-threaded traverse bar maintains even alignment on both sides. Safety features, including end stops and a locking nut, help prevent derailment and ensure secure operation.

With a flange width adjustment range of 5.5 to 8.7 inches, this trolley can adapt to most standard I- or H-beams. Its low-profile design maximises vertical lift height, making it ideal for environments with limited headroom. Combining a reliable geared hand chain mechanism with solid construction, the Corso 5 Ton Trolley delivers precise, dependable performance for heavy overhead lifting applications.

Specifications

  • Model: Corso Overhead Geared Trolley
  • Part No.: 23369
  • Capacity: 5 Ton (10,000 lbs.)
  • Hand Chain Length: 8 ft.
  • Flange Adjustment Range: 5.5 – 8.7 in. (140 – 220 mm)
  • Adjustment Type: Crank handle with dual-threaded traverse bar
  • Construction: High-strength steel with corrosion-resistant coating
  • Rollers: Machined steel with sealed ball bearings
  • Operation: Manual geared travel via hand chain
  • Safety Features: End stops and locking nut to prevent derailment
  • Headroom: Low-profile design for maximum lift height
  • Standards: Conforms to ASME B30.17
Tractel offers various warranties depending on the product, with a general warranty of 24 months on products manufactured by the seller for defects in materials and workmanship. Some specific products, like the tralift™ TT Electric chain hoist, may have a longer 3-year warranty. The warranty typically excludes issues from improper storage, assembly, maintenance, use, or unauthorized modifications and does not cover normal wear or paints.  Key Aspects of a Tractel Warranty:  Duration: The standard warranty period is 24 months (two years) from the date on the order invoice. Coverage: The warranty covers defects in materials and workmanship. Exclusions: The warranty generally does not cover: Improper storage or assembly. Insufficient maintenance or failure to follow operating instructions. Abnormal working conditions. Normal wear and tear. Willful or negligent damage. Modifications or repairs by personnel not certified by Tractel. Paints and coatings. How to Get More Information:  Check Product-Specific Details:  Always refer to the product's documentation or visit the Tractel US website for the exact warranty terms for your specific item. Contact Tractel:  For clarification on a specific warranty or to inquire about a potential claim, contact Tractel directly.
