                Tractel Corso Overhead Geared Trolley – 1 Ton with 8 ft. Hand Chain and Crank Flange Adjustment
Tractel Corso Overhead Geared Trolley – 1 Ton with 8 ft. Hand Chain and Crank Flange Adjustment

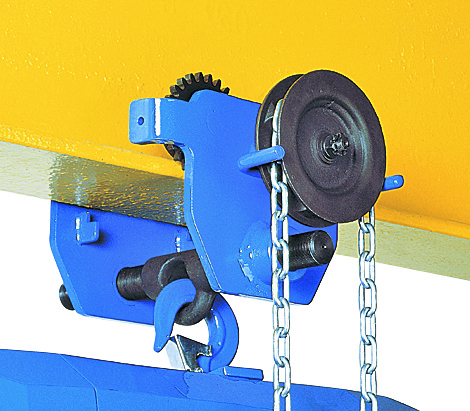

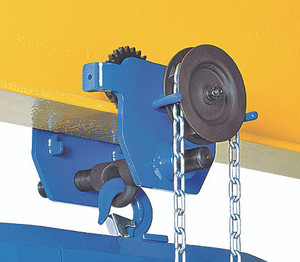

The Tractel Corso 1 Ton Overhead Geared Trolley delivers reliable, controlled movement for lifting and material handling applications. Designed for smooth operation and long-term durability, it features a hand-chain drive for easy load positioning and a crank-style flange adjustment that allows for quick and precise fitting to most standard I- or H-beams.
Built from high-strength steel, this trolley supports up to 2,000 lbs. (1 ton) and runs on machined steel rollers with sealed ball bearings for consistent travel under load. The geared hand chain drive is supplied with an 8-foot hand chain that allows operators to move loads with accuracy and minimal effort. The dual-threaded traverse bar ensures both sides adjust evenly for balanced alignment, while end stops and a safety locking nut help prevent accidental derailment during use.
The Corso geared trolley offers a flange width adjustment range of approximately 2.6 to 8.7 inches, that makes it versatile for multiple beam sizes. Its small, low-headroom design helps maximize lifting height, and the corrosion-resistant finish stands up well to industrial environments.
Overall, this unit provides the dependable, easy-to-control movement needed for safe, efficient overhead lifting — backed by Tractel’s quality engineering standards.
Specifications
- Model: Corso Overhead Geared Trolley
- Part No.: 23339
- Capacity: 1 Ton (2,000 lbs.)
- Hand Chain Length: 8 ft.
- Flange Adjustment Range: 2.6 – 8.7 in. (66 – 220 mm)
- Adjustment Type: Crank handle with dual-threaded traverse bar
- Construction: High-strength steel with corrosion-resistant finish
- Rollers: Machined steel with sealed ball bearings
- Operation: Manual geared travel using a hand chain
- Safety Features: End stops and locking nut to prevent derailment
- Headroom: Low-profile design for maximum lift height
- Standards: Meets ASME B30.17 and related safety requirements
