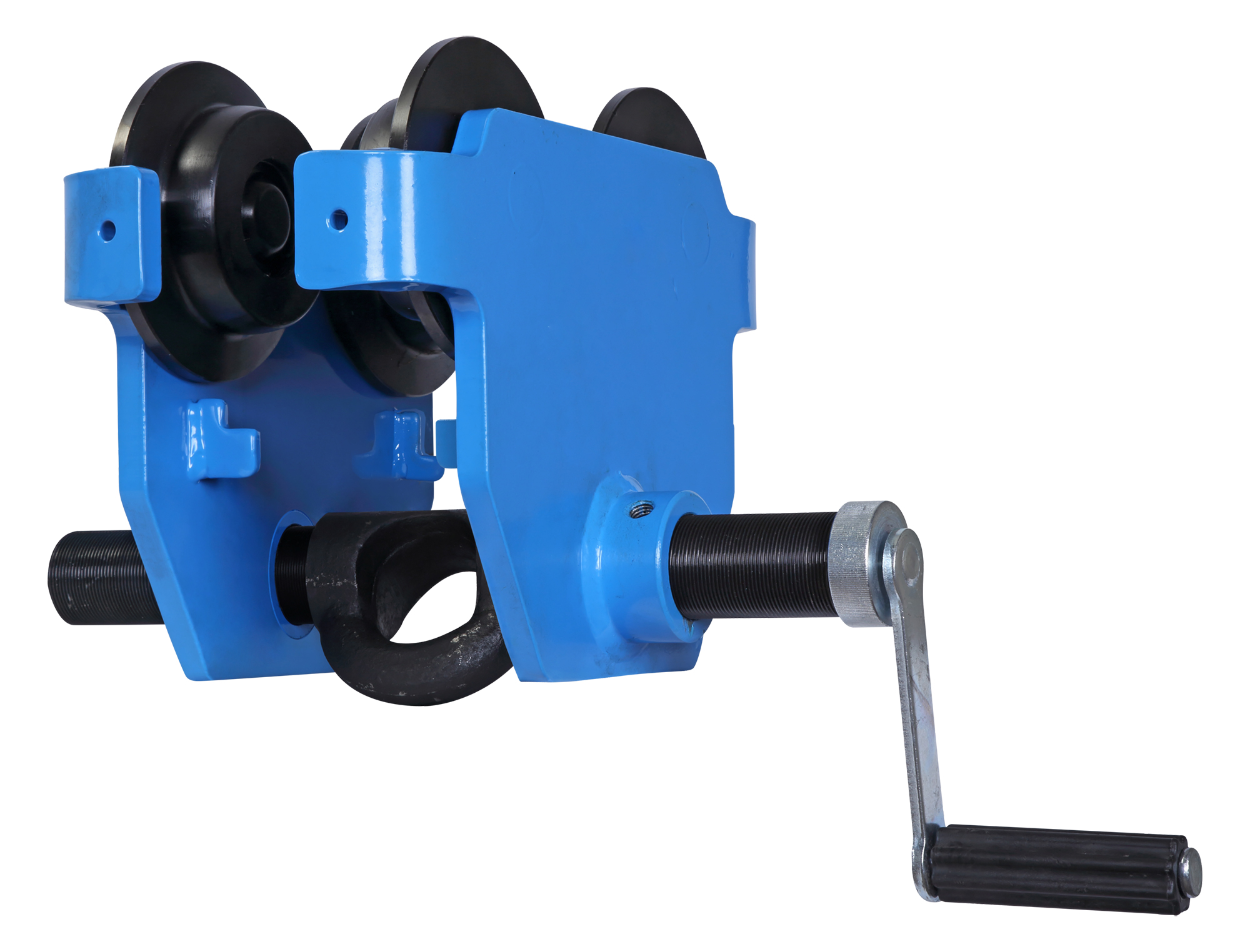

Tractel Corso Overhead Push Trolley – 1/2 Ton Capacity, Flange Adjustment with Crank

Product Description

The Tractel Corso 1/2 Ton Overhead Push Trolley offers dependable, smooth, and secure load movement along a beam. Built for professional lifting environments, this trolley provides a precise fit and stable travel for hoists, chain blocks, or lifting devices that require effortless manual positioning.

Designed with a crank handle flange adjustment, the Corso trolley ensures quick, safe setup on a wide range of I-beam sizes. The double-threaded traverse bar allows even adjustments on both sides of the beam. This allows users to have accurate centering and smooth rolling. Steel rollers with precision bearings provide consistent movement, while the end stops and safety nut prevent accidental slippage or derailment during operation.

Compact and easy to install, this push trolley is ideal for workshops, maintenance facilities, and construction applications where reliability and efficiency matter. Every Corso unit is built from high-quality painted steel for long service life and corrosion resistance, backed by Tractel’s reputation for excellence in lifting and handling solutions.

Key Features and Benefits:

• Reliable 1/2 Ton (1,000 lb) Capacity – Built to handle small to moderate loads safely and consistently.
• Crank Handle Adjustment – Easy and precise flange setting for a secure fit on a variety of beam widths.
• Smooth Manual Travel – Hardened steel rollers on bearings deliver quiet, low-resistance operation.
• Enhanced Safety – Equipped with end stops and a locking safety nut to prevent accidental displacement.
• Compact Design – Low headroom profile preserves valuable lifting height.
• Durable Construction – Painted steel finish protects against wear and corrosion in demanding environments.
• Quick Installation – Adjustable jaws and removable handle simplify setup and relocation.

Technical Specifications:

• Model: Corso Overhead Push Trolley
• Part No.: 23309
• Working Load Limit (WLL): 1/2 Ton / 1,000 lbs.
• Flange Width Range: 2" – 8.7" (50 – 220 mm)
• Adjustment Type: Manual crank with double-threaded traverse bar
• Rollers: Steel rollers on precision bearings
• Construction: Painted steel body with reinforced flanges
• Headroom: Low profile
• End Stops: Fitted with safety nuts and anti-derail protection
• Operation: Push-type manual trolley
• Compliance: Meets ASME B30.20 standards
