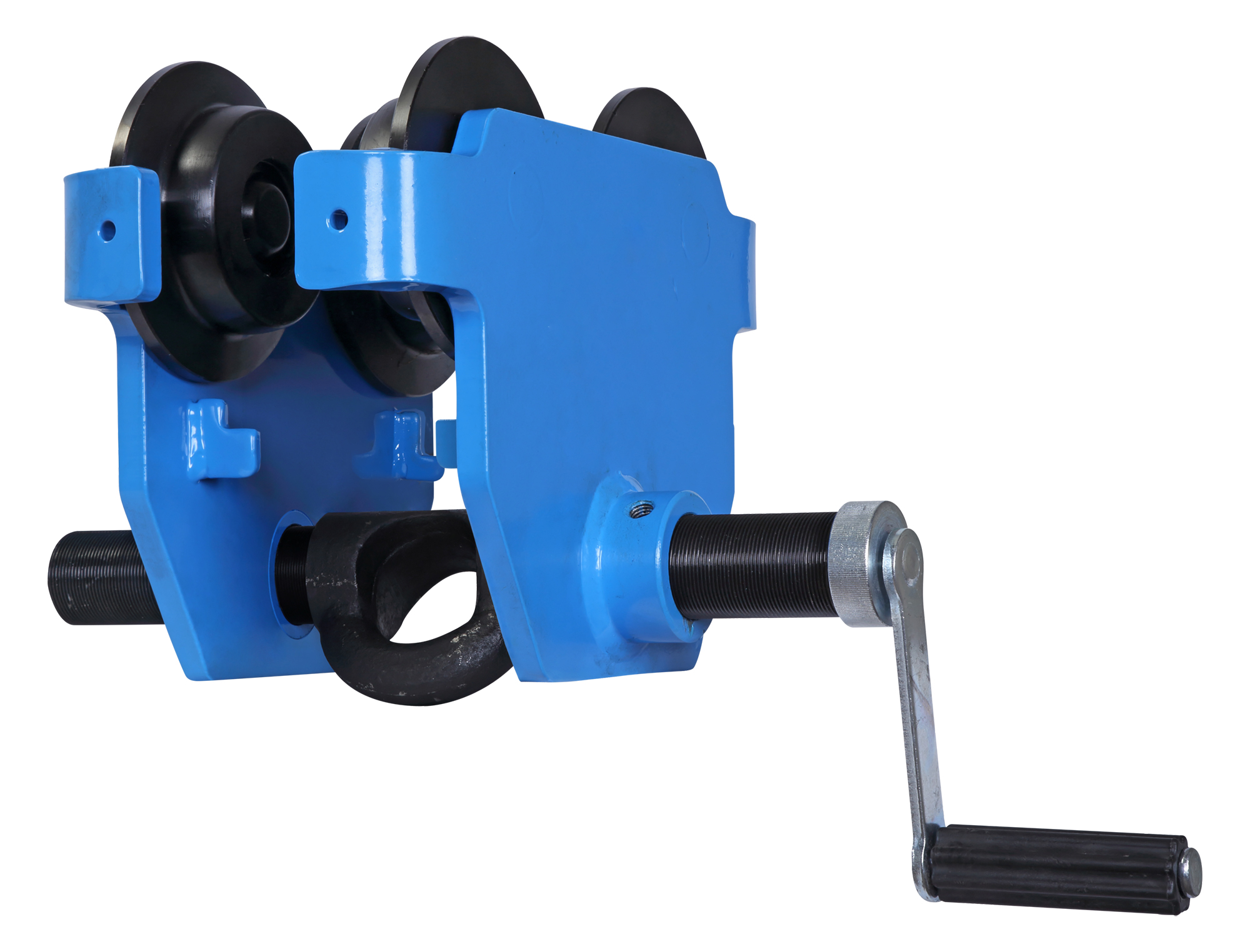

Tractel Corso Overhead Push Trolley – 5 Ton Capacity, Flange Adjustment with Crank

Product Description

The Tractel Corso 5 Ton Overhead Push Trolley provides excellent load handling for industrial lifting and rigging applications. Designed for longevity and service, this trolley allows users smooth and precise movement of suspended loads along an overhead I-beam. With a rugged all-steel build and precision-machined components, it’s ideal for environments that demand both strength and reliability.

A standout feature of this model is the crank handle flange adjustment system, which makes it fast and simple to fit the trolley to various beam widths without dismantling the unit. The double-threaded adjustment bar ensures even, parallel movement on both sides, maintaining perfect beam alignment and balance under load.

The Corso trolley’s machined steel rollers with sealed bearings provide smooth, quiet rolling motion while minimizing maintenance needs. Its low headroom design maximizes vertical lift space, while built-in safety features such as end stops and locking nuts help prevent derailment and enhance operator confidence.

Durable, precise, and safe—the Corso 5 Ton Trolley delivers Tractel’s trusted quality for efficient material handling in demanding industrial operations.

Key Features and Benefits

• High-Capacity Performance – Supports loads up to 5 Tons (10,000 lbs.) for heavy-duty lifting tasks.
• Crank Handle Flange Adjustment – Allows fast and precise width fitting without disassembly.
• Even Load Distribution – Dual-threaded traverse bar keeps both sides aligned evenly on the beam.
• Smooth Travel Operation – Machined steel rollers with sealed bearings ensure quiet, consistent movement.
• Low Headroom Profile – Maximizes available lifting height in tight working spaces.
• Built for Durability – Heavy-duty steel frame with corrosion-resistant painted finish.
• Enhanced Safety Design – Includes safety locking nut and end stops to secure the trolley on the beam.
• Flexible Application – Compatible with manual or powered hoists for varied lifting operations.

Technical Specifications

• Model: Corso Overhead Push Trolley
• Part No.: 23389
• Working Load Limit (WLL): 5 Ton / 10,000 lbs.
• Flange Width Range: 3.9" – 8.7" (98 – 220 mm)
• Adjustment Type: Crank handle with double-threaded traverse bar
• Rollers: Machined steel with sealed ball bearings
• Frame Material: Heavy-duty painted steel
• Operation Type: Manual push
• Headroom: Low-profile design
• Safety Features: End stops and safety locking nut
• Compliance: ASME B30.20
