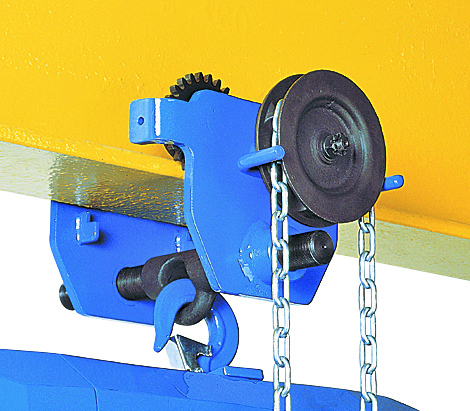

Tractel Corso Overhead Geared Trolley – 5 Ton with 8 ft. Hand Chain, Crank Flange Adjustment & Extended Hanging Bar

The Tractel Corso 5 Ton Overhead Geared Trolley with extended hanging bar is built for heavy-duty lifting where precision and safety are essential. Rated for 10,000 lbs. (5 tons), it provides controlled, reliable movement along overhead beams, making it ideal for industrial, maintenance, and warehouse applications.

Equipped with an 8-foot hand chain, the trolley allows smooth and accurate positioning of heavy loads. The trolleys crank-style flange adjustment gives you quick and precise installation across a wide range of beam widths, while the dual-threaded traverse bar ensures even alignment on both sides. The extended hanging bar increases clearance below the beam, providing flexibility for hoists or other lifting equipment. Machined steel rollers with sealed bearings offer quiet, consistent travel, and end stops with a locking nut prevent accidental derailment.

With a flange width adjustment range of 5.5 to 8.7 inches, the trolley is compatible with most standard I- or H-beams. Trolleys low-profile design maximizes vertical lift height, and high-strength steel construction with corrosion-resistant coating ensures long-lasting performance in demanding environments.

This trolley combines strength, control, and versatility, making it an ideal solution for safely handling heavy loads in a variety of industrial settings.

Specifications

• Model: Corso Overhead Geared Trolley with Extended Hanging Bar
• Part No.: 23369K
• Capacity: 5 Ton (10,000 lbs.)
• Hand Chain Length: 8 ft.
• Flange Adjustment Range: 5.5 – 8.7 in. (140 – 220 mm)
• Adjustment Type: Crank handle with dual-threaded traverse bar
• Construction: High-strength steel with corrosion-resistant coating
• Rollers: Machined steel with sealed ball bearings
• Extended Hanging Bar: Provides added clearance for hoists
• Operation: Manual geared travel via hand chain
• Safety Features: End stops and locking nut to prevent derailment
• Headroom: Low-profile design for maximum lift height
• Standards: Meets ASME B30.17
