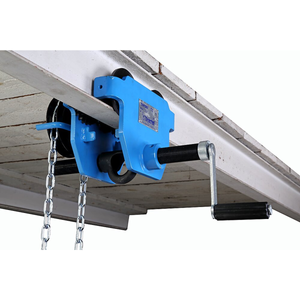

Tractel QS 2T Geared Trolley W/Exthangerbar
Tractel QS 2T Geared Trolley W/Exthangerbar

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    FREE in house engineering and design assistance

  • Wordwide Delivery

    Free shipping on all Harrington orders over 500LBS

Tractel QS 2T Geared Trolley W/Exthangerbar

Write a Review
$1,033.00
$839.31
(You save $193.69 )
SKU: 23349K
Weight: 50.00 LBS
Width: 13.50 (in)
Height: 11.80 (in)
Depth: 5.50 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel QS 2T Geared Trolley W/Exthangerbar

Tractel QS 2T Geared Trolley W/Exthangerbar

$1,033.00
$839.31
(You save $193.69 )
Description

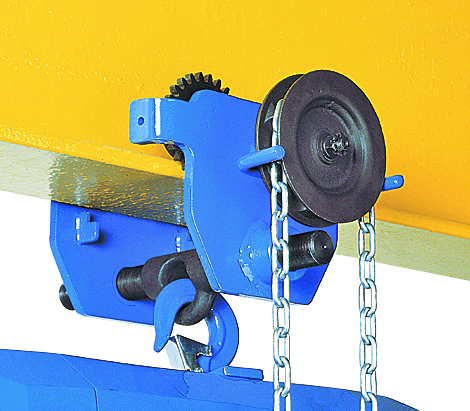

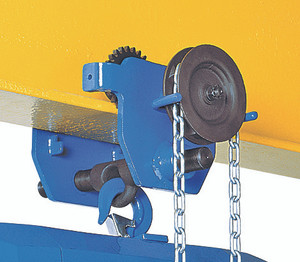

Tractel Corso Overhead Geared Trolley – 2 Ton with 8 ft. Hand Chain, Crank Flange Adjustment & Extended Hanging Bar

The Tractel Corso 2 Ton Overhead Geared Trolley with extended hanging bar is designed for safe, precise load handling in industrial and maintenance settings. Rated for 4,000 lbs. (2 tons), it combines a geared hand chain drive with durable construction, providing reliable, controlled movement for medium-duty overhead lifting.

Equipped with an 8-foot hand chain, the trolley allows smooth, accurate positioning of loads. The trolleys crank-style flange adjustment makes installation quick and precise. The dual-threaded traverse bar ensures even alignment across the beam. The extended hanging bar offers additional clearance for hoists or lifting attachments, increasing flexibility in setups with limited headroom. Machined steel rollers with sealed bearings allow quiet, consistent travel, and end stops with a locking nut enhance operational safety by preventing derailment.

With a flange width adjustment that has a range of 3.9 to 8.7 inches, this trolley fits a wide range of I- or H-beams. Its low-profile design maximizes vertical lifting space, and the high-strength steel frame with corrosion-resistant coating ensures long-term durability even in demanding environments.

This trolley is ideal for workshops, warehouses, manufacturing plants, and other facilities where precise, dependable overhead load positioning is required.

Specifications

  • Model: Corso Overhead Geared Trolley with Extended Hanging Bar
  • Part No.: 23349K
  • Capacity: 2 Ton (4,000 lbs.)
  • Hand Chain Length: 8 ft.
  • Flange Adjustment Range: 3.9 – 8.7 in. (100 – 220 mm)
  • Adjustment Type: Crank handle with dual-threaded traverse bar
  • Construction: High-strength steel with corrosion-resistant coating
  • Rollers: Machined steel with sealed ball bearings
  • Extended Hanging Bar: Provides added clearance for hoists
  • Operation: Manual geared travel via hand chain
  • Safety Features: End stops and locking nut to prevent derailment
  • Headroom: Low-profile design for maximum lift height
  • Standards: Meets ASME B30.17
Warranty Information
All products manufactured by the Seller are covered against defects in materials and workmanship for a period of twenty-four (24) months from the date appearing on the order invoice. The warranty does not cover defects arising because of improper storage, damages resulting from improper assembly after delivery, insufficient maintenance, and failure to follow operating instructions, abnormal working conditions, normal wear or willful or negligent damage. It does not apply to paints and coatings. The warranty does not apply to any product which is modified, altered, repaired or maintained by personnel not certified by the Seller. The Seller's liability is expressly limited to the above-mentioned warranty. Any products or parts shipped as the result of a warranty claim will be invoiced according to the terms and conditions set forth above. That invoice will be due and payable as described in payment terms described above. A credit will be issued only after 1) Fabenco Inc determines the warranty claim is valid, 2) the defective part or product is returned to Fabenco Inc and 3) the equipment is returned within twenty-four (24) months of date sold to the original purchaser. Freight to and from the Fabenco Inc warehouse is the responsibility of the Buyer. Any shipments not prepaid will be refused.
