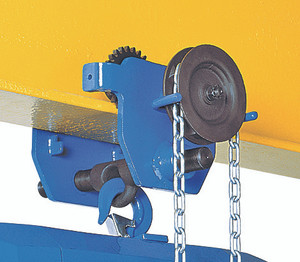

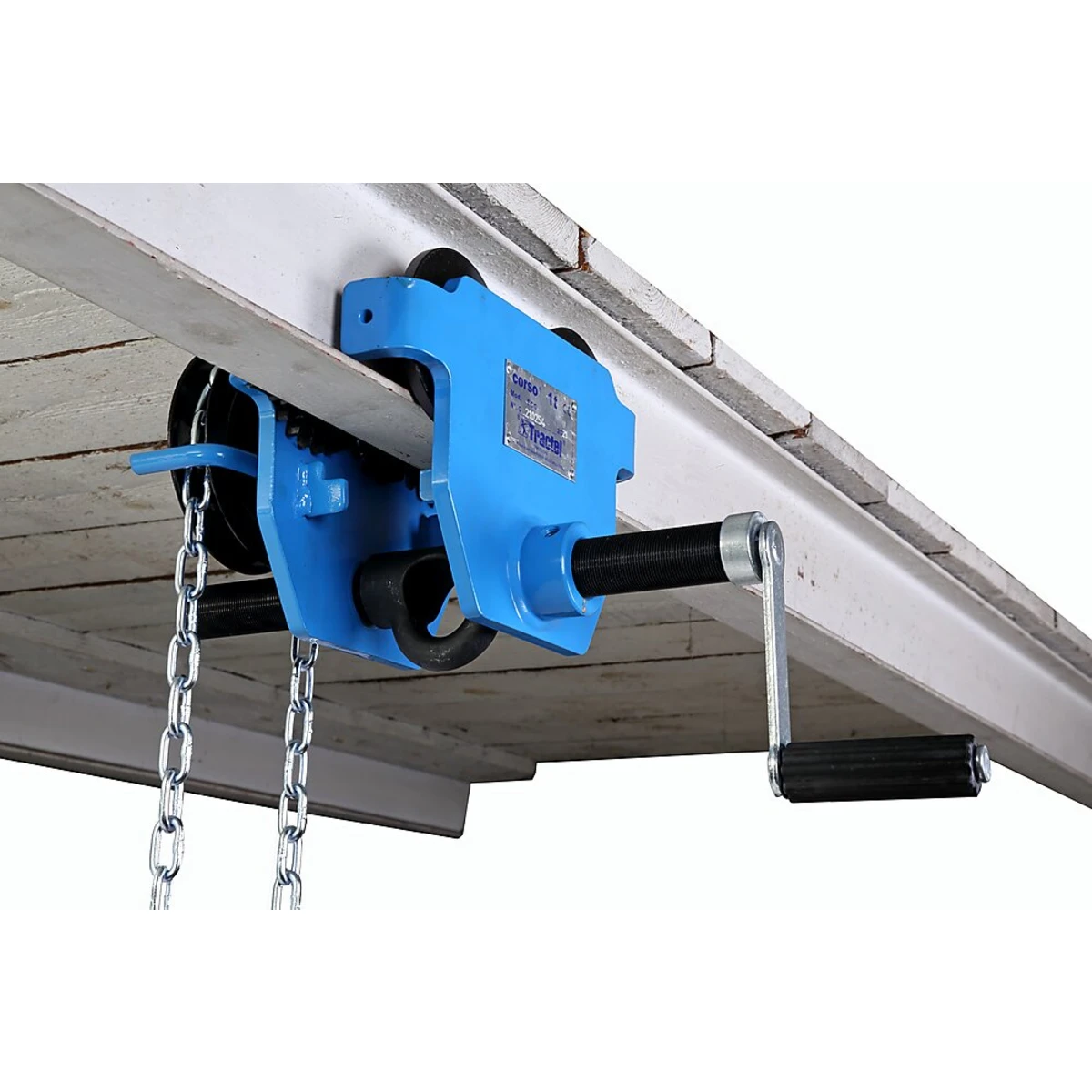

Tractel Corso Overhead Geared Trolley – 2 Ton with 8 ft. Hand Chain and Crank Flange Adjustment

The Tractel Corso 2 Ton Overhead Geared Trolley is built for reliable, controlled lifting and material handling in industrial environments. Supporting loads up to 4,000 lbs. (2 tons), it combines durable construction with smooth, precise operation. The trolley features an 8-foot hand chain that allows operators to move loads accurately with minimal effort, and a crank-style flange adjustment that makes it quick and easy to fit to a range of beam widths.

Constructed from high-strength steel and finished with corrosion-resistant paint, the trolley is designed to withstand heavy use. Its machined steel rollers with sealed bearings provide smooth, consistent travel along the beam, while the dual-threaded traverse bar ensures even alignment on both sides. Safety is built in, with end stops and a locking nut helping prevent accidental derailment.

The flange width adjustment range of 3.9 to 8.7 inches allows compatibility with a variety of I- or H-beams, while the low-profile design maximizes vertical lifting height. The combination of geared hand chain drive and robust construction makes this trolley ideal for warehouses, workshops, maintenance facilities, and other applications requiring safe, precise load movement.

Specifications

• Model: Corso Overhead Geared Trolley
• Part No.: 23349
• Capacity: 2 Ton (4,000 lbs.)
• Hand Chain Length: 8 ft.
• Flange Adjustment Range: 3.9 – 8.7 in. (100 – 220 mm)
• Adjustment Type: Crank handle with dual-threaded traverse bar
• Construction: High-strength steel with corrosion-resistant finish
• Rollers: Machined steel with sealed ball bearings
• Operation: Manual geared travel via hand chain
• Safety Features: End stops and locking nut to prevent derailment
• Headroom: Low-profile design for maximum lift height
• Standards: Conforms to ASME B30.17
