Tractel QS 3T Geared Trolleyw/Exthangerbar
Tractel QS 3T Geared Trolleyw/Exthangerbar

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    FREE in house engineering and design assistance

  • Wordwide Delivery

    Free shipping on all Harrington orders over 500LBS

Tractel QS 3T Geared Trolleyw/Exthangerbar

Write a Review
$1,421.00
$1,154.56
(You save $266.44 )
SKU: 23359K
Weight: 83.00 LBS
Width: 14.10 (in)
Height: 14.20 (in)
Depth: 7.00 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel QS 3T Geared Trolleyw/Exthangerbar

Tractel QS 3T Geared Trolleyw/Exthangerbar

$1,421.00
$1,154.56
(You save $266.44 )
Description

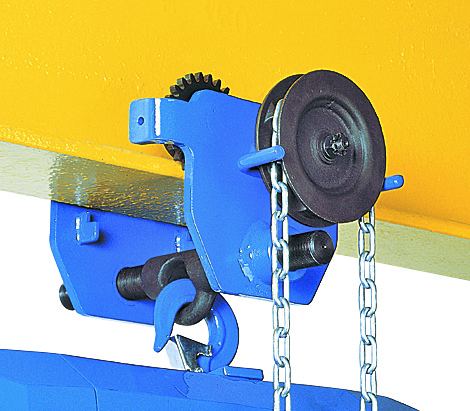

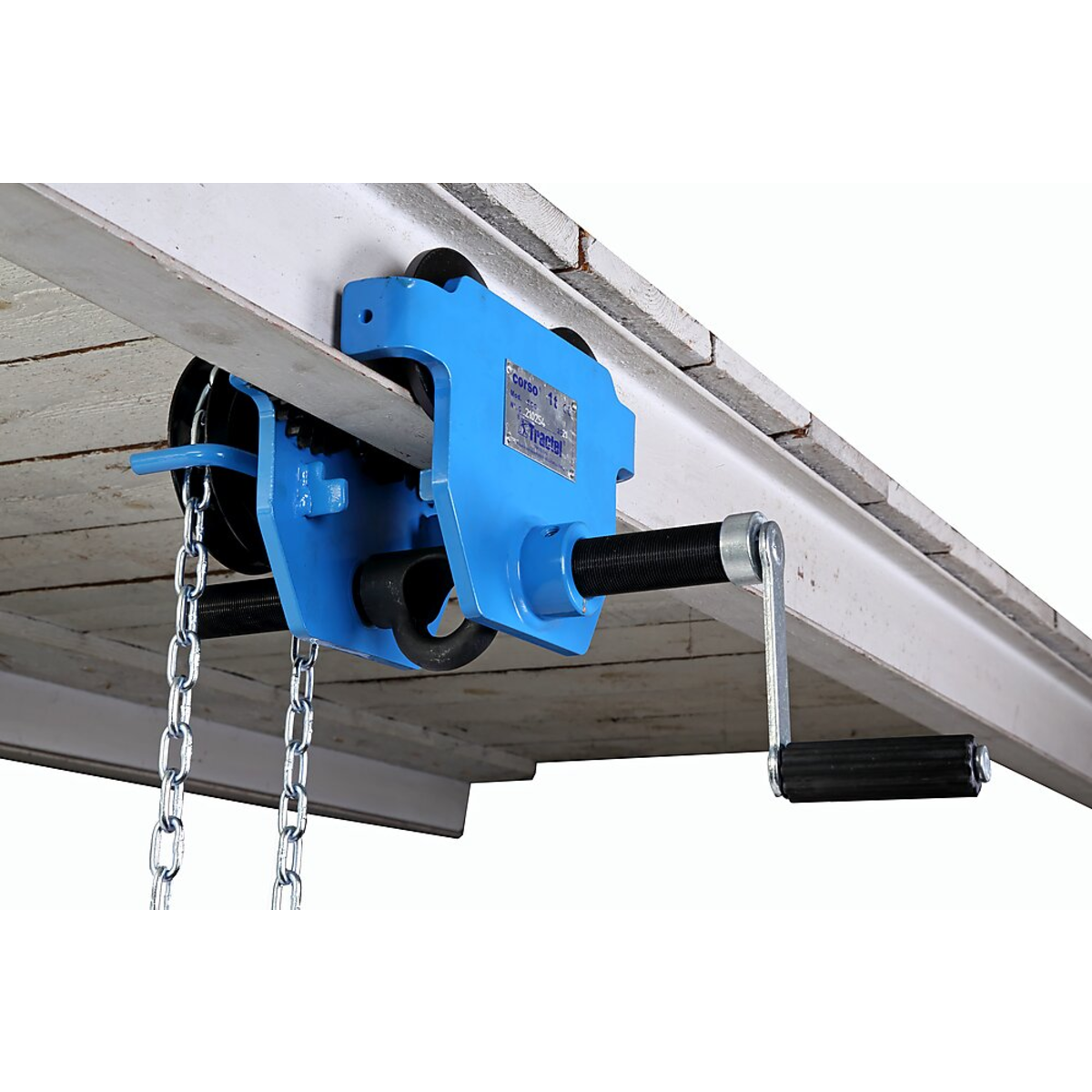

Tractel Corso Overhead Geared Trolley – 3 Ton with 8 ft. Hand Chain, Crank Flange Adjustment & Extended Hanging Bar

The Tractel Corso 3 Ton Overhead Geared Trolley with extended hanging bar is designed to handle loads up to 6,000 lbs. (3 tons) with precision and safety. Built for industrial and maintenance applications, this trolley provides controlled, smooth movement along overhead I- or H-beams while offering extra clearance for hoists or lifting attachments.

Featuring an 8-foot hand chain, operators can position loads accurately with minimal effort. The trolleys crank-style flange adjustment allows quick, precise installation across a variety of beam widths, and the dual-threaded traverse bar ensures even alignment on both sides. The extended hanging bar increases clearance below the beam, making it ideal for setups with limited headroom or additional lifting equipment. Machined steel rollers with sealed bearings deliver quiet, consistent travel, while end stops and a locking nut provide added safety and prevent derailment.

With a flange width adjustment range of 4.7 to 8.7 inches, this trolley fits most standard beams, and its low-profile design maximizes vertical lift height. Constructed from high-strength steel with a corrosion-resistant coating, it is built to withstand everyday environments and heavy-duty use.

The Corso 3 Ton Geared Trolley with extended hanging bar combines reliability, safety, and ease of use for precise overhead load positioning in workshops, warehouses, and industrial facilities.

Specifications

  • Model: Corso Overhead Geared Trolley with Extended Hanging Bar
  • Part No.: 23359K
  • Capacity: 3 Ton (6,000 lbs.)
  • Hand Chain Length: 8 ft.
  • Flange Adjustment Range: 4.7 – 8.7 in. (120 – 220 mm)
  • Adjustment Type: Crank handle with dual-threaded traverse bar
  • Construction: High-strength steel with corrosion-resistant coating
  • Rollers: Machined steel with sealed ball bearings
  • Extended Hanging Bar: Provides added clearance for hoists
  • Operation: Manual geared travel via hand chain
  • Safety Features: End stops and locking nut to prevent derailment
  • Headroom: Low-profile design for maximum lift height
  • Standards: Meets ASME B30.17
Warranty Information
All products manufactured by the Seller are covered against defects in materials and workmanship for a period of twenty-four (24) months from the date appearing on the order invoice. The warranty does not cover defects arising because of improper storage, damages resulting from improper assembly after delivery, insufficient maintenance, and failure to follow operating instructions, abnormal working conditions, normal wear or willful or negligent damage. It does not apply to paints and coatings. The warranty does not apply to any product which is modified, altered, repaired or maintained by personnel not certified by the Seller. The Seller's liability is expressly limited to the above-mentioned warranty. Any products or parts shipped as the result of a warranty claim will be invoiced according to the terms and conditions set forth above. That invoice will be due and payable as described in payment terms described above. A credit will be issued only after 1) Fabenco Inc determines the warranty claim is valid, 2) the defective part or product is returned to Fabenco Inc and 3) the equipment is returned within twenty-four (24) months of date sold to the original purchaser. Freight to and from the Fabenco Inc warehouse is the responsibility of the Buyer. Any shipments not prepaid will be refused.
