Tractel QS 1T Geared Trolleyw/Exthanger Bar

Write a Review
$842.30
$684.38
(You save $157.92 )
SKU: 23339K
Weight: 42.00 LBS
Width: 13.20 (in)
Height: 9.90 (in)
Depth: 4.10 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Tractel QS 1T Geared Trolleyw/Exthanger Bar

Tractel QS 1T Geared Trolleyw/Exthanger Bar

$842.30
$684.38
(You save $157.92 )
Description

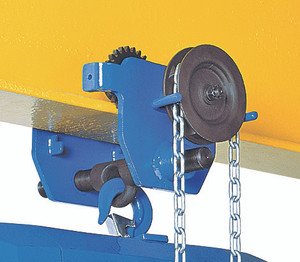

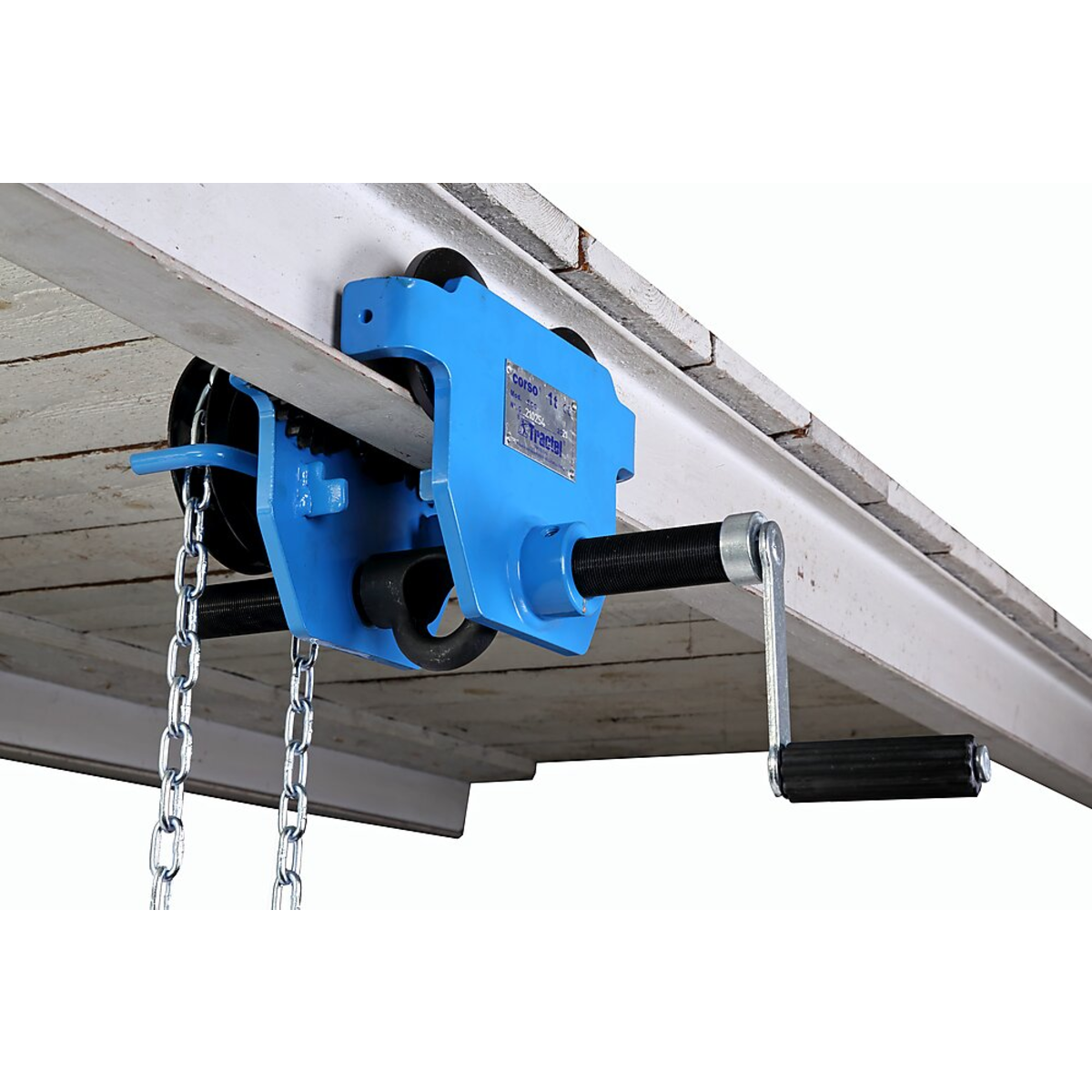

Tractel Corso Overhead Geared Trolley – 1 Ton with 8 ft. Hand Chain, Crank Flange Adjustment & Extended Hanging Bar

The Tractel Corso 1 Ton Overhead Geared Trolley with extended hanging bar provides precise, controlled load movement and added clearance for hoists or lifting attachments. Rated for 2,000 lbs. (1 ton), this trolley combines a geared hand chain drive with a durable construction, making it suitable for industrial, workshop, and maintenance applications.

The 8-foot hand chain ensures smooth, easy operation, while the crank-style flange adjustment allows for fast, accurate fitting to a range of beam widths. The trolleys dual-threaded traverse bar guarantees even alignment along the beam, and the extended hanging bar provides additional space below the beam for hoists or other lifting devices. Machined steel rollers with sealed bearings allow quiet, consistent travel, and end stops with a locking nut enhance safety by preventing accidental derailment.

With a flange width adjustment with a range of 2.6 to 8.7 inches and a low-profile design, this trolley maximizes vertical lifting space while adapting to different beam sizes. Its high-strength construction with a corrosion-resistant finish gives you reliability even in demanding environments.

This combination of strength, adjustability, and control makes the Corso 1 Ton Geared Trolley an ideal choice for applications requiring safe, precise overhead load handling.

Specifications:

  • Model: Corso Overhead Geared Trolley with Extended Hanging Bar
  • Part No.: 23339K
  • Capacity: 1 Ton (2,000 lbs.)
  • Hand Chain Length: 8 ft.
  • Flange Adjustment Range: 2.6 – 8.7 in. (66 – 220 mm)
  • Adjustment Type: Crank handle with dual-threaded traverse bar
  • Construction: High-strength steel with corrosion-resistant coating
  • Rollers: Machined steel with sealed ball bearings
  • Extended Hanging Bar: Provides added clearance for hoists
  • Operation: Manual geared travel via hand chain
  • Safety Features: End stops and locking nut to prevent derailment
  • Headroom: Low-profile design for maximum lift height
  • Standards: Meets ASME B30.17
Warranty Information
All products manufactured by the Seller are covered against defects in materials and workmanship for a period of twenty-four (24) months from the date appearing on the order invoice. The warranty does not cover defects arising because of improper storage, damages resulting from improper assembly after delivery, insufficient maintenance, and failure to follow operating instructions, abnormal working conditions, normal wear or willful or negligent damage. It does not apply to paints and coatings. The warranty does not apply to any product which is modified, altered, repaired or maintained by personnel not certified by the Seller. The Seller's liability is expressly limited to the above-mentioned warranty. Any products or parts shipped as the result of a warranty claim will be invoiced according to the terms and conditions set forth above. That invoice will be due and payable as described in payment terms described above. A credit will be issued only after 1) Fabenco Inc determines the warranty claim is valid, 2) the defective part or product is returned to Fabenco Inc and 3) the equipment is returned within twenty-four (24) months of date sold to the original purchaser. Freight to and from the Fabenco Inc warehouse is the responsibility of the Buyer. Any shipments not prepaid will be refused.
