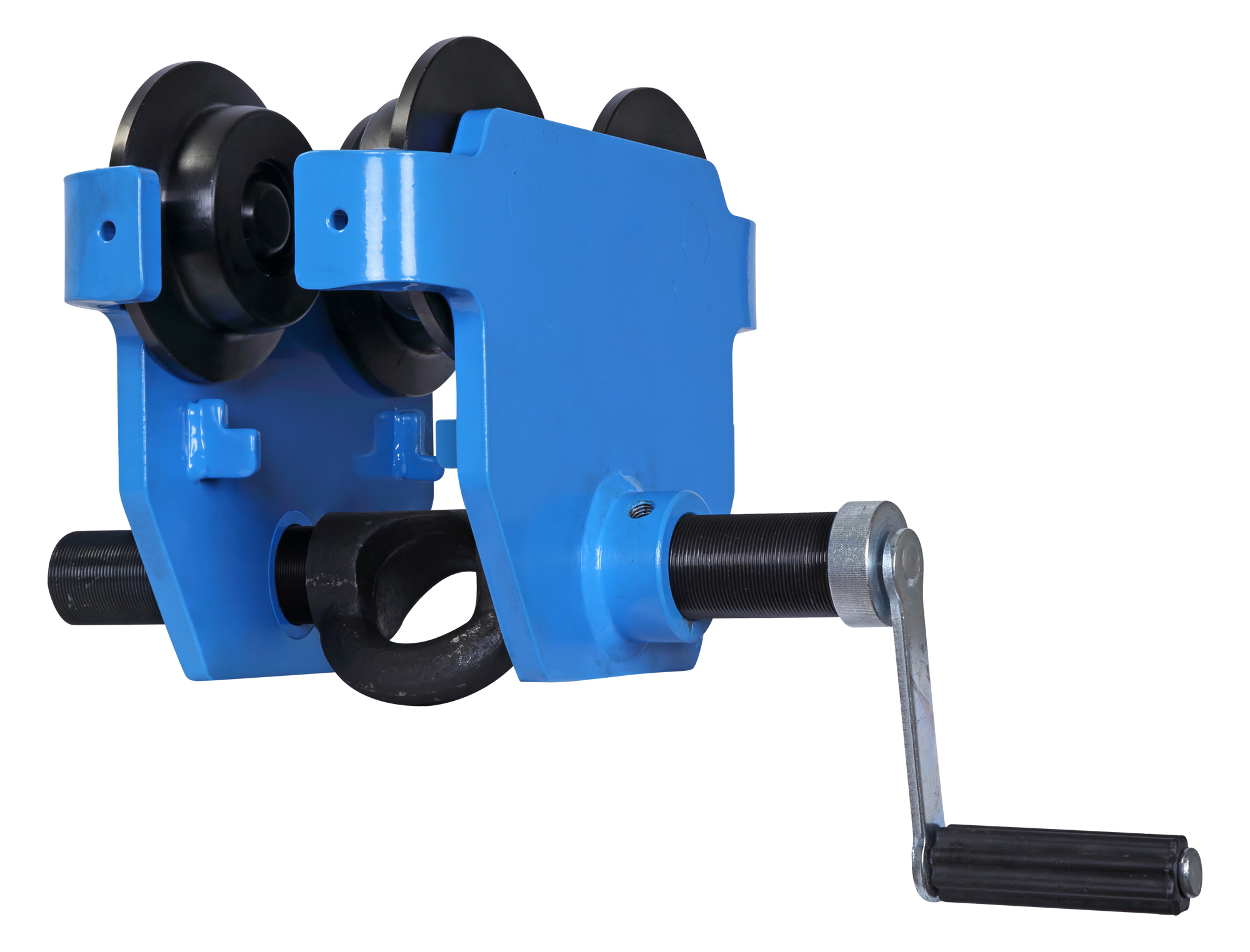

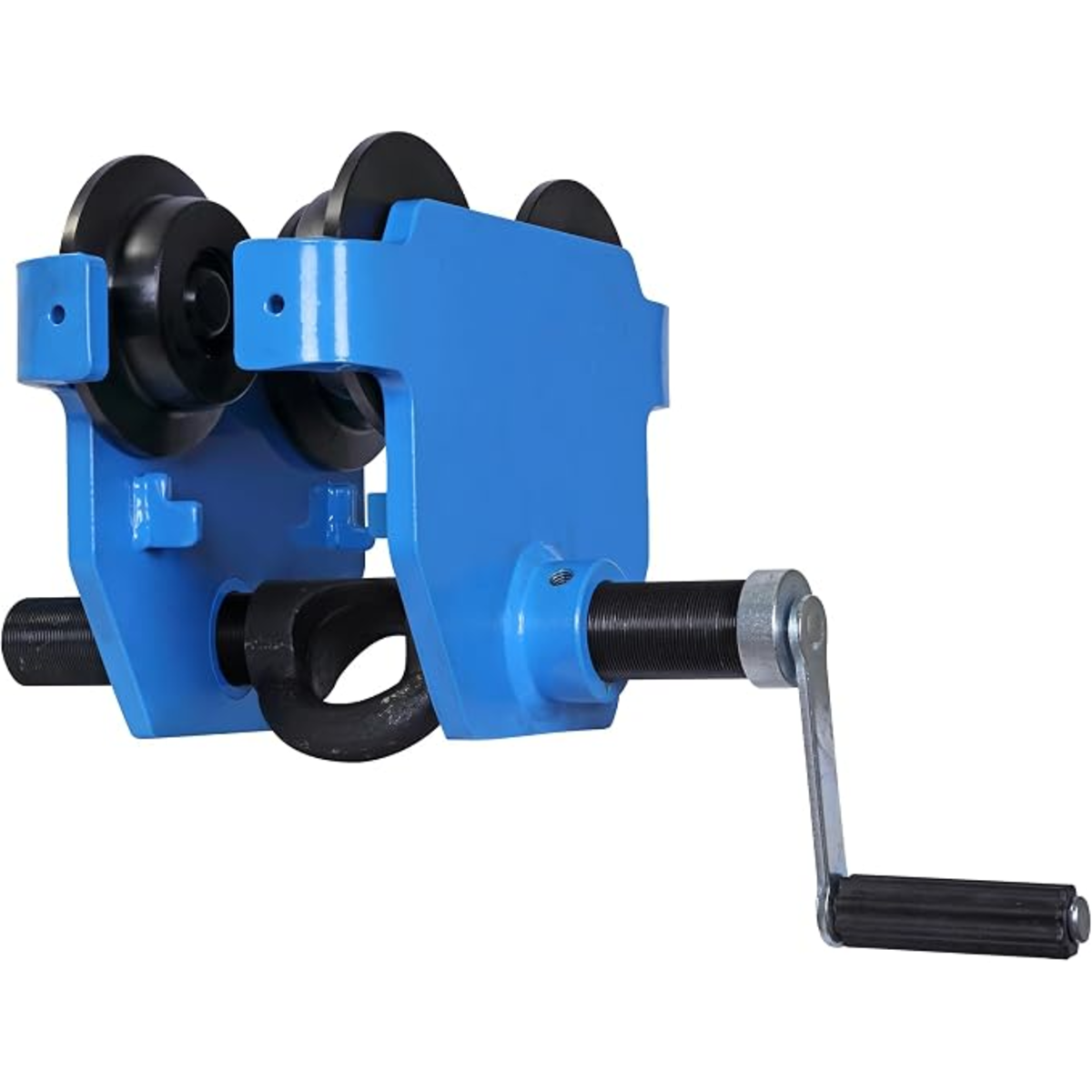

Tractel Corso Overhead Push Trolley – 1/2 Ton Capacity with Crank Flange Adjustment & Extended Hanging Bar

The Tractel Corso 1/2 Ton Overhead Push Trolley with an extended hanging bar is designed for precision in light to medium lifting tasks. Supporting loads up to 1,000 lbs. (1/2 ton), this trolley provides smooth, stable, and controlled movement along an overhead I-beam while accommodating hoists or lifting equipment that require additional clearance from the beam.

Equipped with a crank handle flange adjustment system, the trolley can be quickly and accurately positioned on beams of varying widths. Using a double-threaded traverse bar ensures equal tightening on both sides which keeps the trolley balanced and centered while under load. The extended hanging bar provides extra clearance for hoists, chain blocks, or other lifting devices.

Precision steel rollers with sealed bearings allow quiet and smooth travel, while the low headroom design maximizes available lifting height. Built with high-quality steel, the Corso trolley is durable, reliable, and engineered to handle demanding lifting operations in workshops, industrial facilities, and construction sites.

Key Features and Benefits

• Capacity: 1/2 Ton (1,000 lbs.) for light to medium lifting tasks
• Crank Handle Flange Adjustment: Quick, precise setup for a variety of beam widths
• Extended Hanging Bar: Provides extra clearance for hoists or lifting equipment
• Smooth Rolling Operation: Steel rollers with sealed bearings reduce friction and noise
• Balanced and Secure: Double-threaded traverse bar ensures even alignment
• Low Headroom Design: Preserves vertical lifting space
• Durable Construction: Painted steel body resists wear and corrosion
• Safety Features: End stops and locking nut prevent accidental derailment

Technical Specifications

• Model: Corso Overhead Push Trolley with Extended Hanging Bar
• Part No.: 23309K
• Working Load Limit (WLL): 1/2 Ton / 1,000 lbs.
• Flange Width Range: 2" – 8.7" (50 – 220 mm)
• Adjustment Type: Crank handle with double-threaded traverse bar
• Rollers: Steel rollers with sealed bearings
• Hanging Bar: Extended length for hoist clearance
• Frame Material: Painted steel
• Operation Type: Manual push
• Headroom: Low-profile design
• Safety Features: End stops and safety locking nut
• Compliance: ASME B30.20
