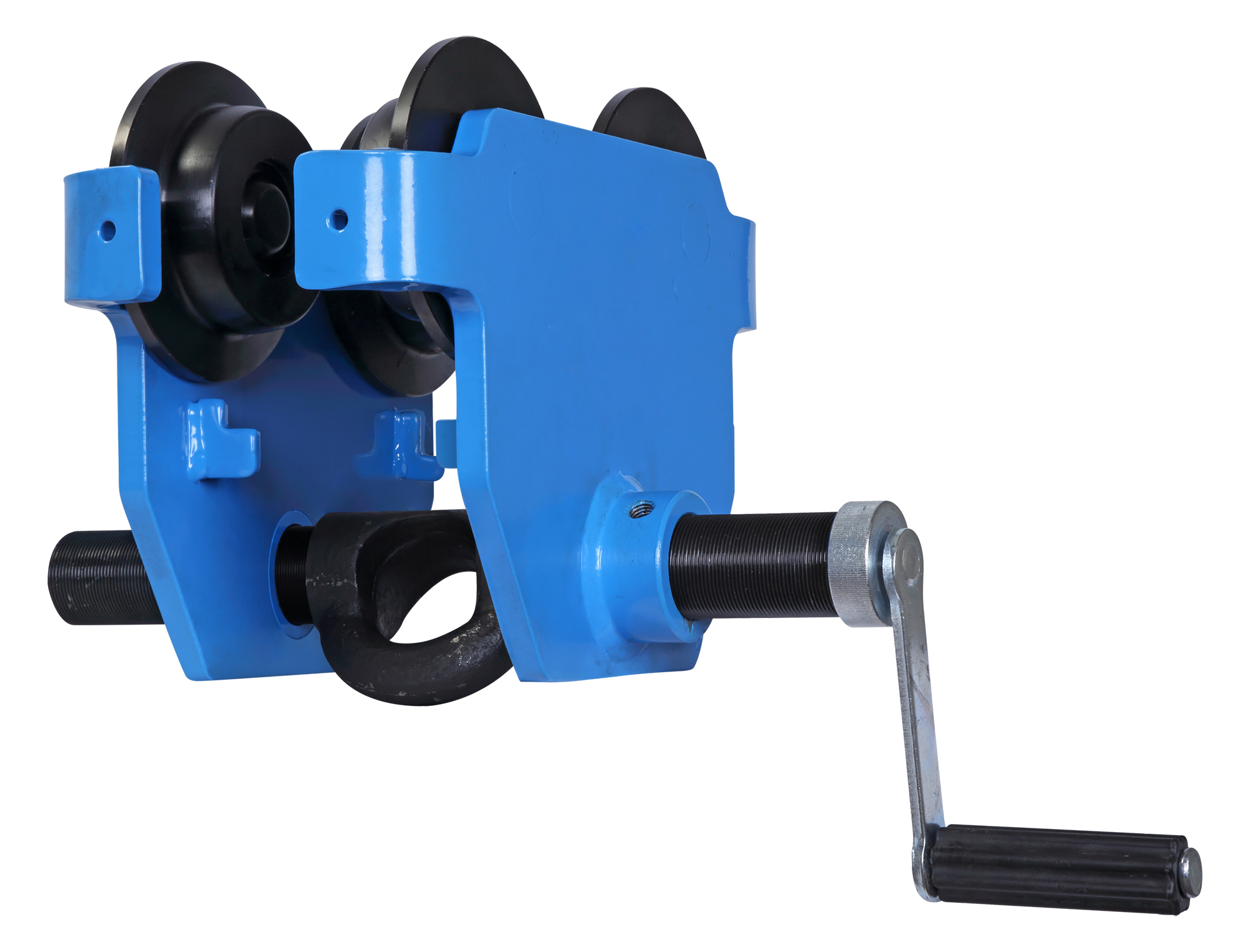

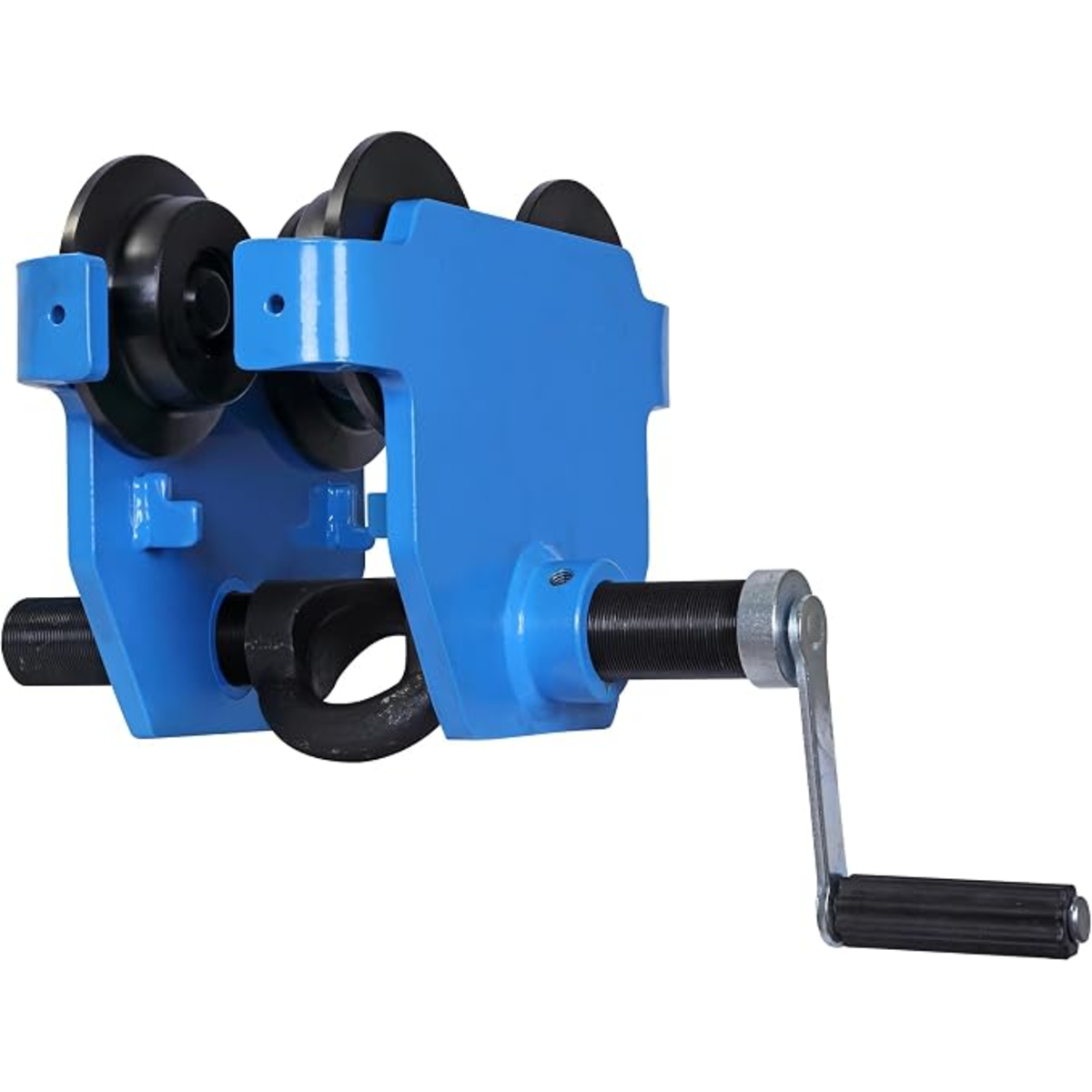

Tractel Corso Overhead Push Trolley – 10 Ton Capacity, Flange Adjustment with Crank

The Tractel Corso 10 Ton Overhead Push Trolley is designed for the heaviest lifting tasks where strength, reliability, and precision are essential. Having the ability to handle loads up to 20,000 lbs. (10 tons), this trolley ensures safe, smooth, and controlled movement of suspended equipment along overhead I-beams.

Featuring a crank handle flange adjustment system, the Corso trolley can be quickly and accurately fitted to a wide range of beam widths. The double-threaded traverse bar gives you even alignment on both sides, maintaining balance and stability during operation. Heavy-duty steel rollers with sealed bearings provide smooth, quiet travel under full load, while the low headroom design maximizes vertical lifting space in constrained areas.

Engineered for strength and safety, this trolley incorporates end stops and a safety locking nut to prevent accidental derailment, that gives operators peace of mind during demanding lifting operations. Its solid construction and precision components make it the perfect solution for industrial plants, workshops, construction sites, and any other environment where heavy loads must be moved reliably.

Key Features and Benefits

• High-Capacity Lifting – Rated for up to 10 Tons (20,000 lbs.) to handle heavy industrial loads.
• Crank Handle Flange Adjustment – Quick, precise fitting for a variety of I-beam widths.
• Balanced Operation – Dual-threaded traverse bar ensures even alignment on both sides of the beam.
• Smooth Rolling – Steel rollers with sealed bearings provide consistent and low-resistance travel.
• Durable Construction – Heavy-duty painted steel frame for long-lasting service.
• Safety Features – End stops and safety locking nut prevent accidental derailment.
• Low Headroom Profile – Maximizes lifting height in tight working spaces.
• Versatile Application – Compatible with manual or powered hoists for flexible use.

Technical Specifications

• Model: Corso Overhead Push Trolley
• Part No.: 056279
• Working Load Limit (WLL): 10 Ton / 20,000 lbs.
• Flange Width Range: 4.7" – 8.7" (120 – 220 mm)
• Adjustment Type: Crank handle with double-threaded traverse bar
• Rollers: Machined steel with sealed ball bearings
• Frame Material: Heavy-duty painted steel
• Operation Type: Manual push
• Headroom: Low-profile design
• Safety Features: End stops and safety locking nut
• Compliance: ASME B30.20
