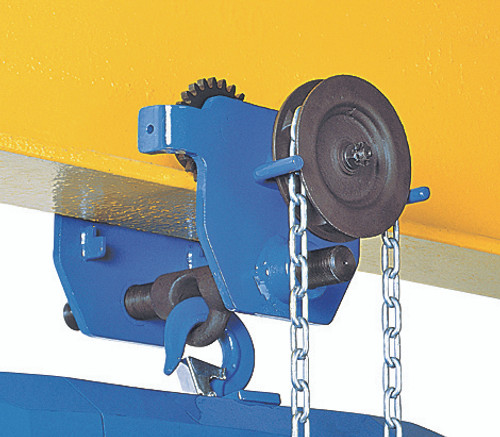

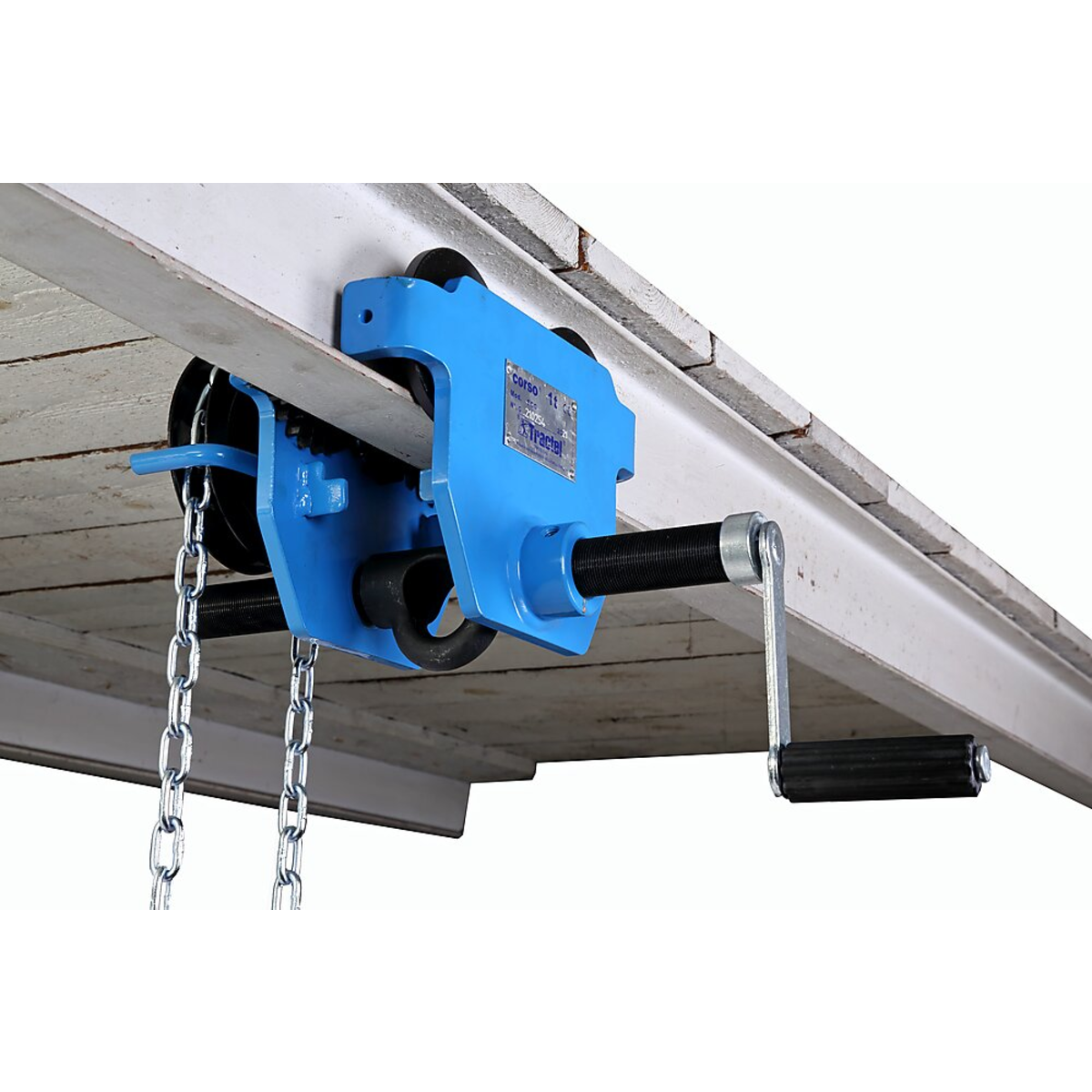

Tractel Corso Overhead Geared Trolley – 20 Ton with 8 ft. Hand Chain and Crank Flange Adjustment

The Tractel Corso 20 Ton Overhead Geared Trolley is built for extreme-duty lifting in industrial, construction, and heavy manufacturing applications. With a capacity of 40,000 lbs. (20 tons), this trolley provides controlled, reliable movement for the heaviest overhead loads, ensuring both safety and precision when positioning large equipment or materials.

Featuring an 8-foot hand chain, the geared trolley allows operators to move heavy loads smoothly and accurately. The trolleys crank-style flange adjustment enables quick installation on a variety of beam widths. The dual-threaded traverse bar ensures both sides adjust evenly for perfect alignment. Machined steel rollers with sealed bearings allow quiet, smooth travel under massive loads, and end stops with a locking nut enhance safety by preventing derailment during operation.

The flange width adjustment has a range of 8.3 to 8.7 inches, and accommodates most heavy-duty I- or H-beams. Its low-profile design maximizes vertical lift space, while the high-strength painted steel construction ensures durability and long-term reliability in the most demanding environments.

This trolley delivers the strength, control, and dependability required for safe, precise handling of extremely heavy loads, that makes it a trusted choice for industrial operations where performance and safety cannot be compromised.

Specifications

• Model: Corso Overhead Geared Trolley
• Part No.: 056299
• Capacity: 20 Ton (40,000 lbs.)
• Hand Chain Length: 8 ft.
• Flange Adjustment Range: 8.3 – 8.7 in. (210 – 220 mm)
• Adjustment Type: Crank handle with dual-threaded traverse bar
• Construction: High-strength steel with corrosion-resistant coating
• Rollers: Machined steel with sealed ball bearings
• Operation: Manual geared travel via hand chain
• Safety Features: End stops and locking nut to prevent derailment
• Headroom: Low-profile design for maximum lift height
• Standards: Meets ASME B30.17
