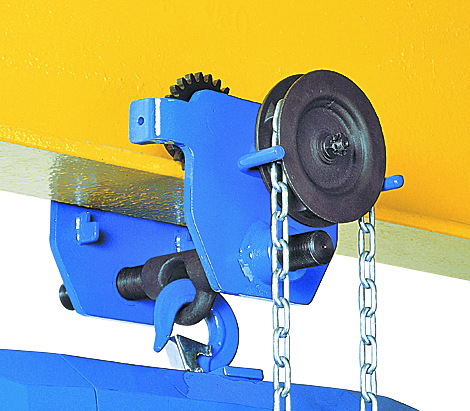

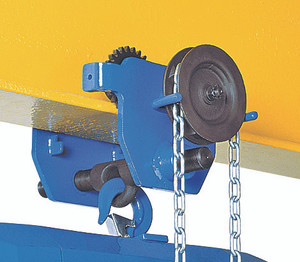

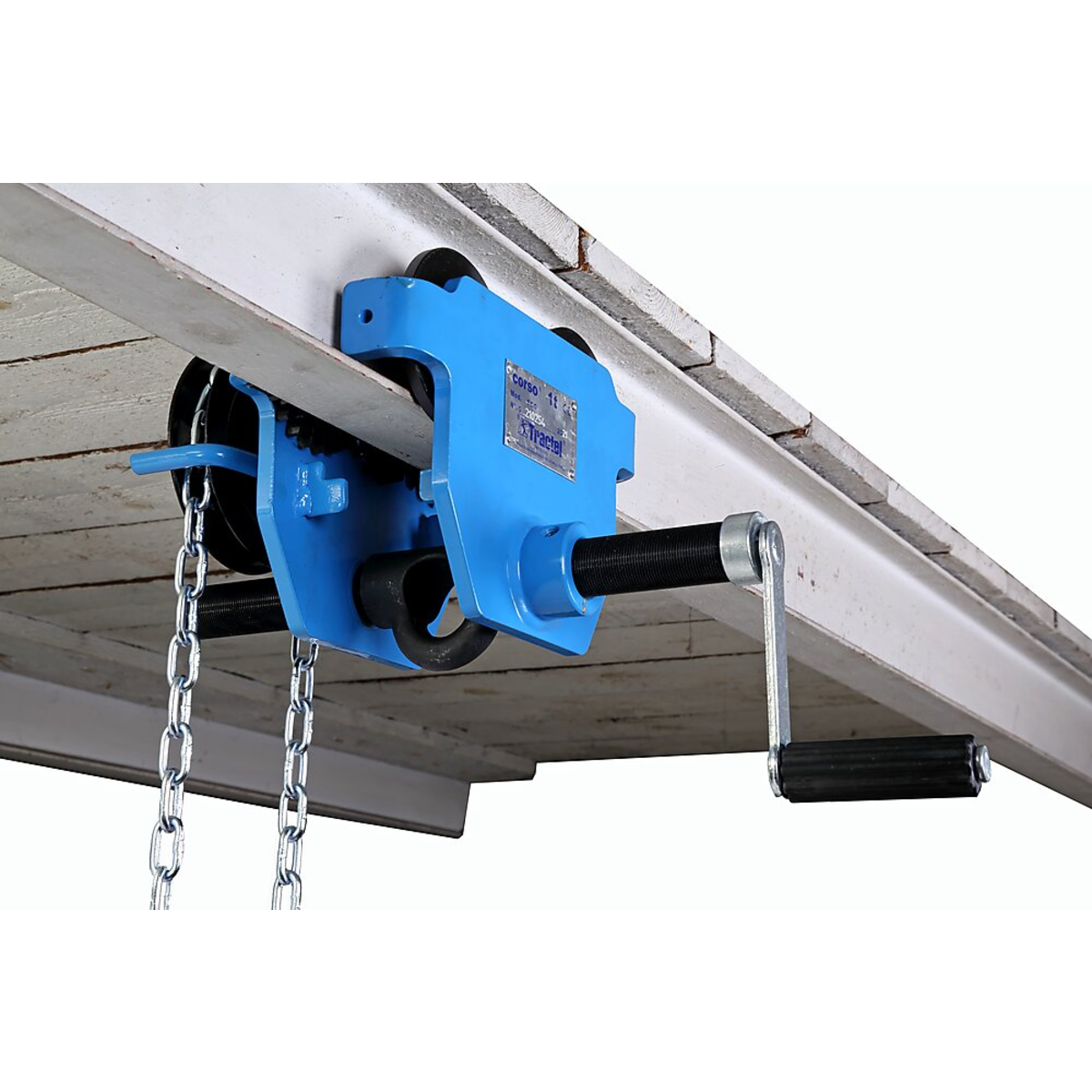

Tractel Corso Overhead Geared Trolley – 10 Ton with 8 ft. Hand Chain and Crank Flange Adjustment

The Tractel Corso 10 Ton Overhead Geared Trolley is designed for heavy industrial lifting where strength, precision, and safety are critical. Supporting loads up to 20,000 lbs. (10 tons), this trolley provides controlled movement along overhead I- or H-beams, making it ideal for manufacturing facilities, warehouses, construction sites, and maintenance operations.

Equipped with an 8-foot hand chain, the geared trolley allows operators to position loads smoothly and accurately. Trolleys crank-style flange adjustment enables quick installation to a variety of beam widths. The dual-threaded traverse bar gives you balanced alignment and stability under load. Machined steel rollers with sealed bearings deliver quiet, smooth travel, even with heavy loads, and end stops with a locking nut enhance operational safety by preventing accidental derailment.

The flange width adjustment range of 7.1 to 8.7 inches accommodates a wide spectrum of standard beams, and the trolley’s low-profile design maximizes vertical lift space. Built from high-strength painted steel, it is rugged enough to withstand daily use environments, providing dependable performance for operators handling large, heavy loads.

Specifications

• Model: Corso Overhead Geared Trolley
• Part No.: 056289
• Capacity: 10 Ton (20,000 lbs.)
• Hand Chain Length: 8 ft.
• Flange Adjustment Range: 7.1 – 8.7 in. (180 – 220 mm)
• Adjustment Type: Crank handle with dual-threaded traverse bar
• Construction: High-strength steel with corrosion-resistant coating
• Rollers: Machined steel with sealed ball bearings
• Operation: Manual geared travel via hand chain
• Safety Features: End stops and locking nut to prevent derailment
• Headroom: Low-profile design for maximum lift height
• Standards: Meets ASME B30.17
