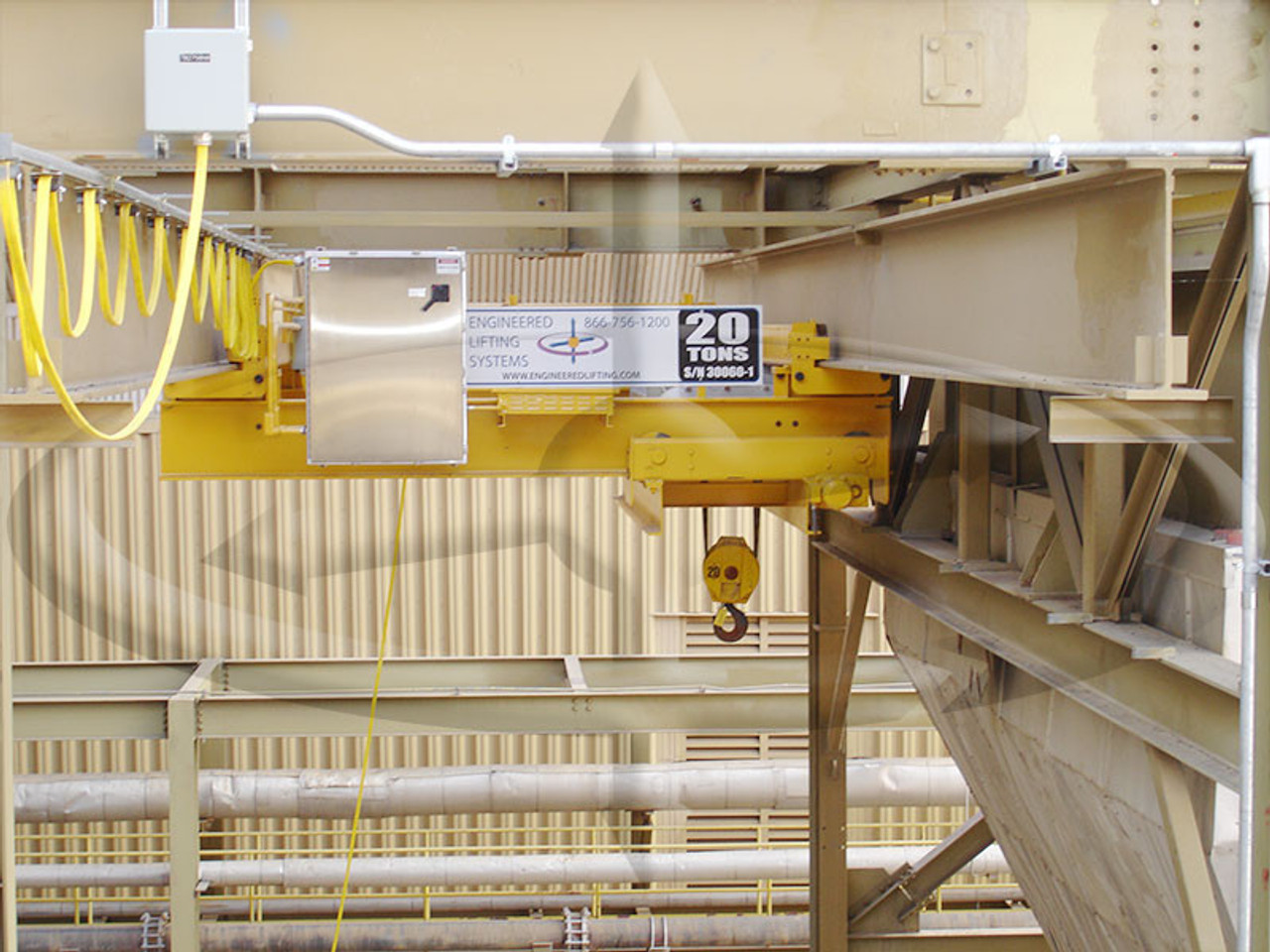

Product Overview
Suspension / Mount: The crane is designed with a top-running double girder suspension/mount for both the main and auxiliary components, providing robust support and stability for heavy lifting tasks.
Capacity: With a main hoist capacity of 20.00 tons and an auxiliary hoist capacity of 11.00 tons, this crane offers ample lifting power to handle a wide range of loads, ensuring versatility and efficiency in various industrial applications.
Reeving / Lift: Featuring 5 part line reeving for the main hoist, enabling a lift of 22'4", and 4 part line reeving for the auxiliary hoist, allowing a lift of 29'1", this crane offers flexibility in lifting heights to accommodate different load requirements.
Hoist Lift Speed: The crane's main hoist operates at a maximum lift speed of 12.00 feet per minute (FPM), while the auxiliary hoist offers a maximum lift speed of 13.00 FPM, ensuring efficient and precise vertical movement of loads.
Hoist Motor: Powered by a 13.4 KW motor for the main hoist and a 7.5 KW motor for the auxiliary hoist, this crane delivers reliable and powerful lifting performance, capable of handling heavy loads with ease.
Hoist Control: Equipped with closed-loop vector Variable Frequency Drive (VFD) control, the crane ensures precise and smooth hoisting operations, enhancing safety and productivity in material handling tasks.
Trolley Speed: The crane features a maximum trolley speed of 80.00 FPM, facilitating swift and efficient horizontal movement of loads across the workspace, increasing overall productivity and workflow efficiency.
Trolley Motor: Utilizing two motors, each rated at 0.75 KW, the crane's trolley system ensures consistent and reliable movement along the runway beams, contributing to smooth and precise load positioning.
Trolley Control: With sensorless vector Variable Frequency Drive (VFD) control, the crane provides accurate and responsive trolley maneuvering, allowing operators to maintain precise control over load movement, enhancing operational efficiency and safety.
Power Supply: Designed for electric power operation, the crane operates at 460VAC, 3-phase, 60Hz, with a tolerance of ±5%, ensuring compatibility with standard power supplies and reliable performance in various industrial environments.
CMAA Class / Atmosphere / Location Class: Classified as CMAA Class D for standard indoor service, the crane is suitable for use in a wide range of indoor industrial environments, providing reliable and efficient material handling solutions.
Trolley Gauge: With a trolley gauge measuring 72.0000 inches, the crane offers ample spacing between the runway beams, allowing for smooth and reliable trolley movement, ensuring optimal performance and safety during operation.
Approximate Weight: Weighing approximately 4600.00 lbs, the crane strikes a balance between robustness and maneuverability, ensuring structural integrity while maintaining ease of installation and operation.

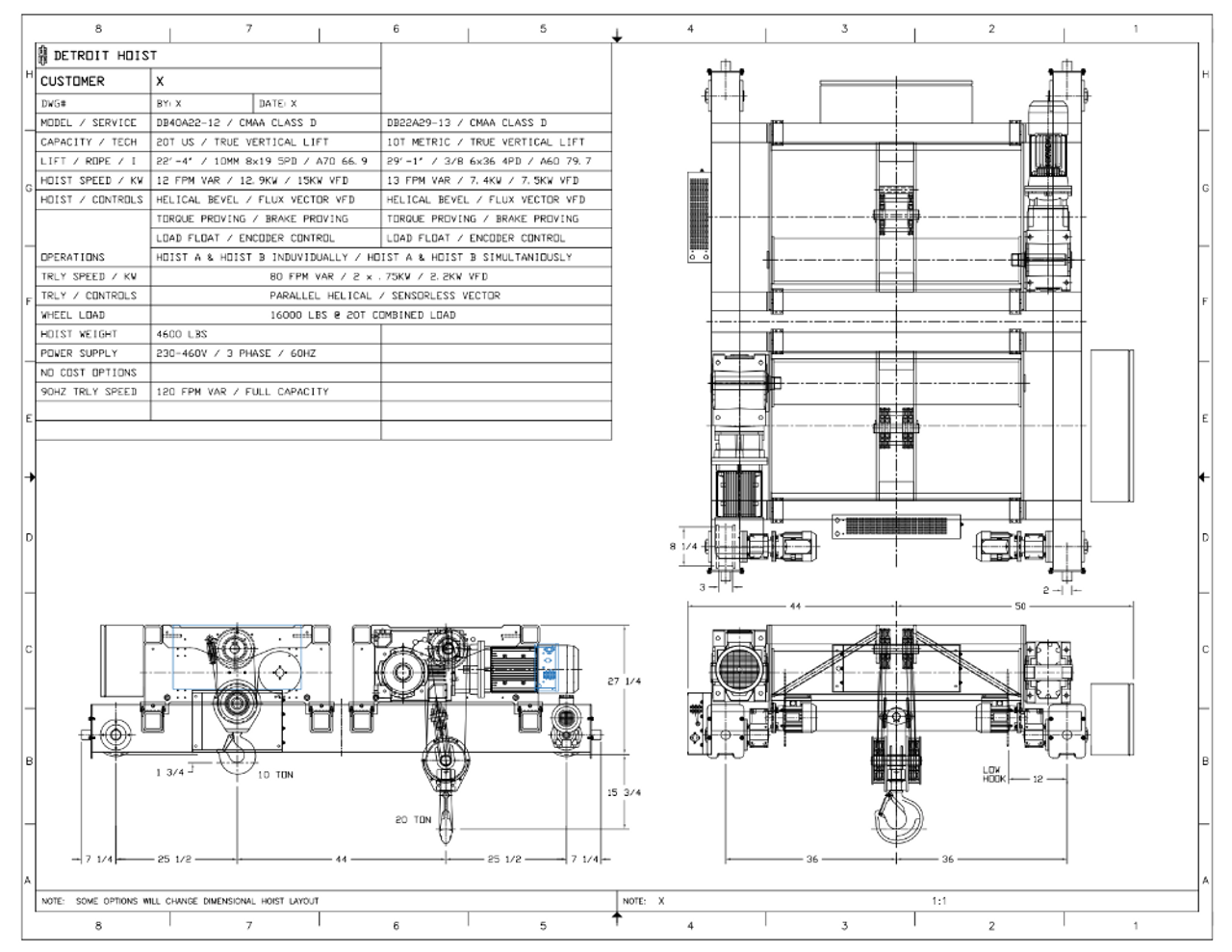

Model DB40A22-12-DB22A29-13
Suspension / Mount Top Running Double Girder Main / Auxiliary
Capacity 20.00 Ton / 11.00 Ton
Reeving | Lift 5 PD / 4 PD | 22'4" / 29'1"
Hoist Lift Speed 12.00 FPM Max / 13.00 FPM Max
Hoist Motor 13.4 KW / 7.5 KW
Hoist Control Closedloop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .75 KW
Trolley Control Sensorless vector VFD control
Power Supply Electric | 460VAC3PH60HZ +5%
CMAA Class | Atmosphere | Location Class D | Standard | Indoor Service
Trolley Gauge 72.0000"
Approximate Weight 4600.00 lbs
MODEL FEATURES
Main / Auxiliary hoist design.
4pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4pole, AC squirrel cage inverter-rated trolley motors.
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with NEMA 4 enclosure.
A, B, A+B controls for hoist motion (90 Hz not available in both mode).
Hoist closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist 100% dynamic braking with resistor or regenerative converter.
Hoist overweight protection through frequency drive with 3% accuracy.
Trolley open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
