  • DB11T41­-26
  • DB11T41­-26

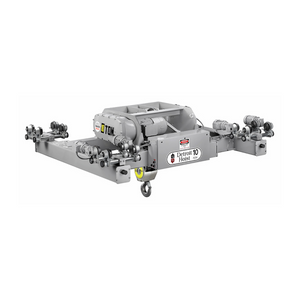

    • Top Running Double Girder, Capacity: 5.50 Ton, Hoist Lift Speed: 26.00 FPM Max, Trolley Speed: 80.00 FPM Max, Trolley Gauge: 60.0000", DB11T41-26, Detroit

    DETROIT HOIST

    MSRP: $18,906.25
    $17,144.54
    (You save $1,761.71 )
    (No reviews yet) Write a Review
    SKU:
    DB11T41-26
    Weight:
    2,000.00 LBS
    Shipping:
    Free Shipping
    Adding to cart… category.add_cart_announcement
    asdfadsfa

    Product Overview

    • Suspension/Mount: This crane boasts a top running double girder configuration, ensuring stability and optimal load distribution, even when handling hefty loads.

    • Capacity: With an impressive lifting capacity of 5.50 tons, it's well-equipped to handle a wide range of industrial applications, from manufacturing to construction.

    • Reeving/Lift: Featuring a 2-part reeving system, it offers a lift height of 41 feet and 7 inches, providing versatility and adaptability for various lifting scenarios.

    • Hoist Lift Speed: Capable of reaching a maximum hoist lift speed of 26.00 feet per minute (FPM), this crane delivers swift and efficient vertical movement of loads.

    • Hoist Motor: Powered by a robust 7.5 kW motor, it ensures consistent and reliable lifting performance, even under demanding conditions.

    • Hoist Control: Utilizing closed-loop vector Variable Frequency Drive (VFD) control, this crane offers precise and responsive hoist operation, enhancing safety and efficiency.

    • Trolley Speed: With a maximum trolley speed of 80.00 FPM, it enables rapid and smooth horizontal movement of loads along the beam.

    • Trolley Motor: Equipped with two 0.55 kW motors for trolley movement, ensuring efficient and reliable transportation of loads across the working area.

    • Trolley Control: Employing sensorless vector VFD control, the crane provides accurate and seamless trolley positioning, enhancing overall productivity.

    • Power Supply: Operating on electric power supply at 230VAC, 3-phase, and 60Hz, with a tolerance of ±5%, it ensures consistent and reliable performance for continuous operation.

    • CMAA Class/Atmosphere/Location: Compliant with CMAA standards and designed to withstand Class D atmospheric conditions, this crane is built to last and perform reliably in various industrial environments.

    • Trolley Gauge: Offering a generous trolley gauge of 60.0000 inches, it provides ample space for load clearance and maneuverability, enhancing operational efficiency.

    • Approximate Weight: Weighing in at approximately 2000.00 lbs, this crane strikes a balance between robust construction and manageable weight, facilitating easier installation and maintenance.

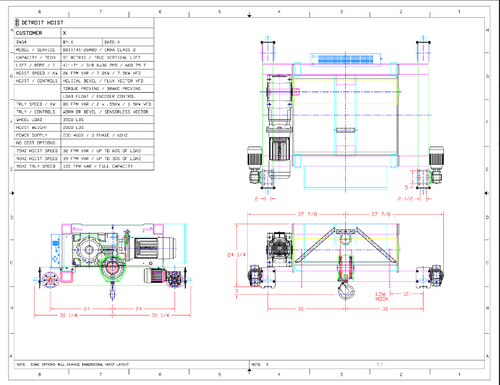

    Model DB11T41­-26
    Suspension / Mount Top Running Double Girder
    Capacity 5.50 Ton
    Reeving | Lift 2 PD | 41'­7"
    Hoist Lift Speed 26.00 FPM Max
    Hoist Motor 7.5 KW
    Hoist Control Closed­loop vector VFD control
    Trolley Speed 80.00 FPM Max
    Trolley Motor 2 @ .55 kw
    Trolley Control Sensorless vector VFD control
    Power Supply Electric | 230VAC­3PH­60HZ +­5%
    CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
    Trolley Gauge 60.0000"
    Approximate Weight 2000.00 lbs

    MODEL FEATURES

    4­pole, AC squirrel cage, inverter-rated hoist motor with brake.
    True vertical lift and dual 4­pole, AC squirrel cage inverter-rated trolley motors.
    Rubber bumpers and drop lugs/rail sweeps.
    Premium grade graphite ductile iron wheels and sheaves for durability.
    UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
    Hoist ­ closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
    Hoist ­ 0 hz speed control for precise positioning and stopping without motor brake fatigue.
    Hoist ­ 100% dynamic braking with resistor or regenerative converter.
    Hoist ­ over­weight protection through frequency drive with 3% accuracy.
    Trolley ­ open loop frequency drive with dynamic braking.
    Motor overload protection through frequency drives.
    Adjustable upper and lower electronic encoder limits and secondary upper limit.
    110 VAC control voltage (optional 24 VDC pushbutton control voltage).
    90 Hz hoist speed up to 30% of rated load enable by request.
