Product Overview
- Suspension/Mount: Top running double girder configuration, ensuring stability and efficient load distribution.
- Capacity: Capable of lifting loads up to 3.30 tons, providing ample lifting power for various industrial tasks.
- Reeving/Lift: Equipped with 2-part reeving system for a lift of 41 feet and 7 inches, offering versatility in vertical movement.
- Hoist Lift Speed: Maximum hoist lift speed of 26.00 feet per minute (FPM), enabling swift and efficient vertical movement of loads.
- Hoist Motor: Powered by a robust 7.5 kW motor, ensuring reliable and consistent lifting performance.
- Hoist Control: Utilizes closed-loop vector Variable Frequency Drive (VFD) control for precise and responsive hoist operation.
- Trolley Speed: Capable of achieving a maximum trolley speed of 80.00 FPM, facilitating swift horizontal movement of loads.
- Trolley Motor: Features two 0.55 kW motors for trolley movement, ensuring smooth and efficient load transportation across the beam.
- Trolley Control: Employs sensorless vector VFD control for accurate and efficient trolley positioning.
- Power Supply: Electrically powered, operating at 230VAC, 3-phase, and 60Hz, with a tolerance of ±5%, providing consistent power for continuous operation.
- CMAA Class/Atmosphere/Location: Compliant with CMAA standards and suitable for use in Class D atmospheric conditions, offering reliability in various industrial environments.
- Trolley Gauge: Offers a trolley gauge of 60.0000 inches, providing ample space for load clearance and maneuverability.
- Approximate Weight: Weighs approximately 2000.00 lbs, ensuring manageable installation and maintenance.

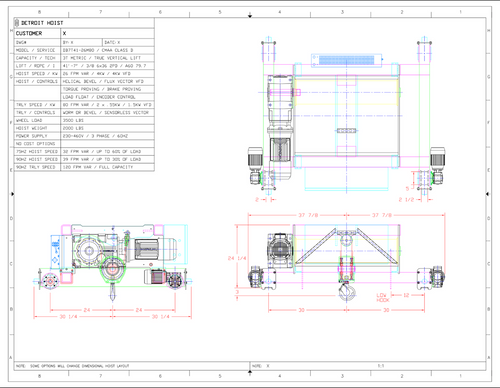

Model DB7T41-26
Suspension / Mount Top Running Double Girder
Capacity 3.30 Ton
Reeving | Lift 2 PD | 41'7"
Hoist Lift Speed 26.00 FPM Max
Hoist Motor 7.5 kW
Hoist Control Closedloop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 kw
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC3PH60HZ +5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Trolley Gauge 60.0000"
Approximate Weight 2000.00 lbs
MODEL FEATURES
4pole, AC squirrel cage, inverter-rated hoist motor with brake.
True vertical lift and dual 4pole, AC squirrel cage
Rubber bumpers and drop lugs/rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist closed loop flux vector drive with motor & brake proving and load floating at 0 Hz.
Hoist 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist 100% dynamic braking with resistor or regenerative converter.
Hoist overweight protection through frequency drive with 3% accuracy.
Trolley open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
Product Videos
Videos Hide Videos Show Videos
Custom Field
Product Reviews
Recommended
-
Top Running Double Girder, Capacity: 8.25 Ton, Hoist Lift Speed: 26.00 FPM Max, Trolley Speed: 80.00 FPM Max, Trolley Gauge: 60.0000", DB16T41-26, Detroit
MSRP: $20,625.00$18,703.13

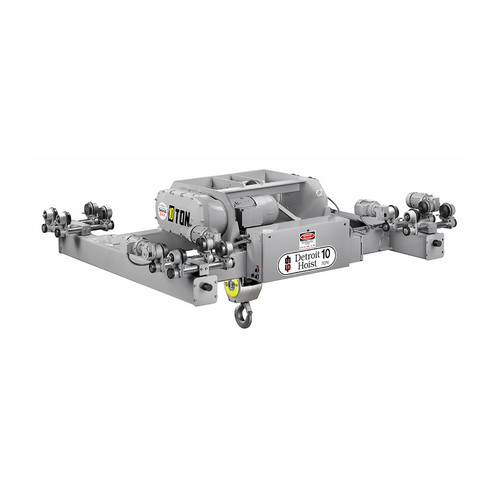

Top Running Double Girder, Capacity: 5.50 Ton, Hoist Lift Speed: 26.00 FPM Max, Trolley Speed: 80.00 FPM Max, Trolley Gauge: 60.0000", DB11T41-26, Detroit
MSRP: $18,906.25$17,144.54

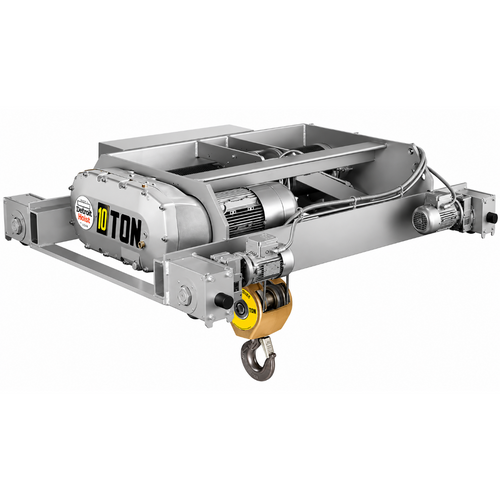

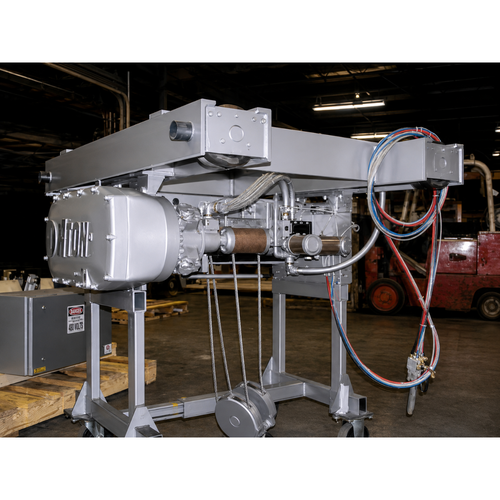

Top Running Double Girder, Capacity: 3.30 Ton, Hoist Lift Speed: 26.00 FPM Max, Trolley Speed: 80.00 FPM Max, Trolley Gauge: 66.0000", DB7T59-26, Detroit
