Top Running Double Girder, Capacity: 5.50 Ton, Hoist Lift Speed: 26.00 FPM Max, Trolley Speed: 80.00 FPM Max, Trolley Gauge: 66.0000", DB11T59-26, Detroit

Product Overview

• Suspension/Mount: Engineered with a top running double girder configuration, this crane ensures unparalleled stability and load-bearing capacity, making it a reliable choice for heavy-duty applications.

• Capacity: With a robust lifting capacity of 5.50 tons, this crane exemplifies strength and versatility, capable of handling a diverse range of loads with precision and efficiency.

• Reeving/Lift: Featuring a 2-part reeving system, it offers an impressive lift height of 59 feet and 5 inches, providing ample vertical reach to accommodate various lifting scenarios with ease.

• Hoist Lift Speed: Delivering a maximum hoist lift speed of 26.00 feet per minute (FPM), this crane enables swift and controlled vertical movement, optimizing productivity while ensuring safety.

• Hoist Motor: Powered by a high-performance 7.5 kW motor, the hoisting mechanism operates with precision and reliability, guaranteeing consistent performance even under demanding conditions.

• Hoist Control: Employing closed-loop vector Variable Frequency Drive (VFD) control, the hoist system ensures precise speed regulation and torque management, enhancing operational efficiency and safety.

• Trolley Speed: With a maximum trolley speed of 80.00 FPM, the crane facilitates rapid and seamless horizontal movement, allowing for efficient load positioning and transportation across the workspace.

• Trolley Motor: Equipped with two 0.55 kW motors, the trolley system delivers smooth and synchronized movement along the girder, enabling precise load handling and placement with minimal effort.

• Trolley Control: Utilizing sensorless vector VFD control, the trolley system offers responsive and accurate positioning, enhancing operational flexibility and control.

• Power Supply: Operating on a reliable electric power supply at 230VAC, 3-phase, and 60Hz, with a tolerance of ±5%, the crane ensures consistent and uninterrupted performance, essential for sustained productivity in industrial environments.

• CMAA Class/Atmosphere/Location: Designed and built to comply with CMAA standards and engineered to withstand Class D atmospheric conditions, this crane embodies durability and resilience, making it suitable for a wide range of industrial applications.

• Trolley Gauge: Featuring a spacious trolley gauge of 66.0000 inches, the crane provides ample clearance for load maneuverability, optimizing workspace efficiency and safety.

• Approximate Weight: Weighing approximately 2200.00 lbs, the crane strikes a balance between structural integrity and practicality, facilitating ease of installation and maintenance without compromising performance.

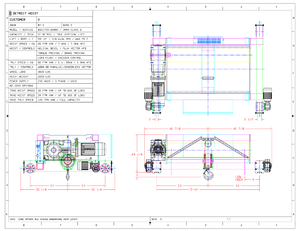

Model DB11T59­-26
Suspension / Mount Top Running Double Girder
Capacity 5.50 Ton
Reeving | Lift 2 PD | 59'­5"
Hoist Lift Speed 26.00 FPM Max
Hoist Motor 7.5 KW
Hoist Control Closed­loop vector VFD control
Trolley Speed 80.00 FPM Max
Trolley Motor 2 @ .55 kw
Trolley Control Sensorless vector VFD control
Power Supply Electric | 230VAC­3PH­60HZ +­5%
CMAA Class | Atmosphere | Location Class D | Standard | Weather Resistant
Trolley Gauge 66.0000"
Approximate Weight 2200.00 lbs

MODEL FEATURES

4­pole, AC squirrel cage, inverter rated hoist motor with brake.
True vertical lift and dual 4­pole, AC squirrel cage inverter rated trolley motors.
Rubber bumpers and drop lugs / rail sweeps.
Premium grade graphite ductile iron wheels and sheaves for durability.
UL508A c UL us listed industrial control panel with CSA Type 4, 4X enclosure.
Hoist ­ closed loop flux vector drive with motor & brake proving and load floating at 0 hz.
Hoist ­ 0 hz speed control for precise positioning and stopping without motor brake fatigue.
Hoist ­ 100% dynamic braking with resistor or regenerative converter.
Hoist ­ over­weight protection through frequency drive with 3% accuracy.
Trolley ­ open loop frequency drive with dynamic braking.
Motor overload protection through frequency drives.
Adjustable upper and lower electronic encoder limits and secondary upper limit.
110 VAC control voltage (optional 24 VDC pushbutton control voltage).
90 Hz hoist speed up to 30% of rated load enable by request.
