Product Overview

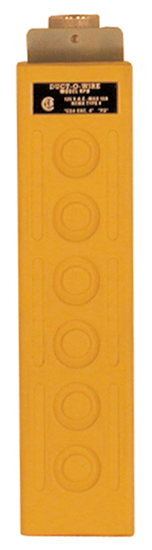

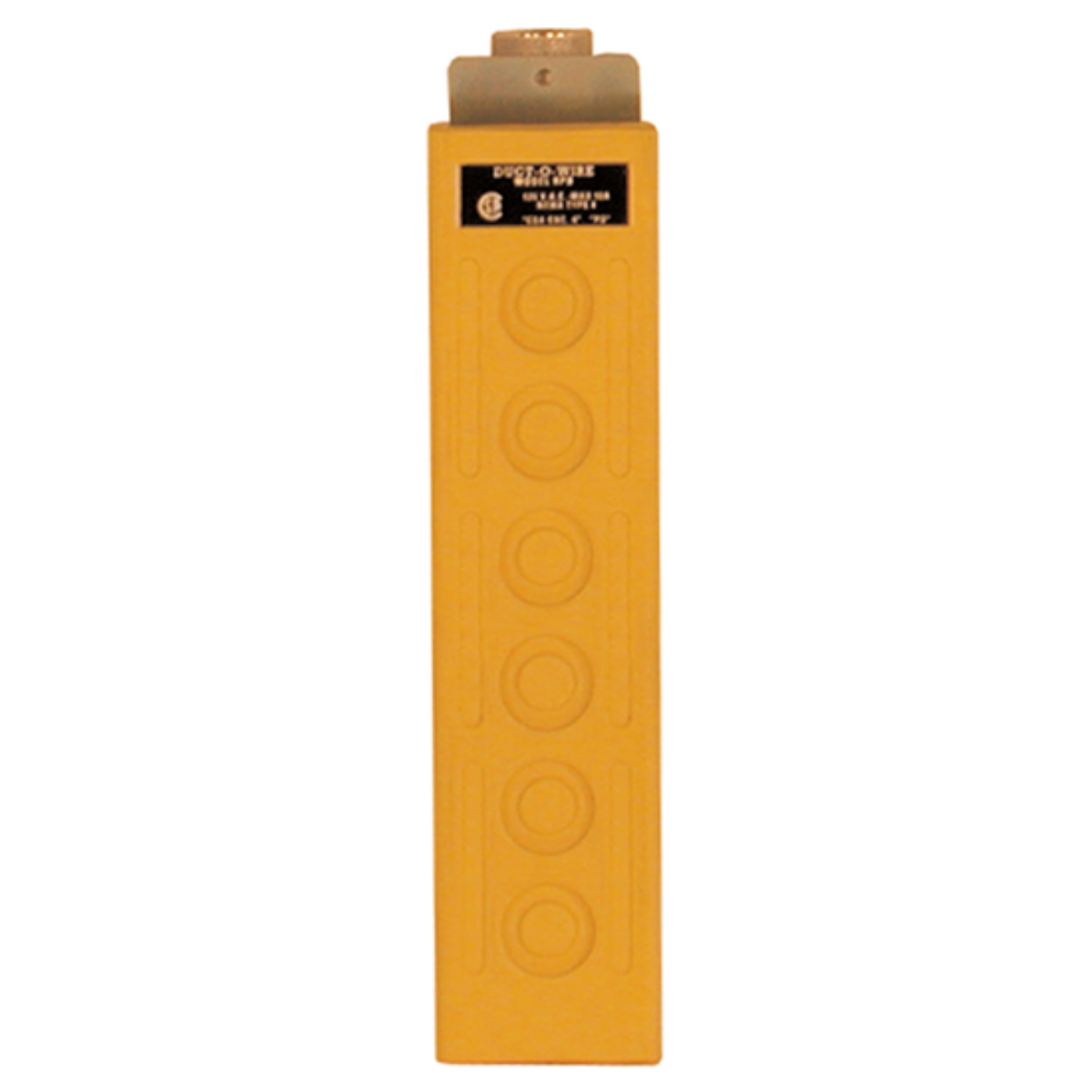

Duct-O-Wire RPB-3-2A Pushbutton Pendant Station
The Duct-O-Wire RPB-3-2A is part of the RPB Series of industrial pushbutton pendant stations designed for the control of overhead cranes, hoists, and other industrial equipment. This station has been engineered with rugged environments in mind, the RPB-3-2A features a steel-reinforced nitrile rubber enclosure that ensures long-lasting durability and resistance to harsh elements. Its tongue-and-groove cover plate design provides the needed protection for internal components and pushbuttons, making it ideal for either indoor and outdoor applications.
Supporting both one-speed and two-speed control configurations, the RPB-3-2A can be customized to meet a wide range of application requirements. It accommodates momentary and maintained switches and is compatible with a comprehensive selection of accessories, including wire mesh grips for cable strain relief, nameplate inserts, and replacement contact blocks. Designed to meet NEMA 1, 3, 4, and 12 standards, this model is UL-listed and CSA-approved, ensuring compliance and safety across a variety of industrial settings.
Product Specification Sheet
Product NameDuct-O-Wire RPB-3-2A Pushbutton Pendant Station
Manufacturer Duct-O-Wire
Part Number RPB-3-2A
Control Type One-Speed and Two-Speed Operation
Switch Options Momentary and Maintained
Enclosure Material Steel-Reinforced, Nitrile Rubber Coated
Dimensions (W x D x L) 3.0 in. x 2.5 in. x 12.375 in.
Cable Range 0.437 in. to 0.740 in.
Weight (Approx.) 3.5 lbs
Ratings NEMA 1, 3, 4, 12
Certifications UL Listed, CSA Approved
Standard Features : Durable rubber housing, tongue-and-groove cover plate, ergonomic pushbuttons
Accessories Available Wire mesh grips, replacement contact blocks, nameplate inserts
Applications Overhead crane control, hoist operation, industrial machinery control
Additional Notes : Product image may include optional features and accessories not included with standard models. Consult catalog or sales rep for configuration details.
