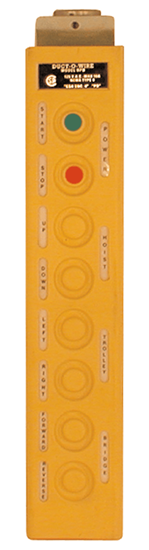

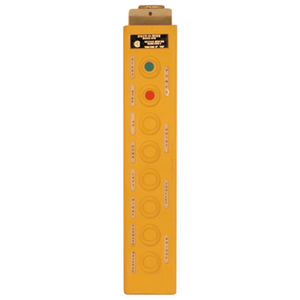

Duct-O-Wire RPB-4-2A-E L Series Pendant Station: Customizable, Durable Crane Control Solution
Duct-O-Wire's L Series Pendant Stations are robust control solutions designed to fit a variety of material handling systems, particularly cranes. Available in four-, six-, eight-, and ten-button configurations, these pendant stations cater to everything from simple two-motion cranes to complex three-motion cranes with multiple switches and accessories. The L Series offers a versatile solution for a wide range of applications, ensuring both durability and flexibility in operation. Each pendant station is constructed from nitrile rubber-coated steel, offering enhanced resistance to wear and environmental elements. Customers can select either the "Slim" or "Deep" profile options based on their needs, with the "Deep" profile providing extra space for wiring and accessories.
These pendant stations can be purchased as fully assembled units with pre-installed switches and accessories, or customers may opt for a build-your-own station approach by purchasing individual components. Designed for easy integration, the L Series Pendant Stations are an excellent choice for industries requiring reliable, rugged, and customizable crane control stations.
Product Specification Sheet for Duct-O-Wire RPB-4-2A-E L Series Pendant Station:
- Enclosure Type: Nitrile Rubber Coated Steel Construction
- Width: 3.00 in.
- Depth: 2.5 in.
- Length: 15.75 in.
- Cable Range: .640 to .875 in.
- Approx. Ship Weight: 4.25 lbs.
- NEMA Rating: NEMA 1, 3, 4, and 12
- Construction: Steel Reinforced Nitrile Rubber
- Cover Plate: Tongue and Groove design to protect buttons from the elements
- Additional Features:
- Wire mesh grips are available for extra strain relief.
- A large variety of accessory switches
- Certifications: UL Listed, CSA Approved
- Customization: Available in "Slim" and "Deep" profiles for different wiring and accessory needs
- Assembly Options:
- Pre-assembled with switches and accessories
- Build-your-own station using individual components
- Product Variants: Available in four, six, eight, and ten-button configurations to fit a wide range of applications
- Optional Features: Product images may include optional features not included in standard models (consult catalog for details).
