Product Overview

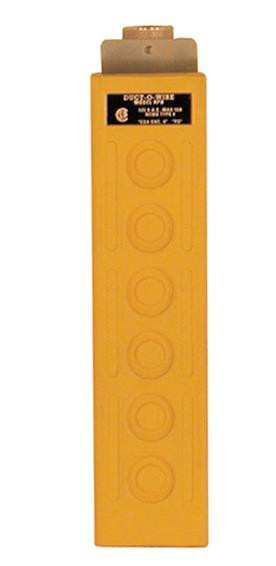

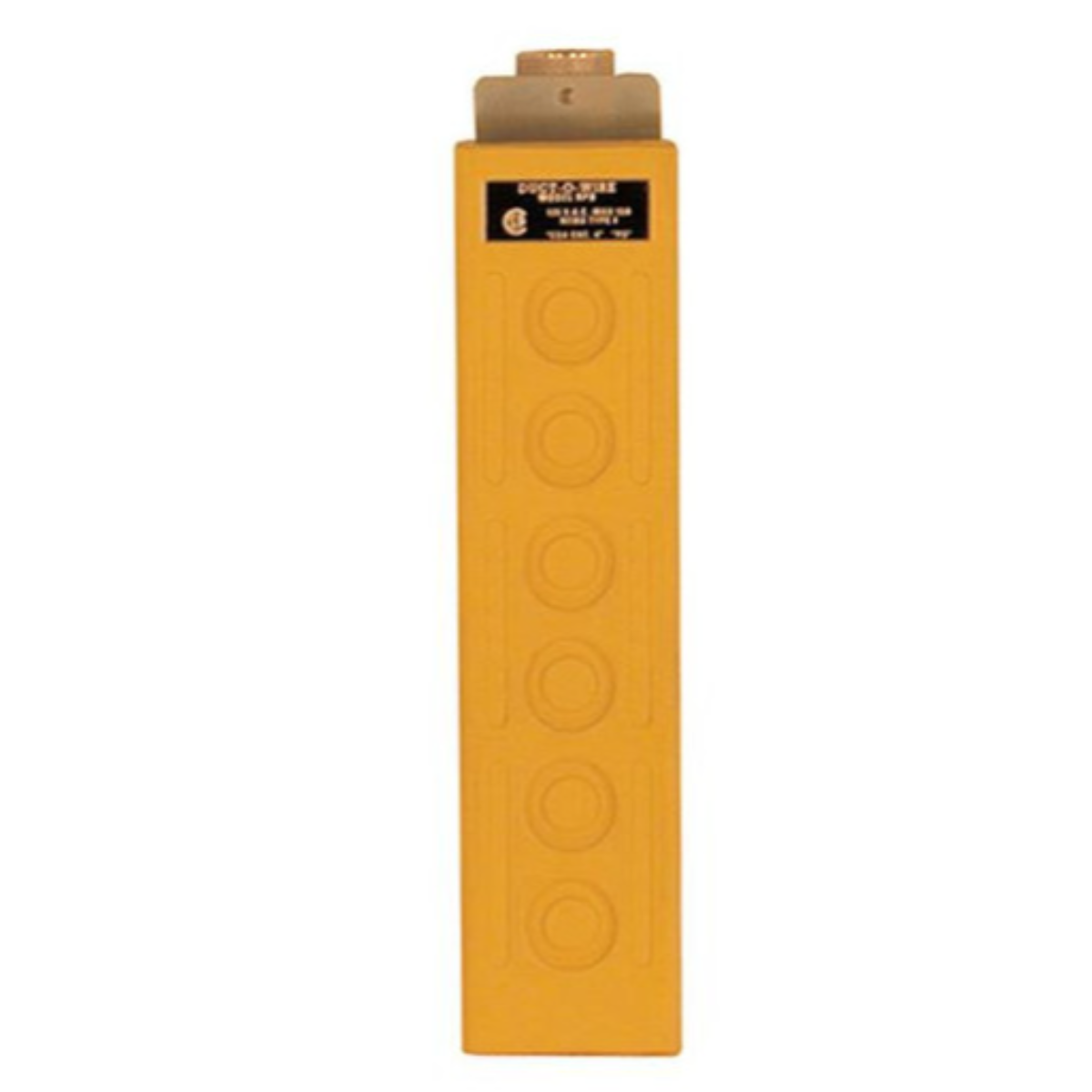

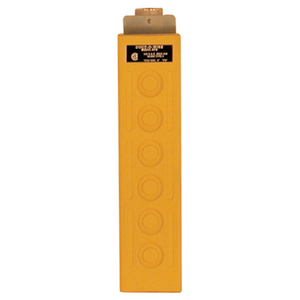

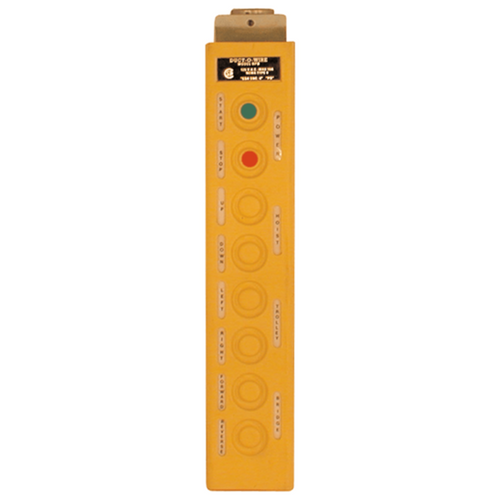

Duct-O-Wire RPB Series Pushbutton Pendant Stations
One-Speed and Two-Speed Control Models + Accessories
Product Overview
The RPB Series from Duct-O-Wire offers rugged, ergonomic, and highly reliable pushbutton pendant stations. Designed for industrial applications, these pendants feature steel-reinforced nitrile rubber construction to withstand harsh environments. Suitable for controlling hoists and cranes, the RPB Series includes models with both one-speed and two-speed operation, along with a comprehensive selection of momentary and maintained switches, accessories, and replacement parts.
Key Features
- Durable Construction: Steel-reinforced, nitrile rubber-coated steel enclosure for maximum durability.
- Weather Resistance: Tongue-and-groove cover plate protects buttons from dust, water, and other environmental factors.
- Flexible Control Options: Available with one-speed and two-speed functionality.
- Switch Types: Supports momentary and maintained contact switches.
- Cable Entry: Wire mesh grips are available for added strain relief and secure cable attachment.
- Certifications: UL Listed and CSA Approved.
- Mounting Flexibility: Accessories available for mounting and customization.
Specifications
SpecificationDetails
Enclosure Type Nitrile Rubber Coated Steel
Width 3.00 in.
Depth 2.50 in.
Length 12.375 in.
Cable Range 0.437 to 0.740 in.
Approximate Shipping Weight : 3.50 lbs.
Environmental Ratings NEMA 1, 3, 4, 12
Certifications UL Listed, CSA Approved
Strain Relief Optional Wire Mesh Grips Available
Accessories and Options
- Wire mesh grips for enhanced strain relief
- Accessory switches (momentary, maintained, pilot lights, selector switches, etc.)
- Replacement button inserts and contact blocks
- Optional nameplate labels and switch identification tags
