Duct-O-Wire BW Series Pendant Station, 2-Button, Single Speed

Write a Review
$136.00
$85.00
(You save $51.00 )
SKU: BW92Y
Availability: Subject to Availability
Weight: 1.00 LBS
Width: 2.13 (in)
Height: 4.25 (in)
Depth: 2.50 (in)
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Duct-O-Wire BW Series Pendant Station, 2-Button, Single Speed

Duct-O-Wire BW Series Pendant Station, 2-Button, Single Speed

$136.00
$85.00
(You save $51.00 )

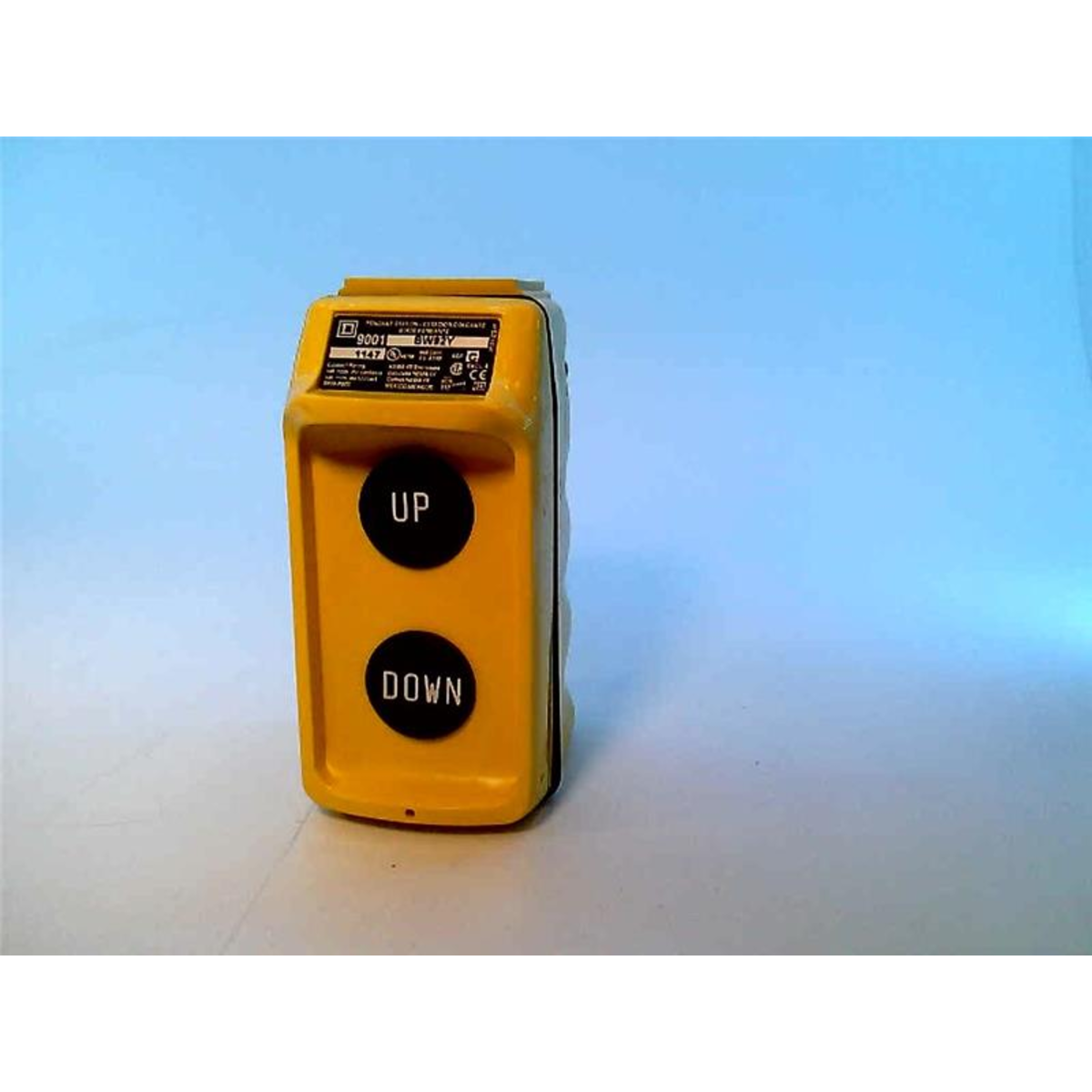

The Duct-O-Wire BW92Y is a compact, single speed up or down pendant built on the Square D BW platform, giving you a straightforward hoist control option for simple lifting and jogging applications. Two mechanically interlocked push buttons prevent both contacts from closing at the same time, so operators cannot accidentally command up and down together, which adds a helpful layer of built in safety.

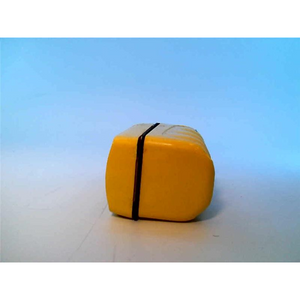

This pendant is molded from bright yellow, high impact thermoplastic and is shaped to sit comfortably in one hand, making it easy to operate through repeated use. It is rated for outdoor use and general washdown adjacent environments, so it holds up well in a variety of industrial settings, including building cranes, jogging applications on conveyor systems, and general hoisting duty where you do not need multi motion control.

The BW92Y is a reliable choice for facilities that need simple, dependable up or down control rather than a full multi motion pendant. Its compact size and mechanically interlocked buttons make it a safe, easy to use option for operators of all experience levels.


Product Info:
• Button configuration: 2 button, mechanically interlocked, up or down
• Speed: single speed
• Contact rating: 600 VAC, 5 amps, normally open contacts
• Enclosure material: high impact yellow thermoplastic
• Enclosure rating: NEMA 1, 3, 3R, 4, 4X
• Certifications: UL Listed, CSA Approved
• Included: hanger bracket and seal kit

If you need a simple, dependable up or down pendant for hoisting or jogging applications, the Duct-O-Wire BW92Y is a proven, cost effective solution. Its mechanically interlocked design and rugged thermoplastic housing make it a safe and reliable addition to your material handling equipment.



The Duct-O-Wire Company (the Company) warrants items it sells against defects in material and/or workmanship for one year from the date of shipment, with its sole liability being to repair at its factory or replace any material returned within that year, excluding defects resulting from improper installation or use; statements, descriptions, or specifications in the Company's literature are solely for identifying items and impart no warranty of any kind, and the Company shall not be liable for economic loss, property damage, or physical injury sustained by the purchaser or any third party, with no other express or implied warranties of merchantability, performance, or fitness for intended use, and this warranty applying only to material manufactured by the Company that comprises a complete system. Based on the customer's clearly written purchase order, the Company will process and ship orders per the customer's instructions and is not responsible for the customer's mistakes or omissions in ordering; list prices and discounts are subject to change without notice, and quoted prices are honored for 30 days from the date of the written quotation unless otherwise stated. Orders may not be altered or cancelled without the Company's prior written approval, and the customer may be responsible for cancellation charges; material may not be returned for credit without the Company's prior written consent, returned material is subject to a 20% minimum restocking charge and must be in resalable condition, all returns must be shipped prepaid, and custom parts are non-refundable. Any claims for material shortages or damages must be received by the Company in writing within 10 days of shipment and accompanied by copies of the bill of lading and packing slip, and payment terms are Net 30 Days, with a service charge of 1-1/2% of the net balance applied to any amount extending beyond 30 days past due.
