Product Overview

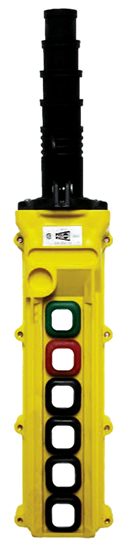

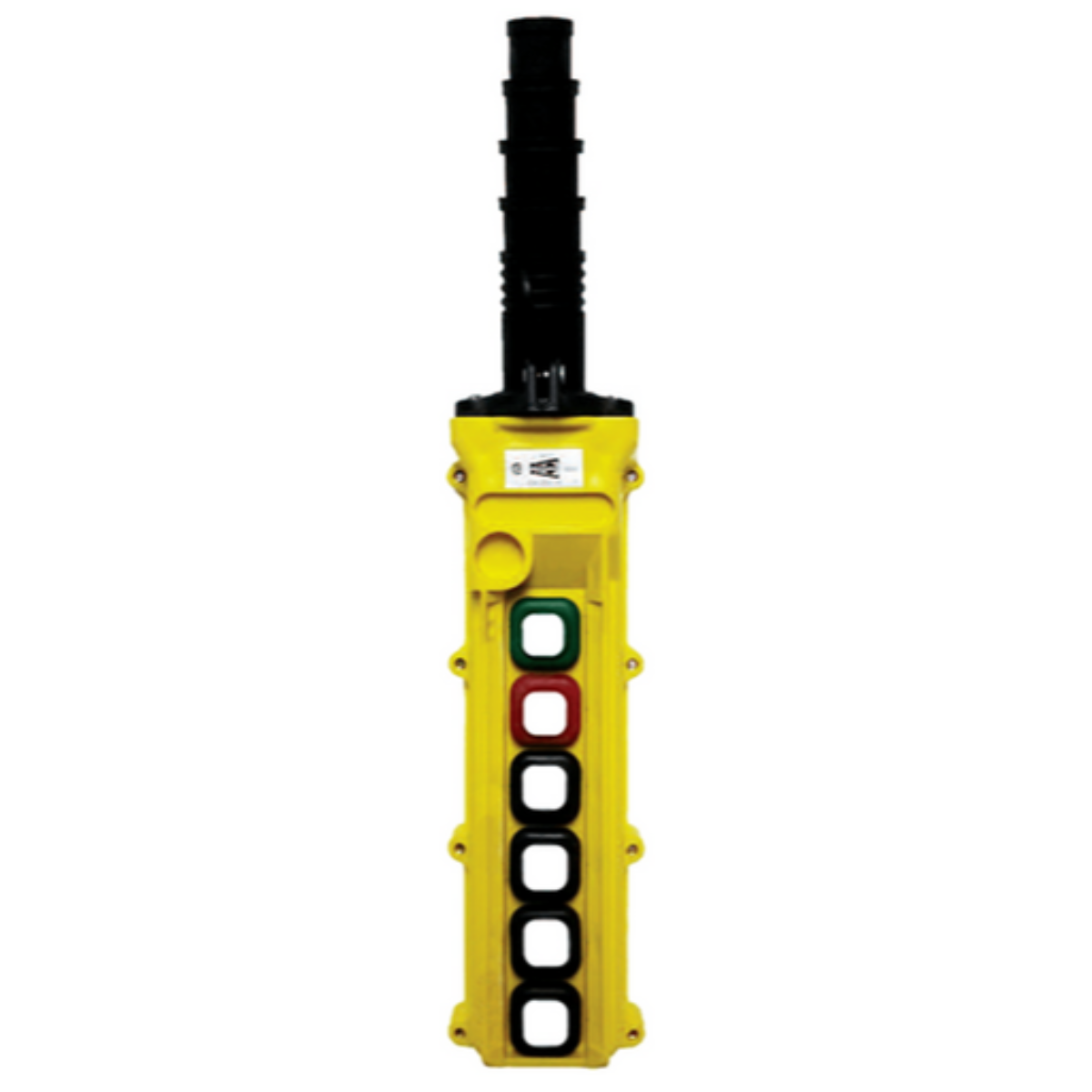

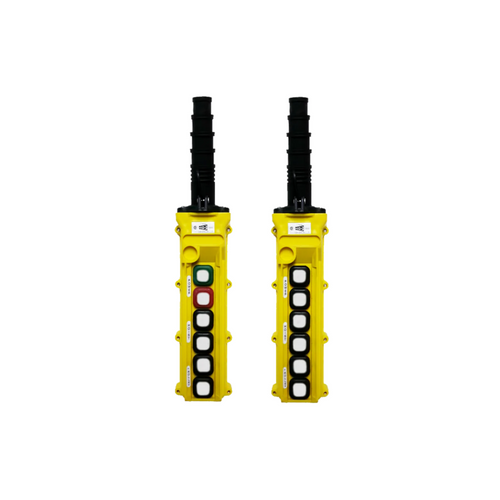

Duct-O-Wire L6-S-1 Pendant Push Button Station – L Series
Product Description:
The Duct-O-Wire L6-S-1 is a premium pendant push button station engineered for precise, multi-motion control in demanding industrial environments. Part of the trusted L Series, the L6-S-1 features a three-motion, single-speed configuration housed in a slim-profile, ergonomic enclosure, making it ideal for overhead cranes, hoists, conveyors, and other industrial equipment.
Designed with both performance and durability in mind, the L6-S-1 offers operators intuitive and reliable control. This pendant features three clearly labeled push buttons, each dedicated to a specific motion, providing accurate and responsive handling of complex tasks.
Constructed from rugged polypropylene, the L6-S-1 is built to endure harsh operating conditions. It complies with NEMA 1, 3, 4, 4X, and 12 standards, making it resistant to dust, water, corrosion, and chemical exposure. The replaceable neoprene boots, strain relief hook, and cable clamp set enhance the unit's longevity and field serviceability.
The station includes a multi-step cord grip compatible with 4 to 24 conductor cables and supports installation flexibility with optional deep back profiles for extended wiring space. The slim back profile (S) in this model ensures a compact, ergonomic fit for enhanced user comfort.
Certified to CSA (150928) and tested to both CSA and UL standards, the L6-S-1 meets stringent safety and performance benchmarks. Whether used in light-duty or rugged industrial operations, this pendant station ensures consistent control and operational efficiency.
Key Features & Specifications:
- Model: L6-S-1
- Design: Slim back profile (S) with 3 motion buttons
- Speed Options: Single-Speed (this model), with availability in Two-Speed and Three-Speed variants
- Cord Grip: Multi-step grip supports 4 to 24 conductor cable
- Material: Durable polypropylene housing
- NEMA Ratings: 1, 3, 4, 4X, and 12
- Approvals: CSA Approved (150928), tested to CSA and UL standards
- Accessories: Replaceable neoprene boots, strain relief hook, cable clamp set
- Features: Easy-to-read legend plates, a broad selection of accessory switches
- Installation: Simple mounting with lightweight, compact construction
