Product Overview

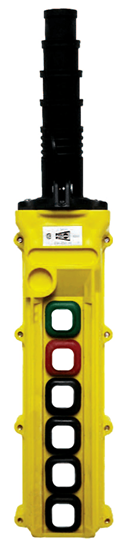

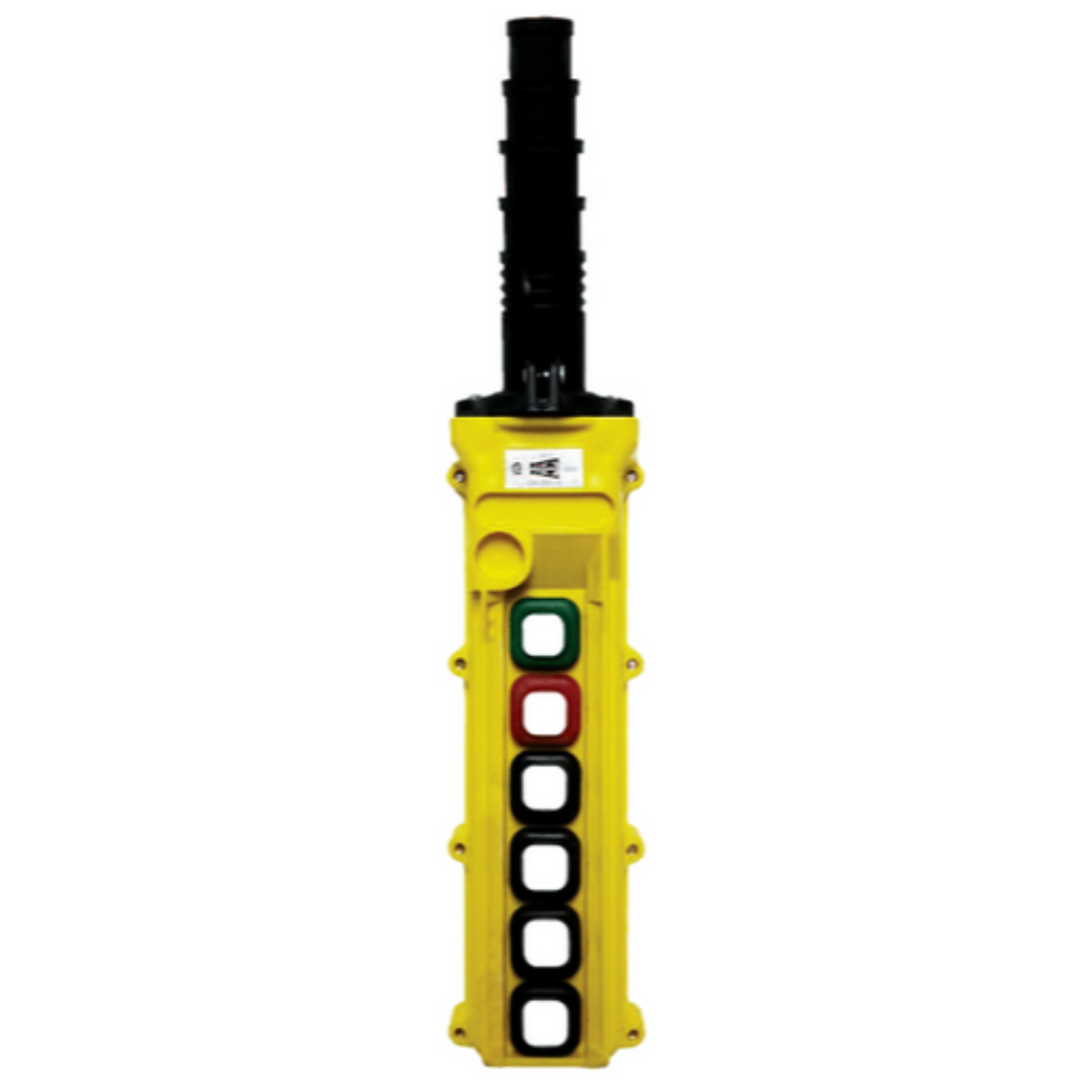

The Duct-O-Wire L6-S-1M Pendant Push Button Station is a compact, rugged, and user-friendly control solution designed to manage multi-function machinery with precision and reliability. Part of the trusted Duct-O-Wire L Series, this pendant station features a 6-button shallow enclosure with a three-motion control layout, ideal for applications requiring independent control over lift, lower, and traverse functions.
Engineered for demanding industrial environments, the L6-S-1M offers a slim back profile for an ergonomic grip and space-efficient installation. Constructed from durable polypropylene and equipped with replaceable neoprene boots, it can handle the harsh conditions, including dust, moisture, and chemicals. It meets NEMA 1, 3, 4, 4X, and 12 enclosure standards, ensuring protection and performance in both indoor and outdoor environments.
Installation is simplified with a multi-step cord grip supporting a wide cable range and a strain relief hook with a cable clamp set for secure mounting. Whether used on overhead cranes, hoists, or conveyor systems, the L6-S-1M delivers dependable and intuitive control in a compact, lightweight design.
Specifications
- Model: L6-S-1M
- Enclosure Type: 6-Button Shallow
- Dimensions:
- Width: 3.13 in.
- Depth: 2.00 in.
- Length: 10.50 in.
- Cable Range: 0.640 to 0.890 in.
- Shipping Weight: Approx. 0.74 lbs
- Construction Material: Polypropylene
- Ingress Protection Ratings: NEMA 1, 3, 4, 4X, 12
- Cord Grip: Multi-step, supports 4 to 24 conductor cables
- Mounting: Includes strain relief hook and cable clamp set
- Boots: Replaceable neoprene
- Legend Plates: Easy-to-read labeling for intuitive operation
- Certifications: UL Listed, CSA Approved
